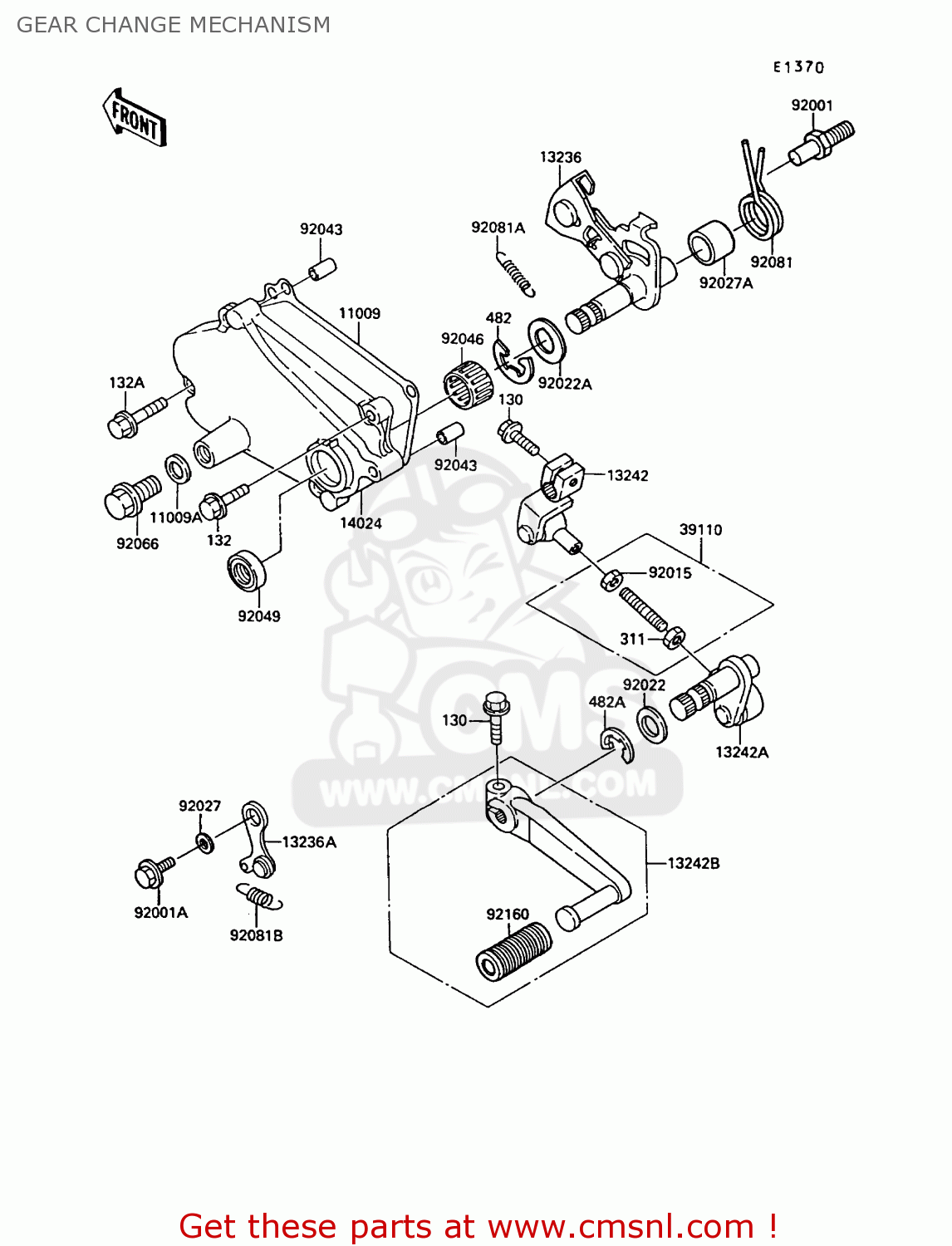

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130P0620
ref: 130

BOLT-FLANGED,6X20

€ 2.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

311

311J0600
ref: 311

NUT-HEX

€ 1.00

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

482A

482L0100
ref: 482A

CIRCLIP-TYPE-E,10MM

€ 0.50

11009

110091710
ref: 11009

GASKET,CHANGE COVER (MCA)

€ 3.50

11009A

92065058
ref: 11009A

GASKET, 10,5X16X1 (NAS)

€ 2.50

13236

132361110
ref: 13236

LEVER-COMP,CHANGE SHA

€ 32.00

13236A

132361170
ref: 13236A

LEVER-COMP,POSITION

€ 10.50

13242

132421190
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 21.00

13242A

132421247
ref: 13242A

LEVER-ASSY-CHANGE

€ 22.50

13242B

132421250
ref: 13242B

LEVER-ASSY-CHANGE,PED

€ 25.00

14024

140241593
ref: 14024

COVER,CHANGE

€ 35.50

39110

391101079
ref: 39110

ROD-ASSY-TIE

€ 5.50

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92001A

920011516
ref: 92001A

BOLT,W/WASHER,6X12

€ 3.00

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221236
ref: 92022

WASHER,12.2X20X1.6

€ 2.50

92022A

920221628
ref: 92022A

WASHER,CHANGE SHAFT

€ 4.50

92027

920271778
ref: 92027

COLLAR,6X10X2.2

€ 3.50

92027A

92027189
ref: 92027A

COLLAR,13X18X11.5

€ 6.00

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92046

920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 19.50

92049

92051005A
ref: 92049

OIL SEAL,TB13225.5

€ 5.50

92066

920661033
ref: 92066

PLUG,DRAIN,10X14

€ 4.00

92081

920811129
ref: 92081

SPRING,TENTION

€ 6.50

92081A

920811708
ref: 92081A

SPRING,PAWL RETURN

€ 4.00

92081B

920811709
ref: 92081B

SPRING,GEAR POSITION

€ 2.00

92160

921601108
ref: 92160

DAMPER,CHANGE PEDAL

€ 5.50
