RADIATOR
KR250B2 KR1 1989 EUROPE UK FR GR IT

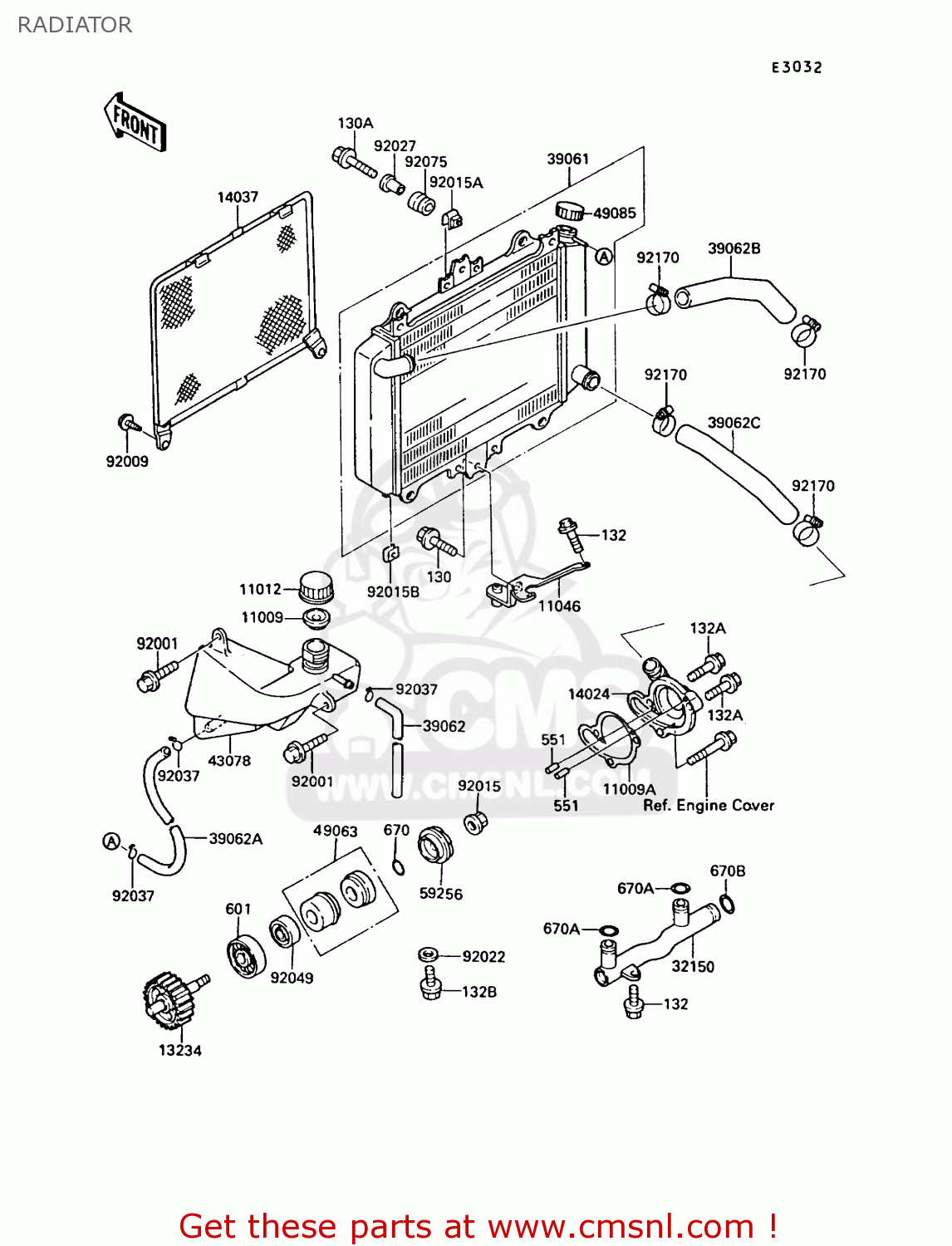

Radiator diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
RADIATOR KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0810
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
€ 0.50
601
601B6201
ref: 601
BEARING-BALL,#6201C3
€ 7.00
670
670B1506
ref: 670
O RING,6MM
€ 1.00
670A
670B2014
ref: 670A
O RING,14MM
€ 1.00
670B
670B2016
ref: 670B
O RING,16MM
€ 1.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091713
ref: 11009A
GASKET,PUMP COVER (NAS)
€ 3.00
11012
110121084
ref: 11012
CAP
€ 1.50
11046
110461034
ref: 11046
BRACKET
€ 15.00
13234
132341080
ref: 13234
SHAFT-COMP,WATER PUMP
€ 68.00
14024
140241595
ref: 14024
COVER,PUMP
€ 15.50
14037
140371108
ref: 14037
SCREEN
€ 69.50
32150
321021832
ref: 32150
PIPE
€ 45.50
39061
390611116
ref: 39061
RADIATOR-ASSY
€ 423.50
39062
390621110
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621245
ref: 39062A
HOSE-COOLING,5.5X10.5
€ 25.00
39062B
390621272
ref: 39062B
HOSE-COOLING,HEAD-RAD
€ 13.50
39062C
390621273
ref: 39062C
HOSE-COOLING,RADIATOR
€ 12.00
43078
430781092
ref: 43078
RESERVOIR
€ 24.00
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
49085
490851057
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59256
592561063
ref: 59256
IMPELLER
€ 23.00
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92009
920091436
ref: 92009
SCREW
€ 2.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151487
ref: 92015A
NUT
€ 3.00
92015B
920151758
ref: 92015B
NUT
€ 4.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92027
920271651
ref: 92027
COLLAR
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92049
920491259
ref: 92049
SEAL-OIL,SC12 28.555
€ 5.50
92075
92075277
ref: 92075
DAMPER
€ 1.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
