CARBURETOR PARTS
KR250B2 KR1 1989 EUROPE UK FR GR IT

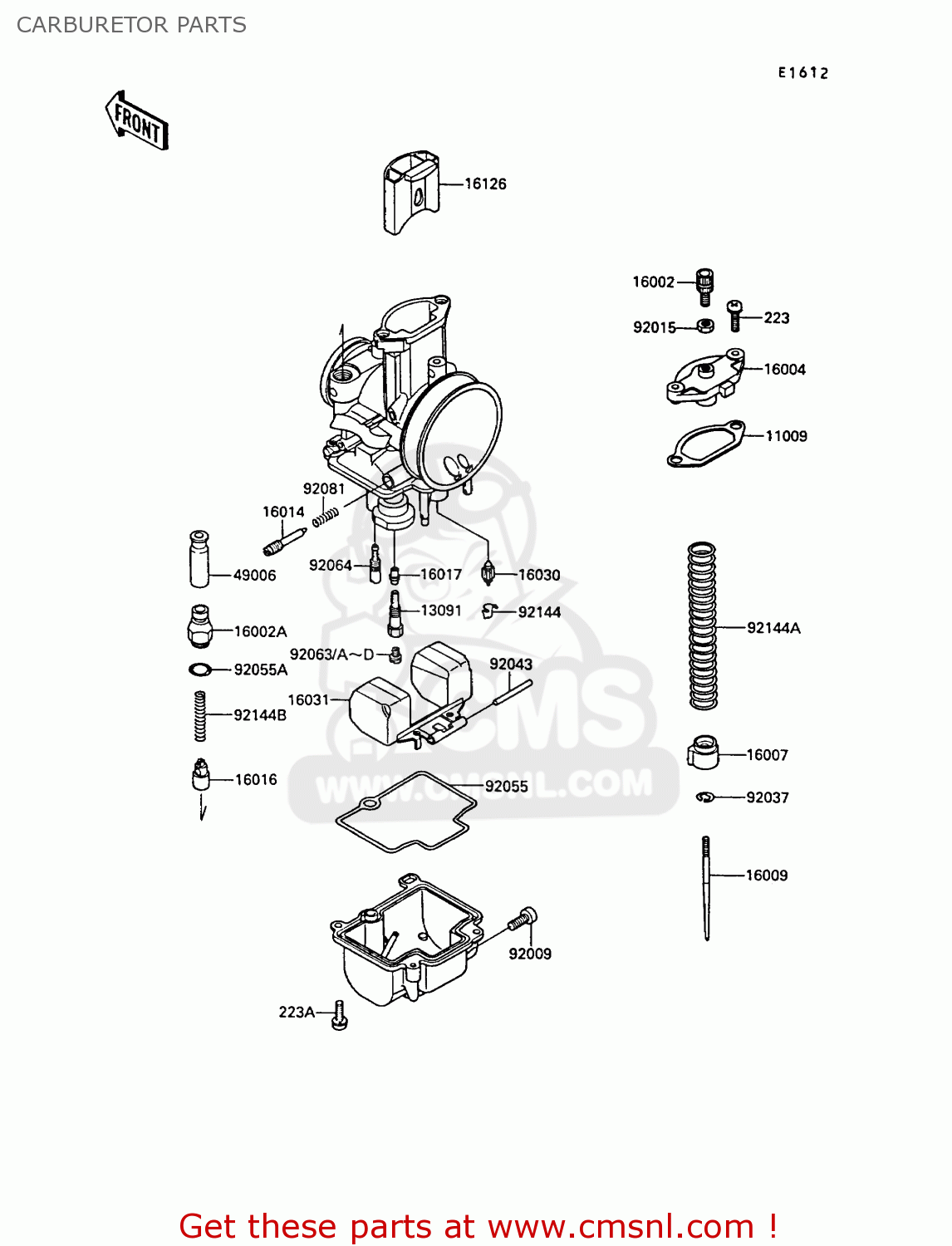

Carburetor parts diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
CARBURETOR PARTS KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
223
223C0414
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
11009
110091759
ref: 11009
GASKET,MIXING CHAMBER (NAS)
€ 8.50
13091
130911577
ref: 13091
HOLDER,NEEDLE JET
€ 15.50
16002
160021056
ref: 16002
ADJUSTER-CABLE
€ 16.00
16002A
160021058
ref: 16002A
ADJUSTER-CABLE,STARTE
€ 5.50
16004
160041065
ref: 16004
CAP-CHAMBER,MIXING
€ 64.00
16007
160071155
ref: 16007
SEAT-SPRING,THROTTLE
€ 6.00
16009
160091476
ref: 16009
NEEDLE-JET,N68A
€ 19.50
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161076
ref: 16016
PLUNGER,STARTER
€ 15.00
16017
160171285
ref: 16017
JET-NEEDLE
€ 33.00
16030
160301064
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311065
ref: 16031
FLOAT
€ 39.00
16126
161261213
ref: 16126
VALVE,THROTTLE
€ 128.50
49006
490061247
ref: 49006
BOOT, CABLE ADJUSTER
€ 3.00
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92015
920151574
ref: 92015
NUT,CABLE ADJUST LOCK
€ 4.50
92037
920371401
ref: 92037
CLAMP,JET NEEDLE
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551389
ref: 92055
RING-O,FLOAT CHAMBER
€ 6.50
92055A
920551416
ref: 92055A
RING-O,STARTER PLUNGE
€ 3.00
92063
920631013
ref: 92063
MAIN JET,#140
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641139
ref: 92064
JET-PILOT,#38
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92144
921441178
ref: 92144
SPRING,FLOAT
€ 5.50
92144A
921441353
ref: 92144A
SPRING,THROTTLE VALVE
€ 6.50
92144B
921441354
ref: 92144B
SPRING,STARTER PLUNGE
€ 5.50
