TRANSMISSION
KLX250H7F KLX250S 2007 USA CANADA

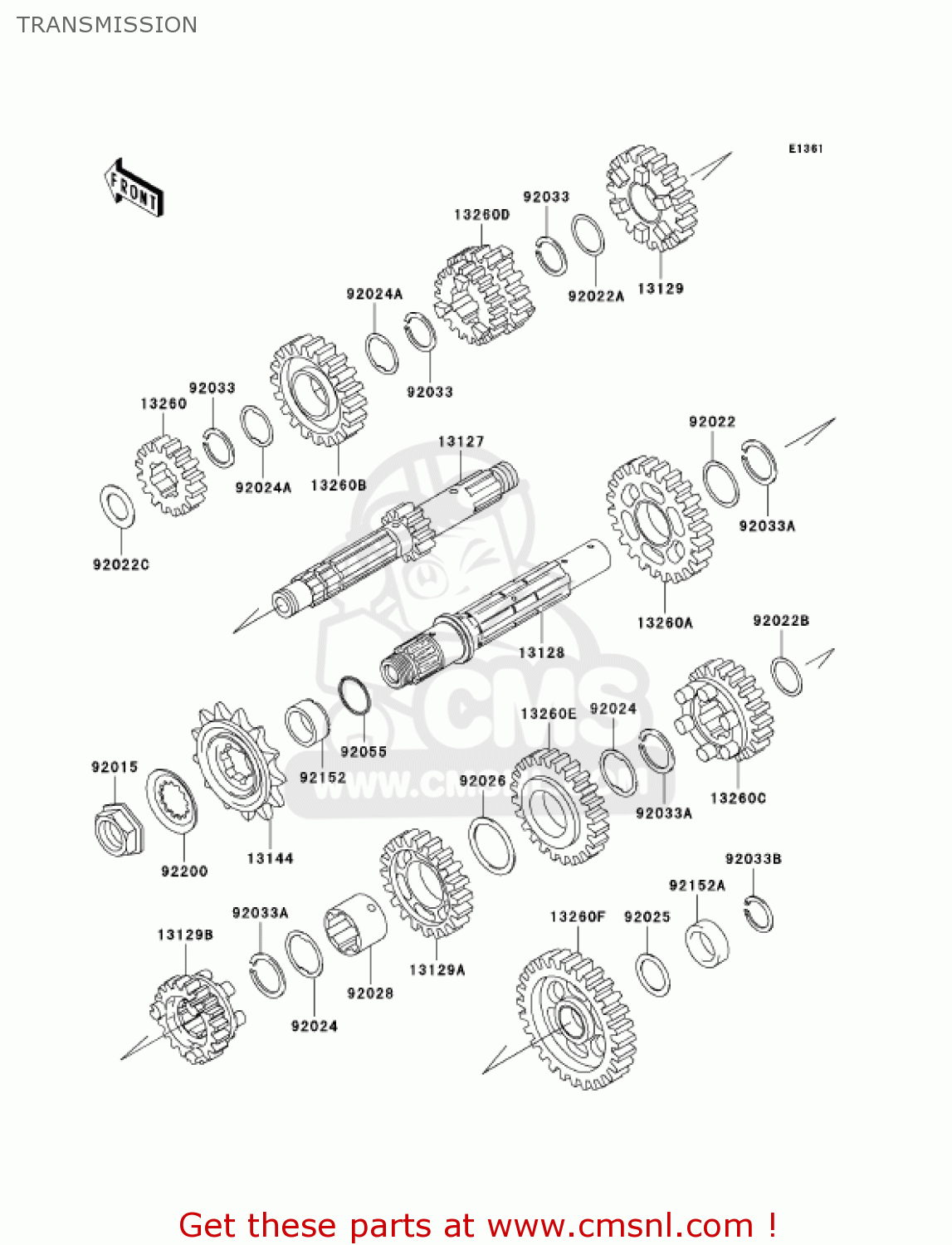

Transmission diagram KLX250H7F KLX250S 2007 USA CANADA
TRANSMISSION KLX250H7F KLX250S 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271223
ref: 13127
SHAFT-TRANSMISSION IN
€ 179.00
13128
131281253
ref: 13128
SHAFT-TRANSMISSION OU
€ 140.00
13129
131291603
ref: 13129
GEAR,INPUT 5TH,20T
€ 107.00
13129A
131291650
ref: 13129A
GEAR,OUTPUT 3RD,27T
€ 106.50
13129B
131291653
ref: 13129B
GEAR,OUTPUT TOP,19T
€ 95.50
13144
131441314
ref: 13144
SPROCKET-OUTPUT,14T
€ 34.00
13260
132601385
ref: 13260
GEAR,INPUT 2ND,15T
€ 107.00
13260A
132601386
ref: 13260A
GEAR,OUTPUT 2ND,30T
€ 106.50
13260B
132601595
ref: 13260B
GEAR,INPUT TOP,21T
€ 59.00
13260C
132601596
ref: 13260C
GEAR,OUTPUT 5TH,21T
€ 107.00
13260D
132601897
ref: 13260D
GEAR,INPUT 3RD&4TH,18
€ 85.50
13260E
132601898
ref: 13260E
GEAR,OUTPUT 4TH,25T
€ 36.00
13260F
132601901
ref: 13260F
GEAR,OUTPUT LOW,30T
€ 61.00
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
92022198
ref: 92022A
WASHER-PLAIN
€ 3.50
92022B
92022252
ref: 92022B
WASHER
€ 4.00
92022C
92022255
ref: 92022C
WASHER
€ 5.50
92024
92024038
ref: 92024
WASHER-LOCK
€ 4.00
92024A
92024039
ref: 92024A
WASHER-LOCK
€ 4.00
92025
920251451
ref: 92025
SHIM,T=0.7
€ 2.00
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92028
920281016
ref: 92028
BUSHING,OUTPUT SHAFT
€ 21.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
92033029
ref: 92033B
CIRCLIP,18MM
€ 6.50
92055
920551293
ref: 92055
RING-O, 21.5MM
€ 3.00
92152
921521350
ref: 92152
COLLAR
€ 20.00
92152A
921521357
ref: 92152A
COLLAR,20X28X8.5
€ 18.50
92200
922001065
ref: 92200
WASHER
€ 4.50
