Genuine KLX Kawasaki Parts delivered quickly!


SWINGARM

KLX250H7F KLX250S 2007 USA CANADA

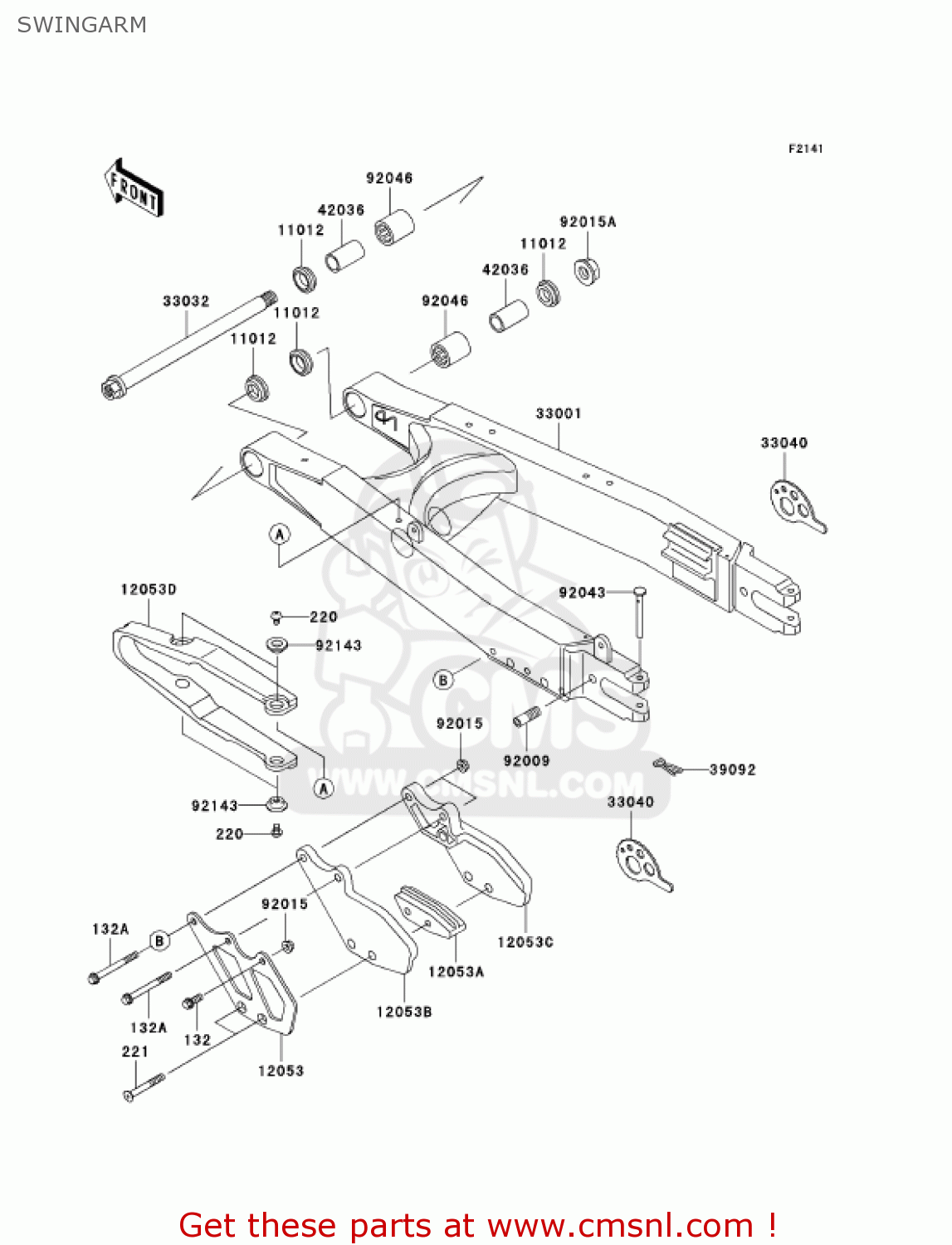

Swingarm diagram KLX250H7F KLX250S 2007 USA CANADA

SWINGARM KLX250H7F KLX250S 2007 USA CANADA
SWINGARM KLX250H7F KLX250S 2007 USA CANADA
SWINGARM KLX250H7F KLX250S 2007 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
132G0660
€ 2.50
220
220B0608
ref: 220
SCREW-PAN HEAD,6X8
220B0608
€ 0.50
221
221B0650
ref: 221
SCREW, CONTRUNK HEAD
221B0650
€ 2.50
11012
110121259
ref: 11012
CAP,SWING ARM
110121259
€ 15.00
12053
120531268
ref: 12053
GUIDE-CHAIN,RR,OUTSID
120531268
€ 25.00
12053A
120531270
ref: 12053A
GUIDE-CHAIN,DRIVE,RR,
120531270
€ 33.00
12053B
120531323
ref: 12053B
GUIDE-CHAIN,DRIVE,RR,
€ 45.00
12053C
120531324
ref: 12053C
GUIDE-CHAIN,DRIVE,RR,
€ 45.00
12053D
120531328
ref: 12053D
GUIDE-CHAIN,DRIVE,FR
120531328
€ 36.00
33001
330011564458
ref: 33001
ARM-COMP-SWING,P.SILV
€ 478.00
33032
330320006
ref: 33032
SHAFT-SWING ARM
330320006
€ 43.00
33040
330401113
ref: 33040
ADJUSTER-CHAIN
330401113
€ 22.00
39092
390920001
ref: 39092
PIN-HAIR
€ 3.00
42036
420361064
ref: 42036
SLEEVE,SWING ARM
420361064
€ 14.50
92009
920091686
ref: 92009
SCREW,SET,10X29
920091686
€ 5.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151407
ref: 92015A
NUT,14MM
920151407
€ 6.50
92043
920431590
ref: 92043
PIN,6X45
920431590
€ 4.00
92046
920461128
ref: 92046
BEARING-NEEDLE,TA2030
920461128
€ 25.00
92143
921431156
ref: 92143
COLLAR
921431156
€ 4.00
