ENGINE MOUNT

KLX250H7F KLX250S 2007 USA CANADA

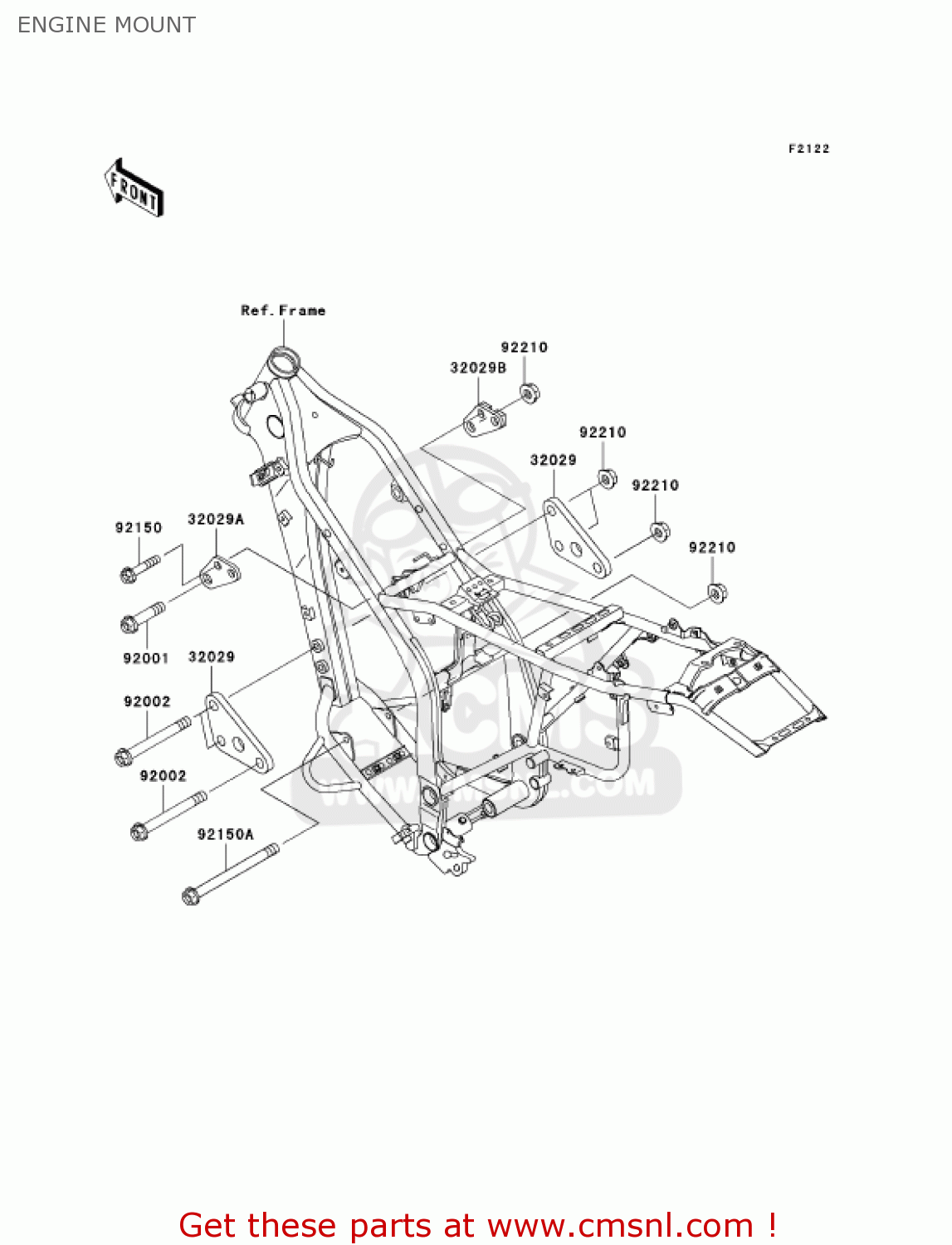

Engine mount diagram KLX250H7F KLX250S 2007 USA CANADA

ENGINE MOUNT KLX250H7F KLX250S 2007 USA CANADA

ENGINE MOUNT KLX250H7F KLX250S 2007 USA CANADA

prices are in EUR

ref

part #

description

quantity

32029

320291855
ref: 32029

BRACKET-ENGINE,FR

€ 15.50

32029A

320291886
ref: 32029A

BRACKET-ENGINE,HEAD,L

€ 5.50

32029B

320291887
ref: 32029B

BRACKET-ENGINE,HEAD,R

€ 5.50

92001

920011499
ref: 92001

BOLT,10X44

€ 3.50

92002

920021674
ref: 92002

BOLT,10X90

€ 12.50

92150

921501168
ref: 92150

BOLT,FLANGED,8X40

€ 2.00

92150A

921501642
ref: 92150A

BOLT,FLANGED,10X120

€ 12.50

92210

922101080
ref: 92210

NUT

€ 7.00
