HEADLIGHT(S)
KLX250H7F KLX250S 2007 USA CANADA

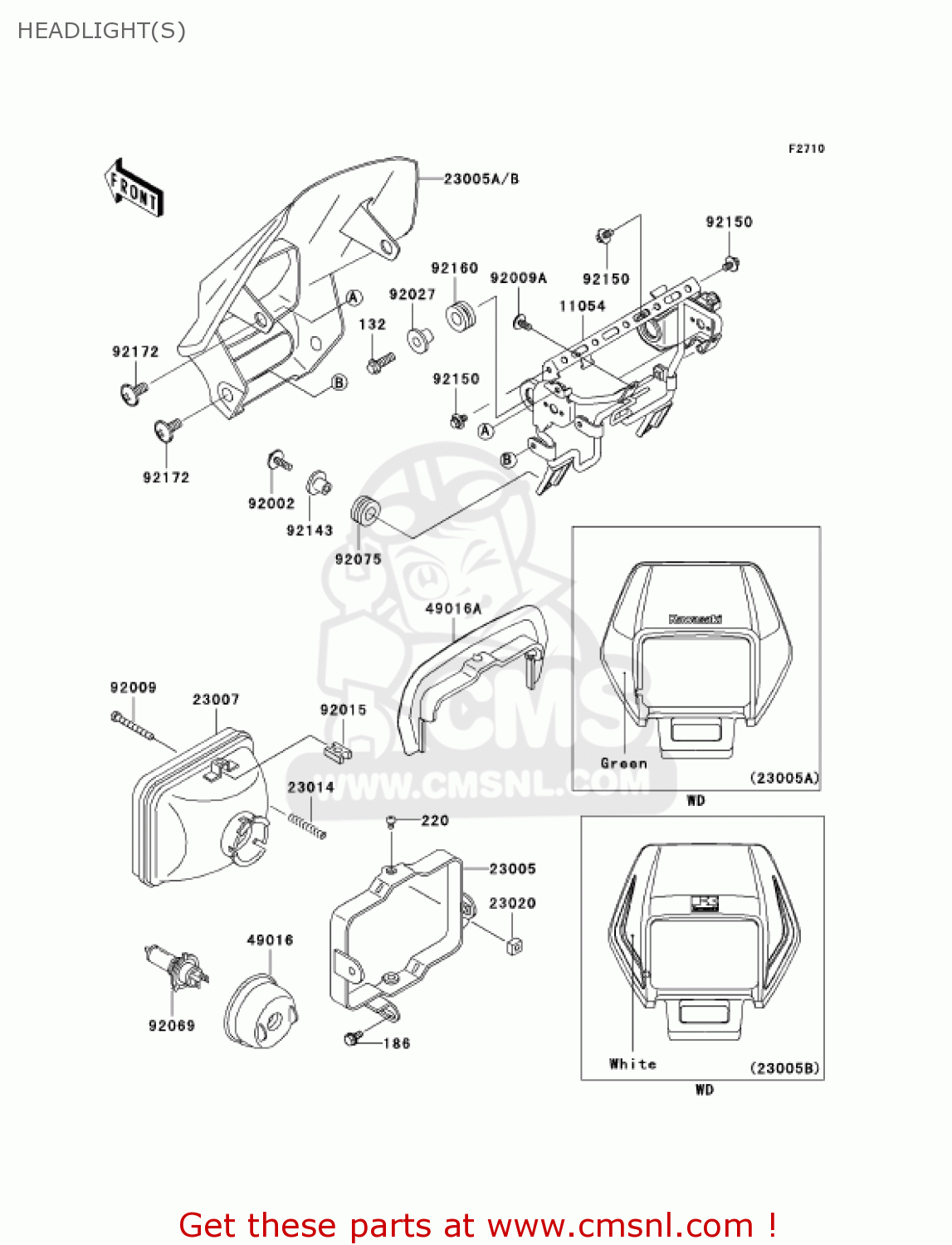

Headlight(s) diagram KLX250H7F KLX250S 2007 USA CANADA
HEADLIGHT(S) KLX250H7F KLX250S 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0825
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
186
186B0614
ref: 186
BOLT-UPSET-WP
€ 0.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
11054
110540054
ref: 11054
BRACKET,HEAD LAMP
€ 77.00
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
€ 27.50
23005B
230055060266
ref: 23005B
BODY-COMP-HEAD LAMP,S
€ 85.00
23007
230071372
ref: 23007
LENS-COMP,HEAD LAMP
€ 83.00
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
€ 2.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
49016A
490161160
ref: 49016A
COVER-SEAL, HEAD LAMP
€ 22.50
92002
920021262
ref: 92002
BOLT,6X22
€ 2.00
92009
920091065
ref: 92009
SCREW,4MM
€ 3.00
92009A
920091286
ref: 92009A
SCREW,6X10
€ 2.50
92015
920151354
ref: 92015
NUT,5MM
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92143
921431353
ref: 92143
COLLAR
€ 5.50
92150
921501435
ref: 92150
BOLT
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
92172
921720004
ref: 92172
SCREW,6X14
€ 2.00
