CYLINDER/PISTON(S)
KLX250H7F KLX250S 2007 USA CANADA

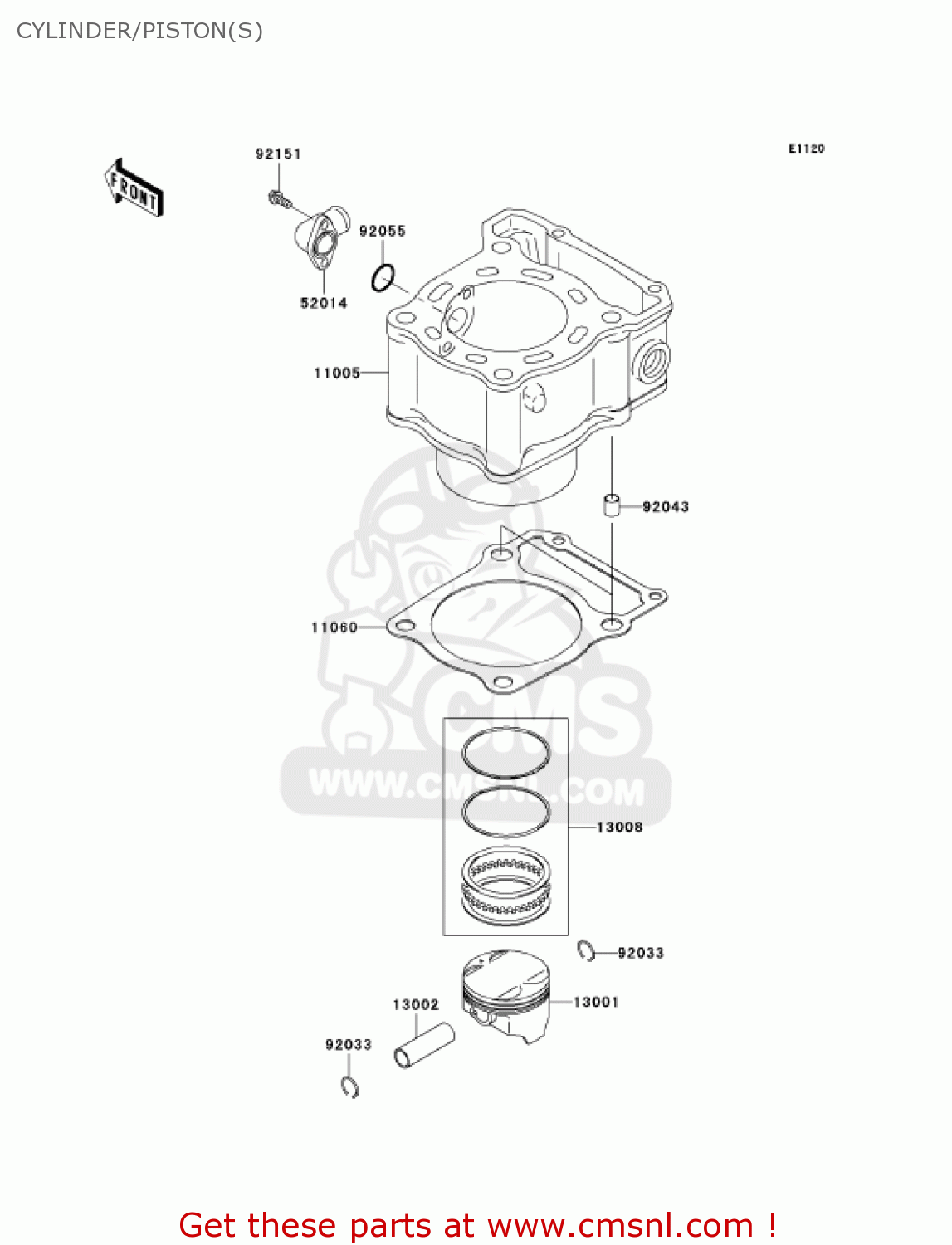

Cylinder/piston(s) diagram KLX250H7F KLX250S 2007 USA CANADA
CYLINDER/PISTON(S) KLX250H7F KLX250S 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11005
110051982
ref: 11005
CYLINDER-ENGINE
€ 572.00
11060
110601740
ref: 11060
GASKET,CYLINDER BASE (NAS)
€ 8.00
13001
130011433
ref: 13001
PISTON-ENGINE
€ 102.00
13002
130021073
ref: 13002
PIN-PISTON
€ 19.50
13008
130081149
ref: 13008
RING-SET-PISTON
€ 54.50
52014
520141084
ref: 52014
ELBOW
€ 25.50
92033
920331054
ref: 92033
CIRCLIP,PISTON PIN
€ 2.00
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92055
92055055
ref: 92055
'0'RING
€ 2.50
92151
921511423
ref: 92151
BOLT
€ 1.00
