CARBURETOR
KLX250H7F KLX250S 2007 USA CANADA

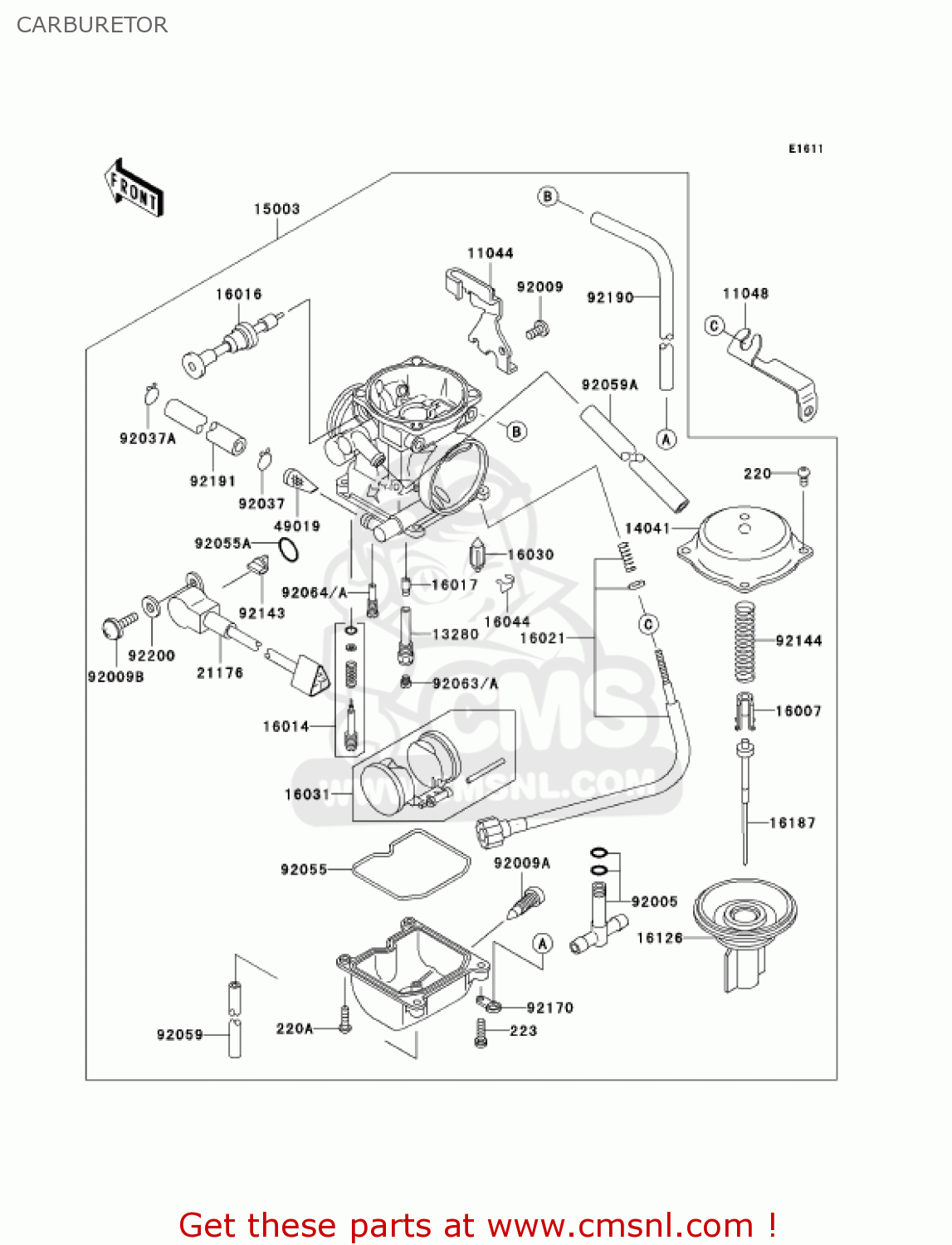

Carburetor diagram KLX250H7F KLX250S 2007 USA CANADA
CARBURETOR KLX250H7F KLX250S 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
11044
110441353
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
11048
110481818
ref: 11048
BRACKET
€ 4.00
13280
132801104
ref: 13280
HOLDER,NEEDLE JET
€ 19.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
15003
150030081
ref: 15003
CARBURETOR-ASSY,CVK34
€ 346.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160160013
ref: 16016
PLUNGER,STARTER
€ 24.00
16017
160171439
ref: 16017
JET-NEEDLE
€ 23.50
16021
160211183
ref: 16021
SCREW-THROTTLE STOP
€ 85.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261339
ref: 16126
VALVE,VACUUM
€ 156.00
16187
161870271
ref: 16187
NEEDLE-JET,NFKT
€ 20.50
21176
211761078
ref: 21176
SENSOR
€ 411.50
49019
490191097
ref: 49019
FILTER-FUEL
€ 8.50
92005
920051290
ref: 92005
FITTING
€ 28.00
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92009B
920091781
ref: 92009B
SCREW
€ 1.50
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371531
ref: 92037A
CLAMP,TUBE
€ 3.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92055A
920551574
ref: 92055A
RING-O
€ 2.50
92059
920591110
ref: 92059
TUBE,3.5X6.5X330
€ 15.50
92059A
920591237
ref: 92059A
TUBE,L=350
€ 16.00
92063
920631071
ref: 92063
JET-MAIN,#118
€ 9.50
92063A
920631118
ref: 92063A
(OPTION)
JET-MAIN,#115
€ 9.50
92064
920640012
ref: 92064
(OPTION)
JET-PILOT,#32
€ 12.00
92064A
920641209
ref: 92064A
JET-PILOT,#35
€ 18.00
92143
921431907
ref: 92143
COLLAR
€ 6.00
92144
921441538
ref: 92144
SPRING,VACUUM VALVE
€ 15.50
92170
921701496
ref: 92170
CLAMP,TUBE
€ 9.50
92190
921901560
ref: 92190
TUBE,5X8X430
€ 15.00
92191
921911689
ref: 92191
TUBE
€ 8.00
92200
922001369
ref: 92200
WASHER
€ 2.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
223
223D0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
