SEAT

KLX250H7F KLX250S 2007 USA CANADA

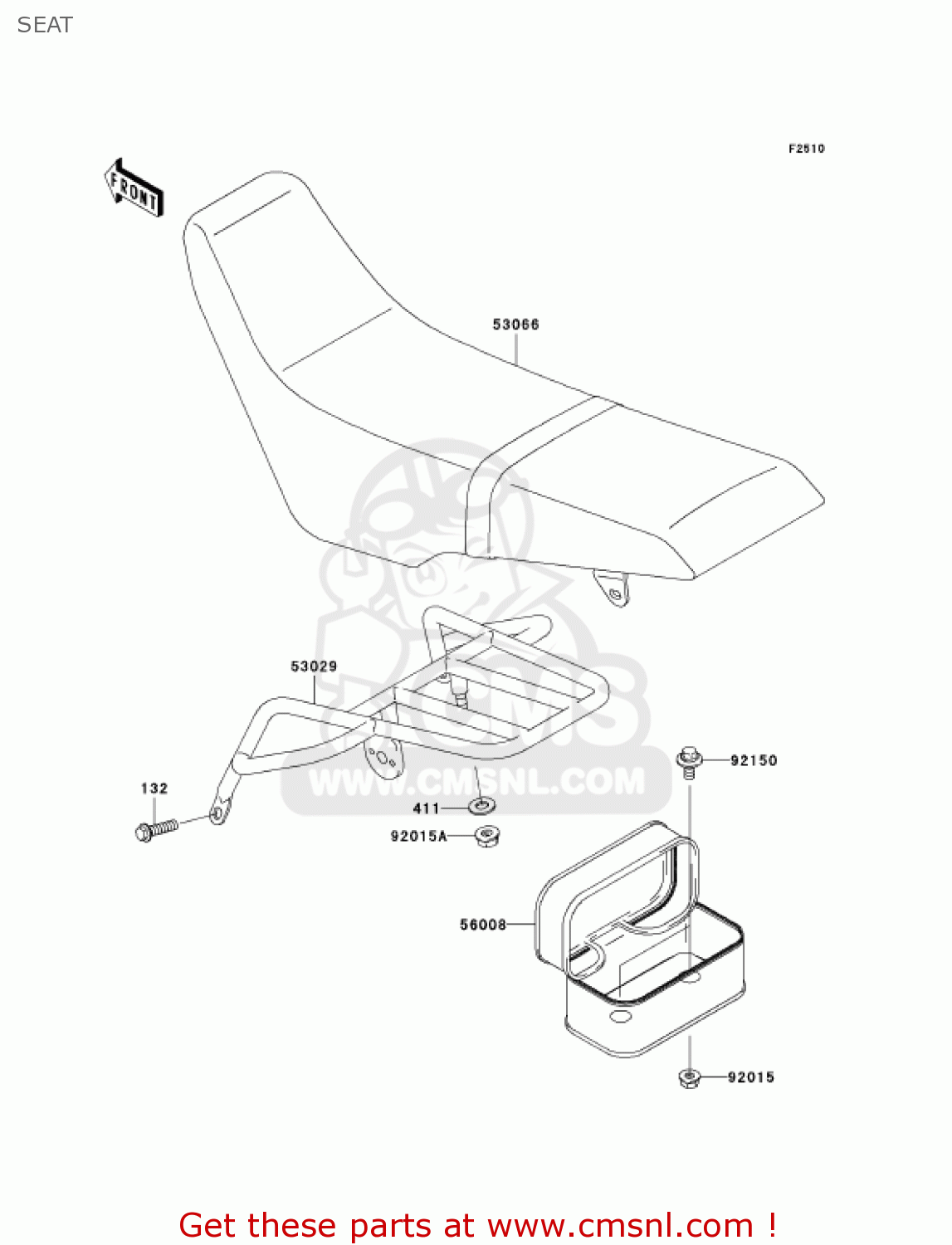

Seat diagram KLX250H7F KLX250S 2007 USA CANADA

SEAT KLX250H7F KLX250S 2007 USA CANADA

SEAT KLX250H7F KLX250S 2007 USA CANADA

prices are in EUR

ref

part #

description

quantity

132

132G0830
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

53029

530291146
ref: 53029

CARRIER

€ 91.50

53066

530660095336
ref: 53066

SEAT-ASSY,DUAL,W/BAND

€ 292.50

56008

560081074MA
ref: 56008

BAG,TOOL,BLACK

€ 76.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00
