SWINGARM

KLX250E3 1995 EUROPE NL GR IT ST

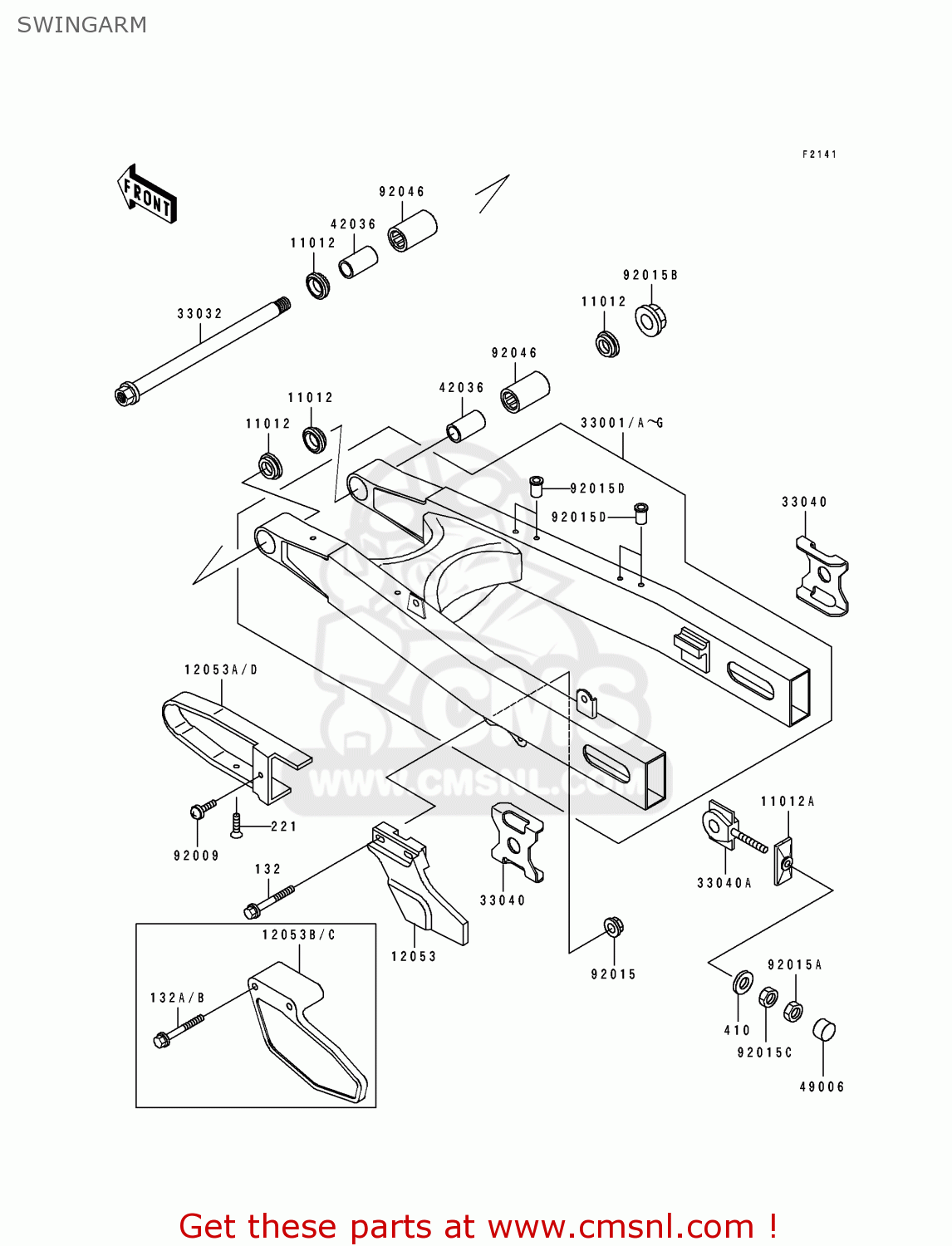

Swingarm diagram KLX250E3 1995 EUROPE NL GR IT ST

SWINGARM KLX250E3 1995 EUROPE NL GR IT ST
SWINGARM KLX250E3 1995 EUROPE NL GR IT ST
SWINGARM KLX250E3 1995 EUROPE NL GR IT ST
prices are in EUR
ref
part #
description
quantity
11012
110121259
ref: 11012
CAP,SWING ARM
110121259
€ 15.00
11012A
110121780
ref: 11012A
CAP,CHAIN ADJUSTER
110121780
€ 17.50
12053B
120531335
ref: 12053B
GUIDE-CHAIN,RR
120531335
€ 16.50
12053D
120531360
ref: 12053D
GUIDE-CHAIN,DRIVE,FR
120531360
€ 37.50
33001F
330011467CE
ref: 33001F
EUGRITNL
ARM-COMP-SWING,SILVER
€ 606.00
33001G
330011468CE
ref: 33001G
NRST
ARM-COMP-SWING,SILVER
€ 606.00
33032
330321137
ref: 33032
SHAFT-SWING ARM
330321137
€ 43.00
33040
330401131
ref: 33040
ADJUSTER-CHAIN,OUTER
330401131
€ 10.00
33040A
330401132
ref: 33040A
ADJUSTER-CHAIN,INNER
330401132
€ 16.50
42036
420361064
ref: 42036
SLEEVE,SWING ARM
420361064
€ 14.50
49006
490061218
ref: 49006
BOOT
490061218
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
132A
132G0655
ref: 132A
BOLT-FLANGED-SMALL
132G0655
€ 2.00
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
221B0610
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
92015
920151339
ref: 92015
NRST
NUT,LOCK,FLANGED,6MM
920151339
€ 1.00
92015A
920151364
ref: 92015A
NUT,8MM
920151364
€ 2.50
92015B
920151407
ref: 92015B
NUT,14MM
920151407
€ 6.50
92015C
920151658
ref: 92015C
NUT,FLANGED,8MM
920151658
€ 3.00
92015D
920151792
ref: 92015D
NUT,POP,6MM,L=16.5
920151792
€ 3.00
92046
920461128
ref: 92046
BEARING-NEEDLE,TA2030
920461128
€ 25.00
