CRANKSHAFT

KLX250E3 1995 EUROPE NL GR IT ST

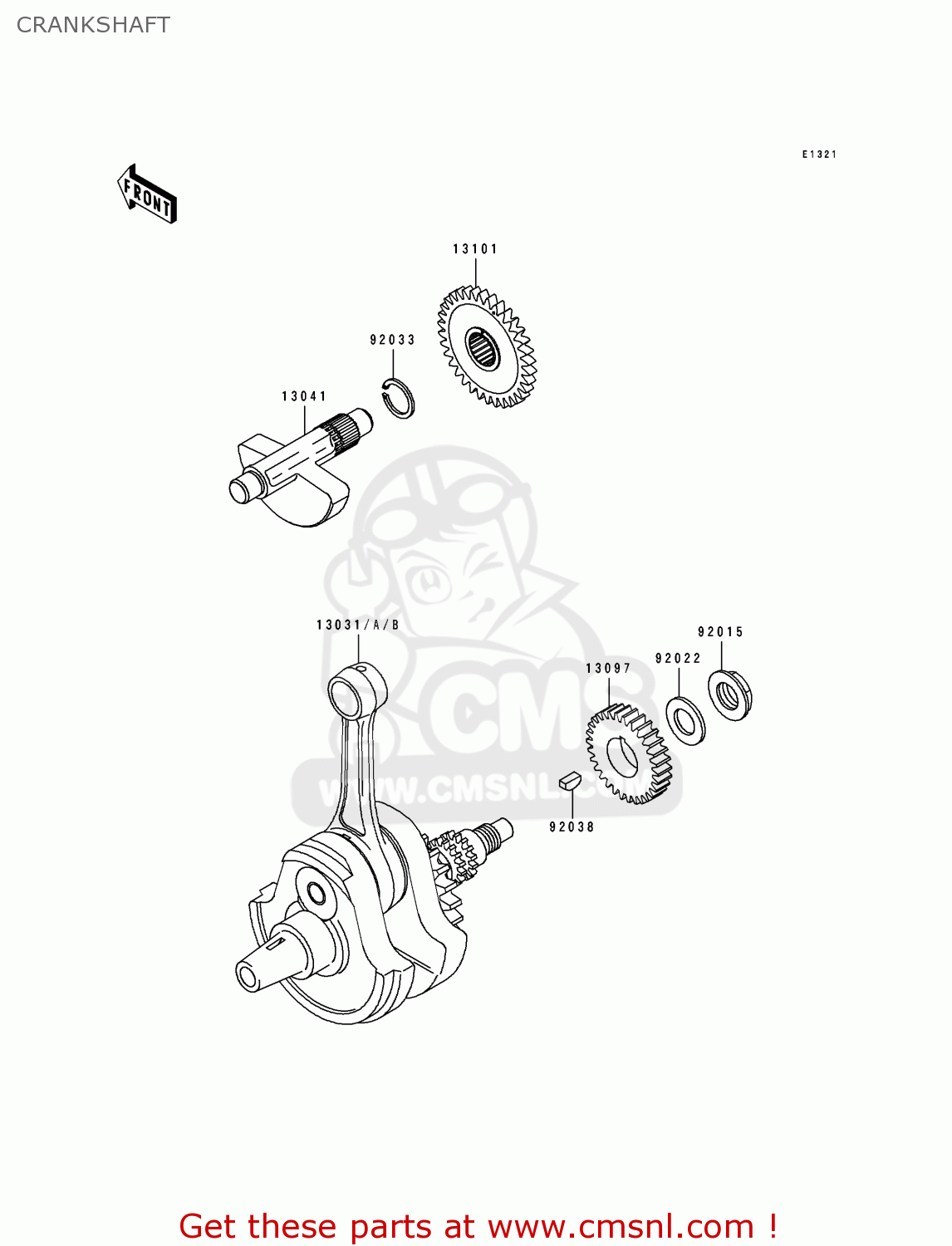

Crankshaft diagram KLX250E3 1995 EUROPE NL GR IT ST

CRANKSHAFT KLX250E3 1995 EUROPE NL GR IT ST
CRANKSHAFT KLX250E3 1995 EUROPE NL GR IT ST
CRANKSHAFT KLX250E3 1995 EUROPE NL GR IT ST
prices are in EUR
ref
part #
description
quantity
13031A
130311391
ref: 13031A
CRANKSHAFT-COMP
€ 531.50
13041
130411107
ref: 13041
BALANCER
130411107
€ 72.50
13097
130971296
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 59.00
13101
131011197
ref: 13101
GEAR-ASSY,BALANCER
€ 111.50
92015
920151581
ref: 92015
NUT,16MM
920151581
€ 13.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
920221356
€ 4.50
92033
92033029
ref: 92033
CIRCLIP,18MM
92033029
€ 6.50
92038
920381057
ref: 92038
KEY
920381057
€ 3.50
