FENDERS
KLX250E3 1995 EUROPE NL GR IT ST

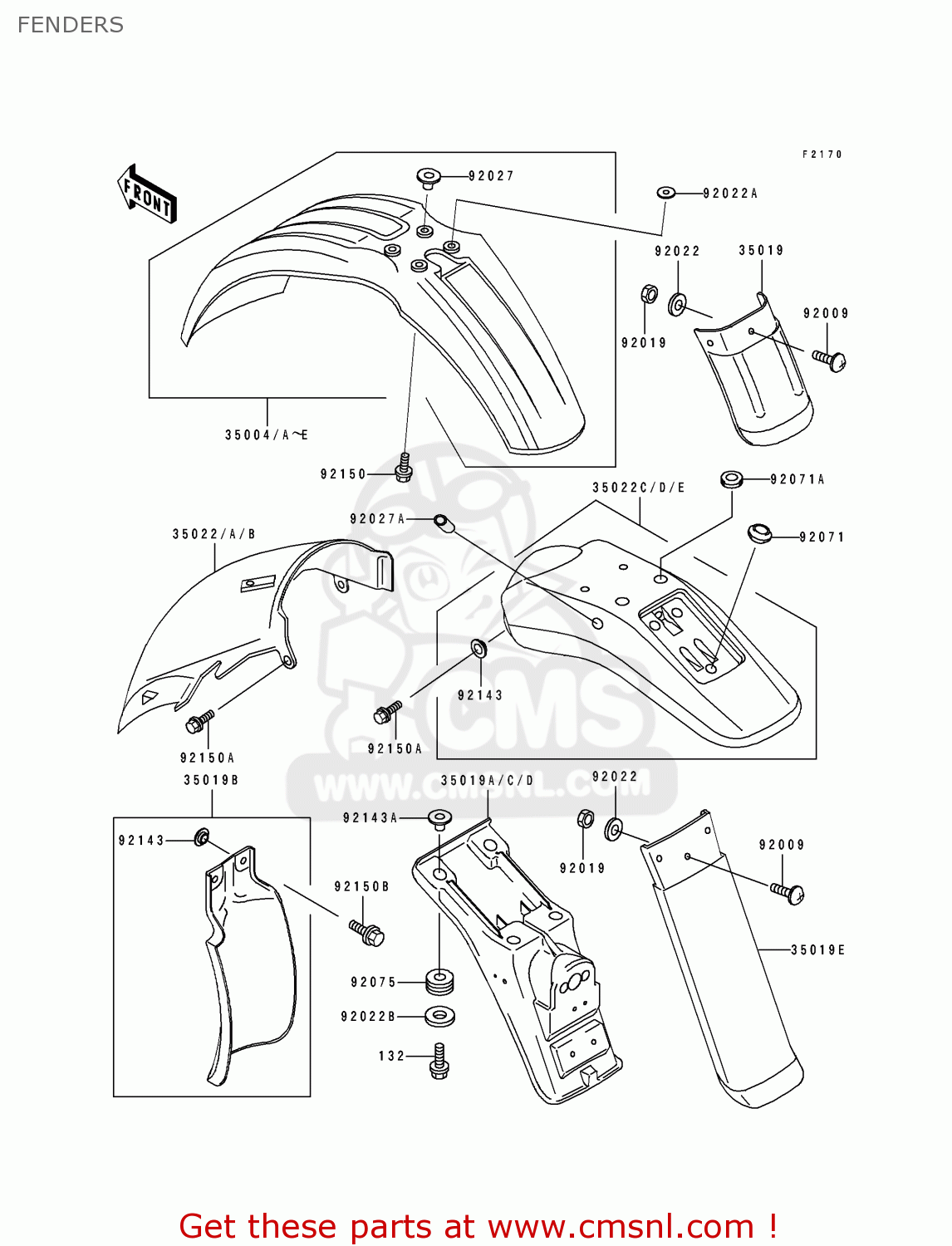

Fenders diagram KLX250E3 1995 EUROPE NL GR IT ST
FENDERS KLX250E3 1995 EUROPE NL GR IT ST
×
prices are in EUR
ref
part #
description
quantity
35004A
3500413116F
ref: 35004A
ST
FENDER-FRONT,P.WHITE
€ 72.00
35004B
3500413116W
ref: 35004B
NR
FENDER-FRONT,L.GREEN
€ 77.00
35004D
3500413196F
ref: 35004D
EUGRITNL
FENDER-FRONT,P.WHITE
€ 70.00
35004E
3500413196W
ref: 35004E
EUGRITNL
FENDER-FRONT,L.GREEN
€ 81.50
35019
350191002
ref: 35019
NRST
FLAP,FENDER,FR
€ 11.50
35019A
350191305
ref: 35019A
EUGRITNL
FLAP,RR FENDER
€ 43.50
35019B
350191306
ref: 35019B
FLAP,RR FENDER,FR
€ 11.00
35019C
350191311
ref: 35019C
NRST
FLAP,RR FENDER
€ 38.50
35019E
350191317
ref: 35019E
NRST
FLAP,RR FENDER
€ 14.50
35022A
3502212866F
ref: 35022A
EUGRITNLST
FENDER-COMP-REAR,FR,P
€ 85.50
35022B
3502212866W
ref: 35022B
EUGRITNLNR
FENDER-COMP-REAR,FR,L
€ 77.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
35022D
3502213036F
ref: 35022D
EUGRITNLST
FENDER-COMP-REAR,RR,P
€ 53.50
35022E
3502213036W
ref: 35022E
EUGRITNLNR
FENDER-COMP-REAR,RR,L
€ 42.00
92009
920091287
ref: 92009
NRST
SCREW,6X14
€ 1.50
92019
92019008
ref: 92019
NRST
NUT-LOCK,6MM
€ 3.00
92022
92022024
ref: 92022
NRST
WASHER,7X16X1.2
€ 2.50
92022A
92022125
ref: 92022A
NRST
WASHER,6.5X20X1.6
€ 1.00
92022B
920221690
ref: 92022B
WASHER
€ 2.50
92027
920271936
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92027A
920274015
ref: 92027A
COLLAR,FR COWLING
€ 7.00
92071
92071024
ref: 92071
GROMMET
€ 3.00
92071A
920711210
ref: 92071A
GROMMET
€ 2.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92143
921431196
ref: 92143
COLLAR
€ 3.00
92143A
921431353
ref: 92143A
COLLAR
€ 5.50
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501506
ref: 92150B
BOLT
€ 3.00
