FRONT MASTER CYLINDER

KLX250E3 1995 EUROPE NL GR IT ST

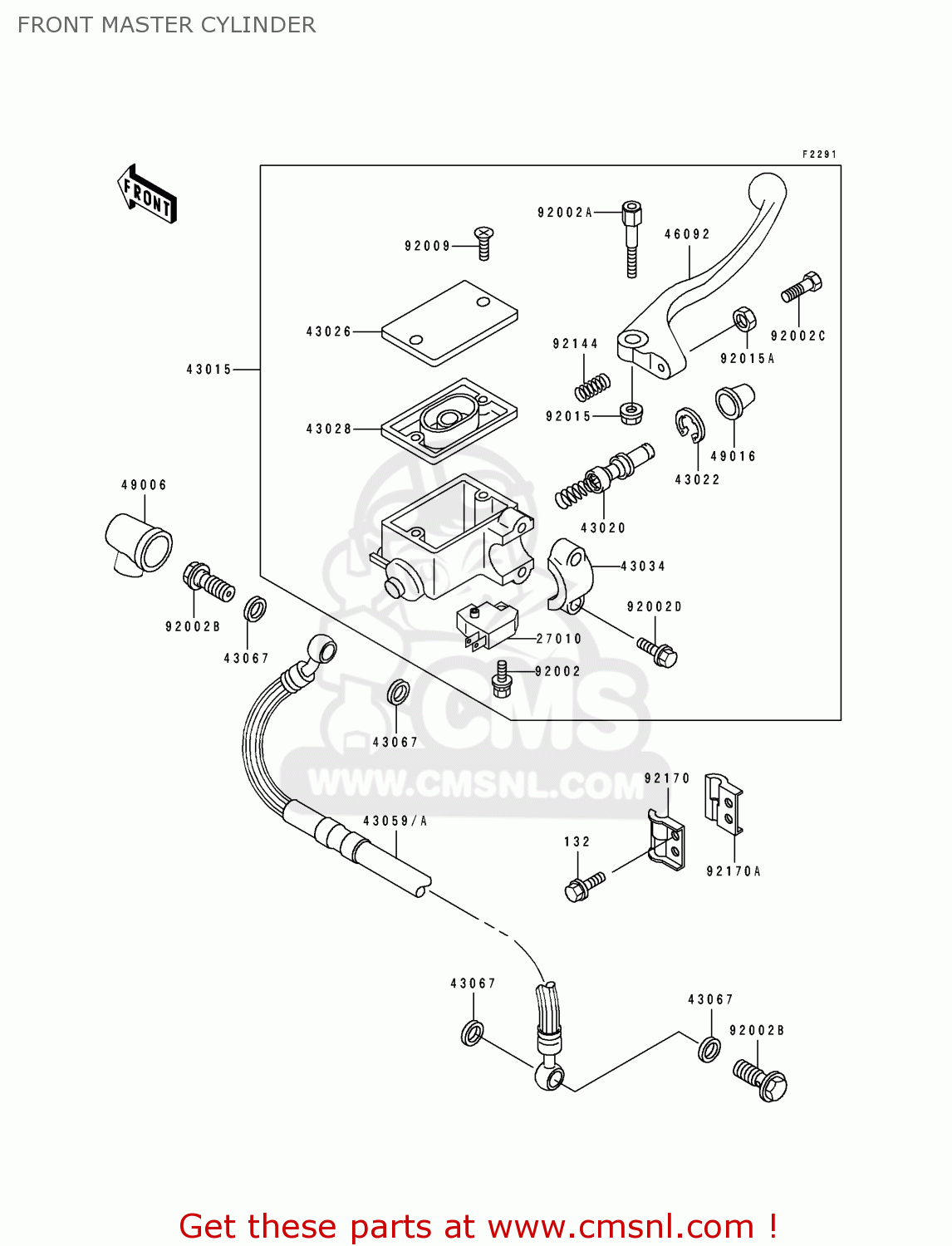

Front master cylinder diagram KLX250E3 1995 EUROPE NL GR IT ST

FRONT MASTER CYLINDER KLX250E3 1995 EUROPE NL GR IT ST
FRONT MASTER CYLINDER KLX250E3 1995 EUROPE NL GR IT ST
FRONT MASTER CYLINDER KLX250E3 1995 EUROPE NL GR IT ST
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151534
ref: 43015
CYLINDER-ASSY-MASTER,
€ 359.00
43020
430201104
ref: 43020
PISTON-COMP-BRAKE
430201104
€ 41.00
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261074
ref: 43026
CAP-BRAKE
430261074
€ 17.50
43028
430281061
ref: 43028
DIAPHRAGM
430281061
€ 11.00
43034
430341016
ref: 43034
HOLDER-BRAKE,MASTER C
430341016
€ 13.50
43059A
430591826
ref: 43059A
HOSE-BRAKE,FR
€ 130.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
46092
460921175
ref: 46092
LEVER-GRIP,FRONT BRAK
460921175
€ 12.50
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021323
ref: 92002
BOLT
920021323
€ 2.50
92002A
920021879
ref: 92002A
BOLT,LEVER SET
920021879
€ 13.00
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92002C
920021893
ref: 92002C
BOLT,ADJUST
920021893
€ 5.00
92002D
920021894
ref: 92002D
BOLT
920021894
€ 3.50
92009
920091458
ref: 92009
SCREW,4MM
920091458
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151642
ref: 92015A
NUT,ADJUST
920151642
€ 2.50
92144
921441103
ref: 92144
SPRING,RETURN
921441103
€ 6.50
92170
921701231
ref: 92170
CLAMP,BRAKE HOSE,OUTS
921701231
€ 4.50
92170A
921701232
ref: 92170A
CLAMP,BRAKE HOSE,INSI
921701232
€ 4.50
