KICKSTARTER MECHANISM

KLX250E3 1995 EUROPE NL GR IT ST

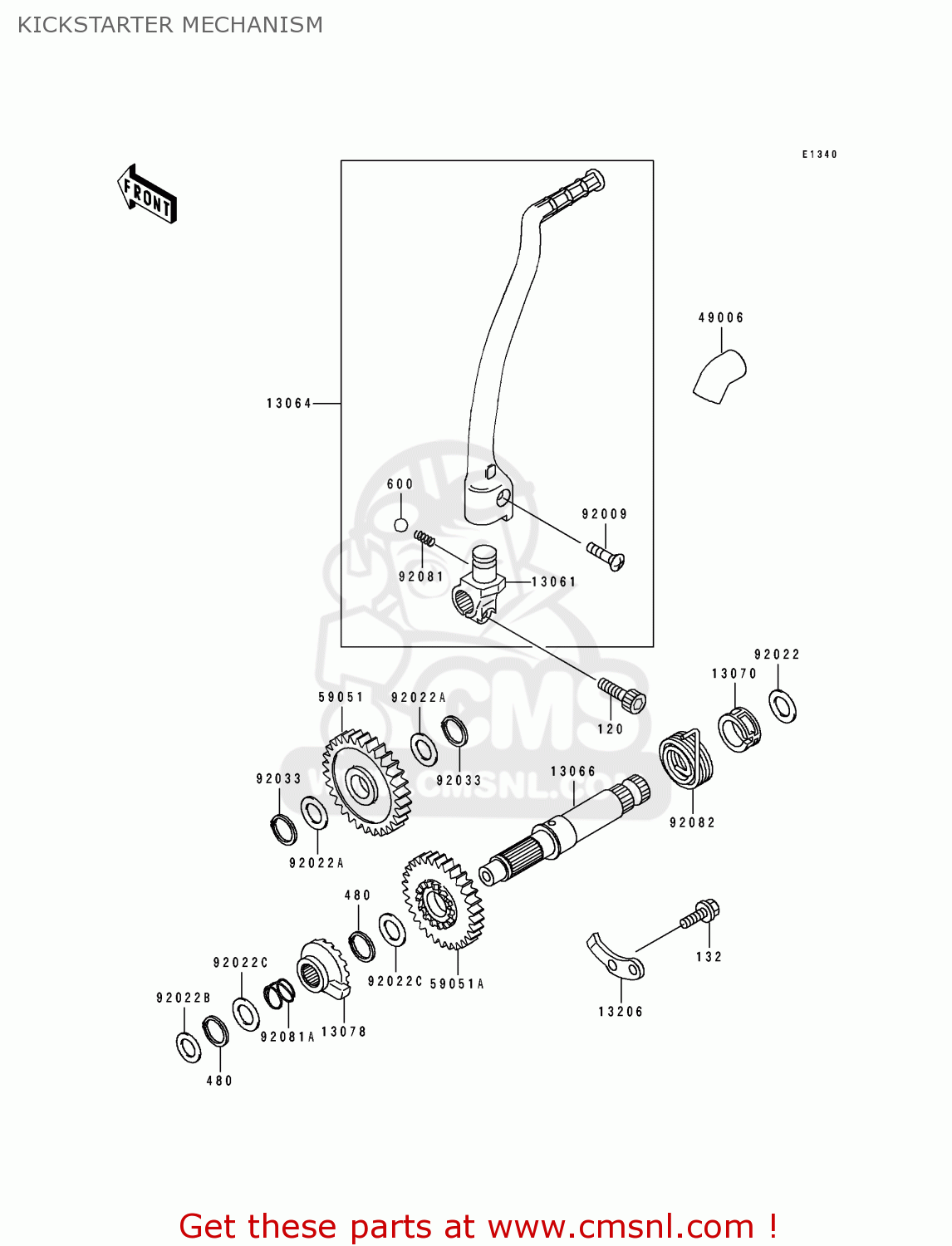

Kickstarter mechanism diagram KLX250E3 1995 EUROPE NL GR IT ST

KICKSTARTER MECHANISM KLX250E3 1995 EUROPE NL GR IT ST
KICKSTARTER MECHANISM KLX250E3 1995 EUROPE NL GR IT ST
KICKSTARTER MECHANISM KLX250E3 1995 EUROPE NL GR IT ST
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
120S0825
€ 3.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
480J1600
€ 2.50
600
600A0800
ref: 600
BALL-STEEL,1/4
600A0800
€ 0.50
13061
130611397
ref: 13061
BOSS,KICK PEDAL
130611397
€ 56.50
13064
130641172
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 149.50
13066
130661088
ref: 13066
SHAFT KICK
130661088
€ 82.50
13070
13070011
ref: 13070
GUIDE,KICKSTARTER SPR
13070011
€ 6.50
13078
130781052
ref: 13078
RATCHET,KL250-D2
130781052
€ 50.50
13206
132061062
ref: 13206
GUIDE-KICK
132061062
€ 7.00
49006
490061287
ref: 49006
BOOT
490061287
€ 4.50
59051
590511120
ref: 59051
GEAR-SPUR,IDLE,28T
590511120
€ 135.50
59051A
590511131
ref: 59051A
GEAR-SPUR,KICK,29T
590511131
€ 109.50
92009
920091607
ref: 92009
SCREW,6X27
920091607
€ 5.50
92022
92022118
ref: 92022
WASHER,18.5X23X1.2
92022118
€ 3.00
92022A
920221614
ref: 92022A
WASHER,17.3X25X0.5
920221614
€ 2.50
92022B
92022269
ref: 92022B
WASHER,PLAIN
92022269
€ 1.00
92022C
92022315
ref: 92022C
WASHER, 16.8X22X0.5
92022315
€ 4.00
92033
92033032
ref: 92033
CIRCLIP
92033032
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
92081020
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
92081122
€ 6.00
92082
92082003
ref: 92082
SPRING-KICKSTARTER
92082003
€ 19.00
