FRAME FITTINGS
KLX250E3 1995 EUROPE NL GR IT ST

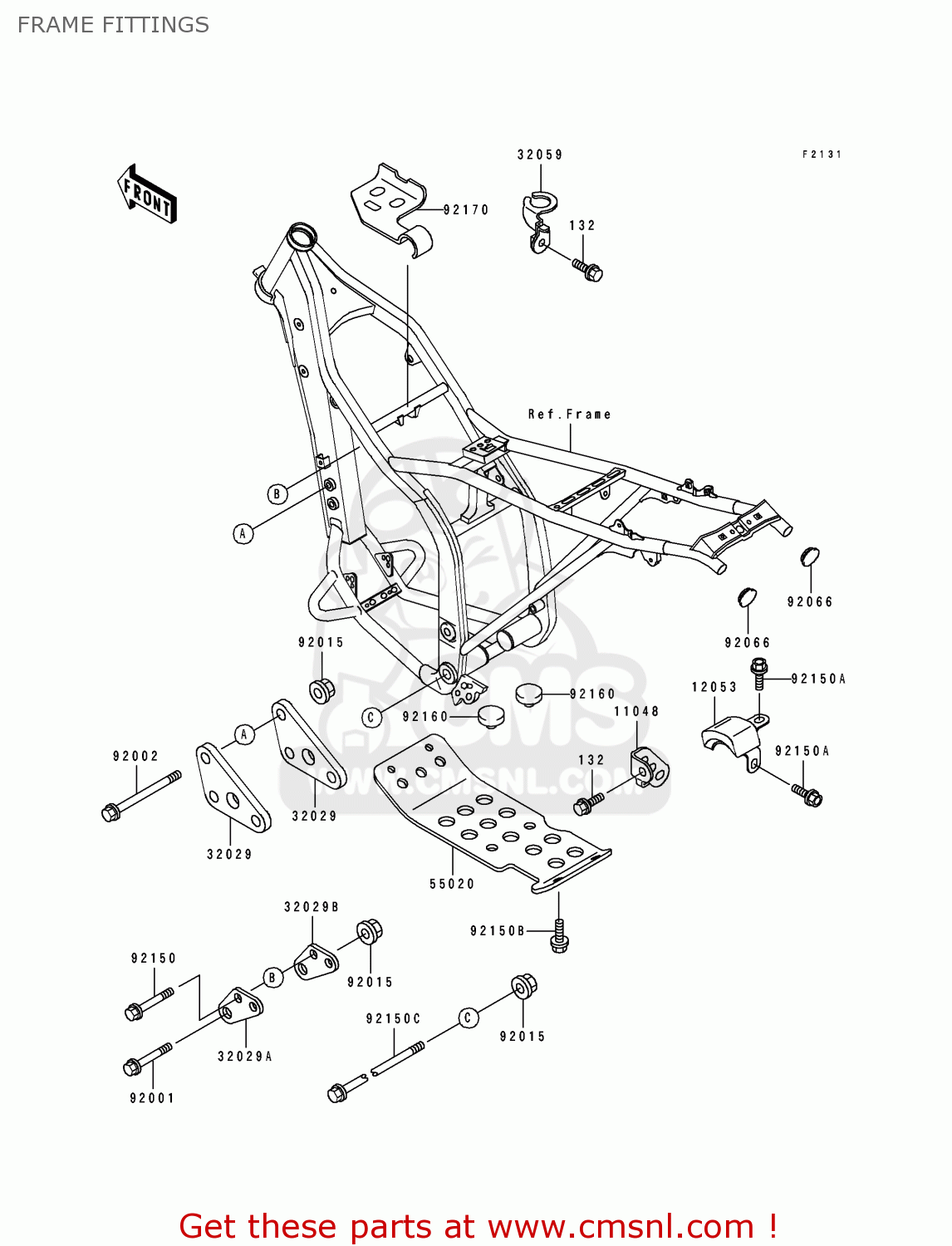

Frame fittings diagram KLX250E3 1995 EUROPE NL GR IT ST
FRAME FITTINGS KLX250E3 1995 EUROPE NL GR IT ST
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11048
110481223
ref: 11048
BRACKET,AIR FILTER,LW
€ 5.50
12053
120531314
ref: 12053
GUIDE-CHAIN
€ 10.50
32029
320291855
ref: 32029
BRACKET-ENGINE,FR
€ 15.50
32029A
320291886
ref: 32029A
BRACKET-ENGINE,HEAD,L
€ 5.50
32029B
320291887
ref: 32029B
BRACKET-ENGINE,HEAD,R
€ 5.50
32059
320591117
ref: 32059
BRACKET-SWITCH,BRAKE
€ 6.50
55020
550201456
ref: 55020
GUARD,ENGINE
€ 74.00
92001
920011499
ref: 92001
BOLT,10X44
€ 3.50
92002
920021674
ref: 92002
BOLT,10X90
€ 12.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
€ 7.00
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
92150
921501168
ref: 92150
BOLT,FLANGED,8X40
€ 2.00
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501435
ref: 92150B
BOLT
€ 2.50
92150C
921501642
ref: 92150C
BOLT,FLANGED,10X120
€ 12.50
92160
921601396
ref: 92160
DAMPER
€ 3.50
92170
921701423
ref: 92170
CLAMP
€ 12.50
