RADIATOR(KLX250-E3)
KLX250E3 1995 EUROPE NL GR IT ST

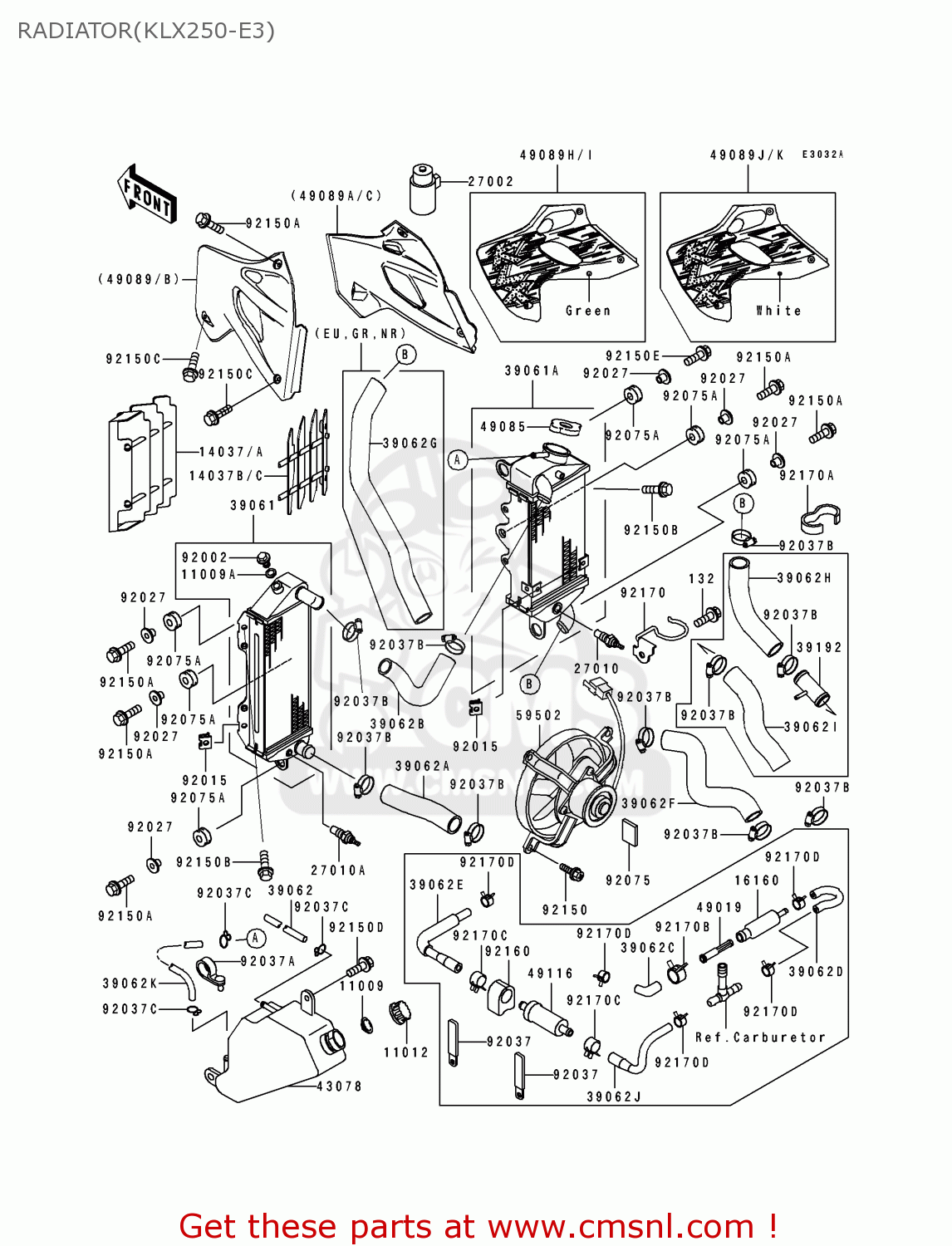

Radiator(klx250-e3) diagram KLX250E3 1995 EUROPE NL GR IT ST
RADIATOR(KLX250-E3) KLX250E3 1995 EUROPE NL GR IT ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
14037
1403710996F
ref: 14037
EUGRITNLST
SCREEN,P.WHITE
€ 15.50
14037A
1403710996W
ref: 14037A
EUGRITNLNR
SCREEN,L.GREEN
€ 16.50
14037B
1403711216F
ref: 14037B
EUGRITNLST
SCREEN,RH,P.WHITE
€ 17.50
14037C
1403711216W
ref: 14037C
EUGRITNLNR
SCREEN,RH,L.GREEN
€ 19.00
16160
161601151
ref: 16160
ITNLST
BODY,FILTER
€ 6.50
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
27010A
270101199
ref: 27010A
SWITCH,WARNING
€ 114.00
39061
390611193
ref: 39061
RADIATOR-ASSY,LH
€ 656.00
39061A
390611194
ref: 39061A
RADIATOR-ASSY,RH
€ 723.00
39062
390621315
ref: 39062
HOSE-COOLING,5X9X500
€ 8.00
39062A
390621535
ref: 39062A
HOSE-COOLING,HEAD-RAD
€ 13.50
39062B
390621536
ref: 39062B
HOSE-COOLING,RADIATOR
€ 11.50
39062C
390621558
ref: 39062C
ITNLST
HOSE-COOLING,HEAD-FIL
€ 9.50
39062D
390621559
ref: 39062D
ITNLST
HOSE-COOLING,FILTER-C
€ 6.00
39062E
390621562
ref: 39062E
ITNLST
HOSE-COOLING
€ 11.00
39062F
390621563
ref: 39062F
HOSE-COOLING,PUMP-CYL
€ 21.00
39062G
390621564
ref: 39062G
EUGRNR
HOSE-COOLING,RADIATOR
€ 31.00
39062H
390621565
ref: 39062H
ITNLST
HOSE-COOLING,RADIATOR
€ 14.00
39062I
390621566
ref: 39062I
ITNLST
HOSE-COOLING,PIPE-PUM
€ 16.50
39062J
390621568
ref: 39062J
ITNLST
HOSE-COOLING
€ 5.00
39062K
390621569
ref: 39062K
HOSE-COOLING,5X9X1080
€ 7.00
39192
391921016
ref: 39192
ITNLST
PIPE-WATER
€ 22.00
43078
430781140
ref: 43078
RESERVOIR
€ 32.50
49019
490191068
ref: 49019
ITNLST
FILTER-FUEL
€ 4.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49089H
4908952116W
ref: 49089H
EUGRITNLNR
SHROUD-ENGINE,LH,L.GR
€ 111.00
49089I
4908952126W
ref: 49089I
EUGRITNLNR
SHROUD-ENGINE,RH,L.GR
€ 119.00
49089J
4908952136F
ref: 49089J
EUGRITNLST
SHROUD-ENGINE,LH,P.WH
€ 119.00
49089K
4908952146F
ref: 49089K
EUGRITNLST
SHROUD-ENGINE,RH,P.WH
€ 119.00
49116
491161081
ref: 49116
ITNLST
VALVE-ASSY
€ 85.00
59502
595021104
ref: 59502
FAN-ASSY
€ 485.00
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371069
ref: 92037
ITNLST
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92037B
920371589
ref: 92037B
EUGRNR
CLAMP,COOLING HOSE
€ 13.00
92037B
920371589
ref: 92037B
ITNLST
CLAMP,COOLING HOSE
€ 13.00
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
92075
920751982
ref: 92075
DAMPER,IGNITION
€ 2.50
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501339
ref: 92150A
BOLT,6X20
€ 2.50
92150B
921501340
ref: 92150B
BOLT,6X14
€ 3.00
92150C
921501435
ref: 92150C
BOLT
€ 2.50
92150D
921501504
ref: 92150D
BOLT
€ 3.00
92150E
921501507
ref: 92150E
BOLT
€ 3.00
92160
921601451
ref: 92160
ITNLST
DAMPER,VALVE
€ 8.00
92170
921701357
ref: 92170
CLAMP
€ 13.00
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
92170A
921701419
ref: 92170A
CLAMP
€ 3.00
92170B
921701491
ref: 92170B
ITNLST
CLAMP
€ 5.00
92170C
921701492
ref: 92170C
ITNLST
CLAMP
€ 3.00
92170D
921701493
ref: 92170D
ITNLST
CLAMP
€ 3.00
