WATER PUMP
KL650C4 KLR650 1998 UNITED KINGDOM FG

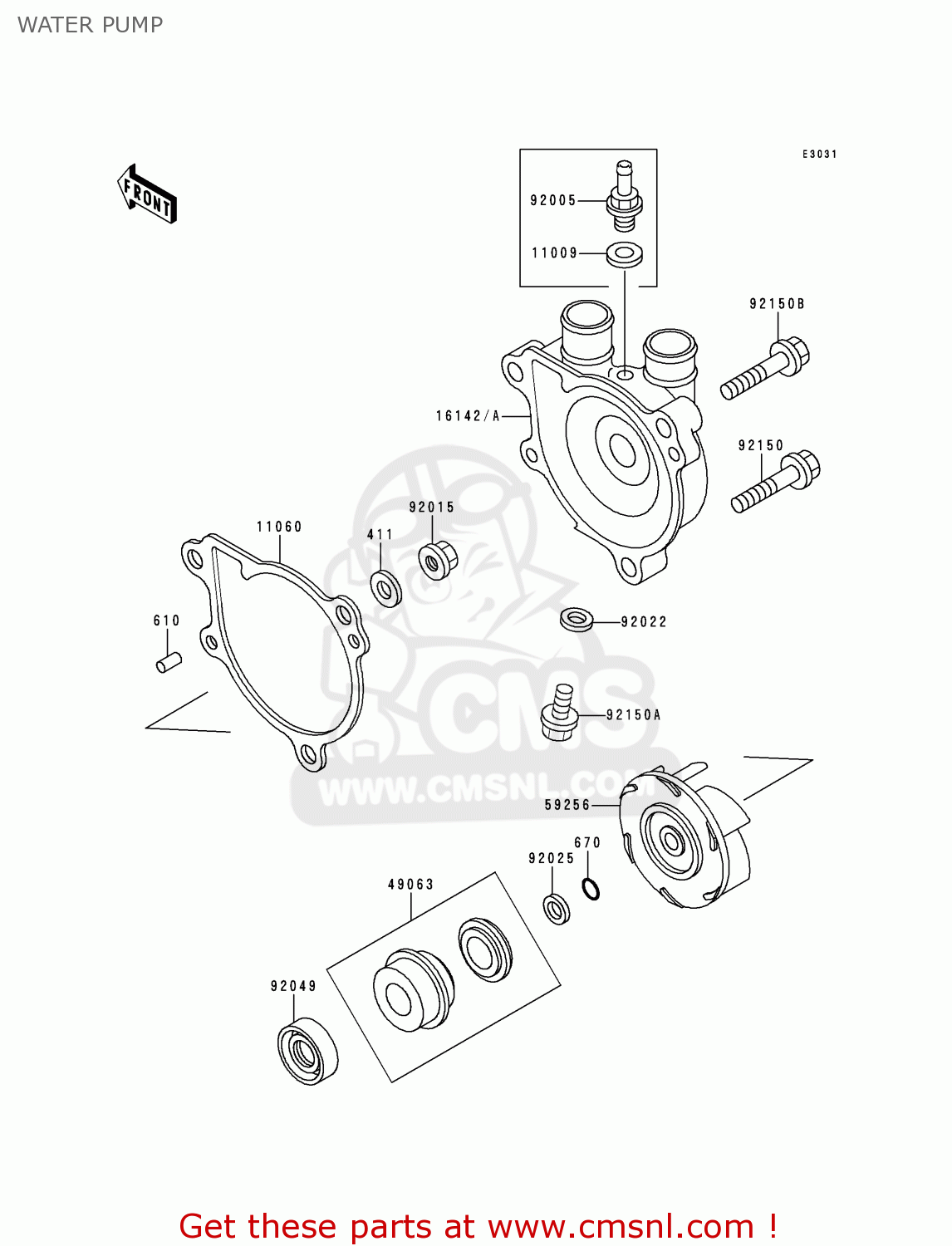

Water pump diagram KL650C4 KLR650 1998 UNITED KINGDOM FG
WATER PUMP KL650C4 KLR650 1998 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11060
110601114
ref: 11060
GASKET,WATER PUMP COV (NAS)
€ 5.00
16142A
161421102
ref: 16142A
COVER-PUMP,WATER,C.OL
€ 94.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
€ 19.00
59256
592561055
ref: 59256
IMPELLER
€ 20.00
92005
920051209
ref: 92005
FITTING
€ 32.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92025
920251503
ref: 92025
SHIM,T=0.8
€ 2.50
92049
920491157
ref: 92049
SEAL-OIL,SC10227
€ 6.50
92150
921501021
ref: 92150
BOLT,6X30
€ 2.50
92150A
921501966
ref: 92150A
BOLT
€ 2.50
92150B
921501967
ref: 92150B
BOLT
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B1506
ref: 670
O RING,6MM
€ 1.00
