FENDERS
KL650C4 KLR650 1998 UNITED KINGDOM FG

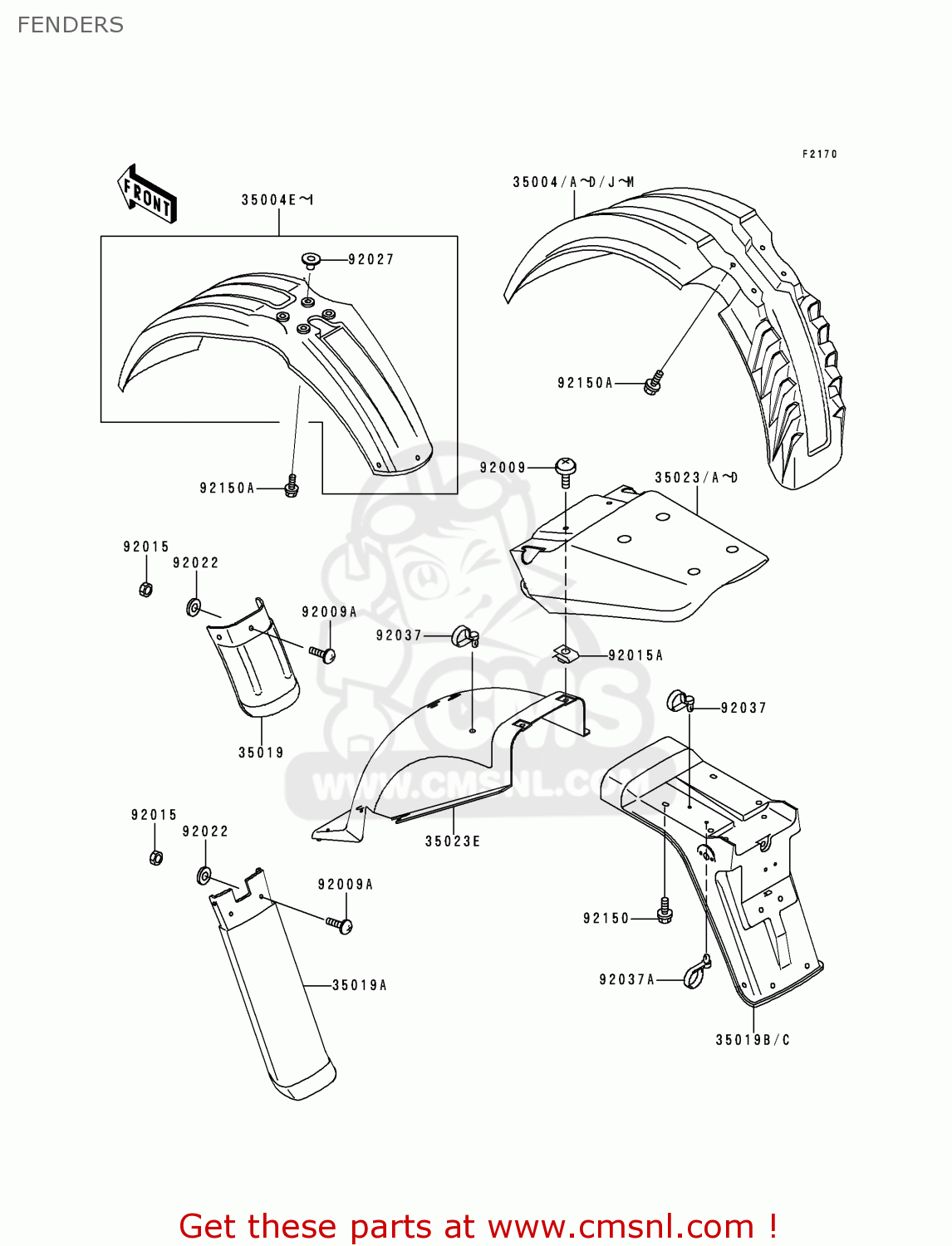

Fenders diagram KL650C4 KLR650 1998 UNITED KINGDOM FG
FENDERS KL650C4 KLR650 1998 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
35004B
3500411996C
ref: 35004B
UK
FENDER-FRONT,EBONY
€ 99.50
35004D
3500411996W
ref: 35004D
UK
FENDER-FRONT,L.GREEN
€ 121.50
35004G
3500413116C
ref: 35004G
FG
FENDER-FRONT,EBONY
€ 77.00
35004I
3500413116W
ref: 35004I
FG
FENDER-FRONT,L.GREEN
€ 77.00
35019
350191002
ref: 35019
FG
FLAP,FENDER,FR
€ 11.50
35019A
350191317
ref: 35019A
FG
FLAP,RR FENDER
€ 14.50
35019B
350191324
ref: 35019B
UK
FLAP,RR
€ 45.00
35019C
350191327
ref: 35019C
FG
FLAP,RR
€ 49.50
35023A
3502313976C
ref: 35023A
FENDER-REAR,RR,EBONY
€ 76.00
35023D
3502313976W
ref: 35023D
FENDER-REAR,RR,L.GREE
€ 66.50
35023E
350231398
ref: 35023E
FENDER-REAR,FR
€ 51.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091662
ref: 92009A
FG
SCREW
€ 2.50
92015
920151193
ref: 92015
FG
NUT,FLANGED,6MM
€ 0.50
92015A
920151602
ref: 92015A
NUT,6MM
€ 4.50
92022
92022125
ref: 92022
FG
WASHER,6.5X20X1.6
€ 1.00
92027
920271936
ref: 92027
FG
COLLAR,FRONT FENDER
€ 4.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371903
ref: 92037A
CLAMP
€ 5.00
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
92150A
921501339
ref: 92150A
BOLT,6X20
€ 2.50
