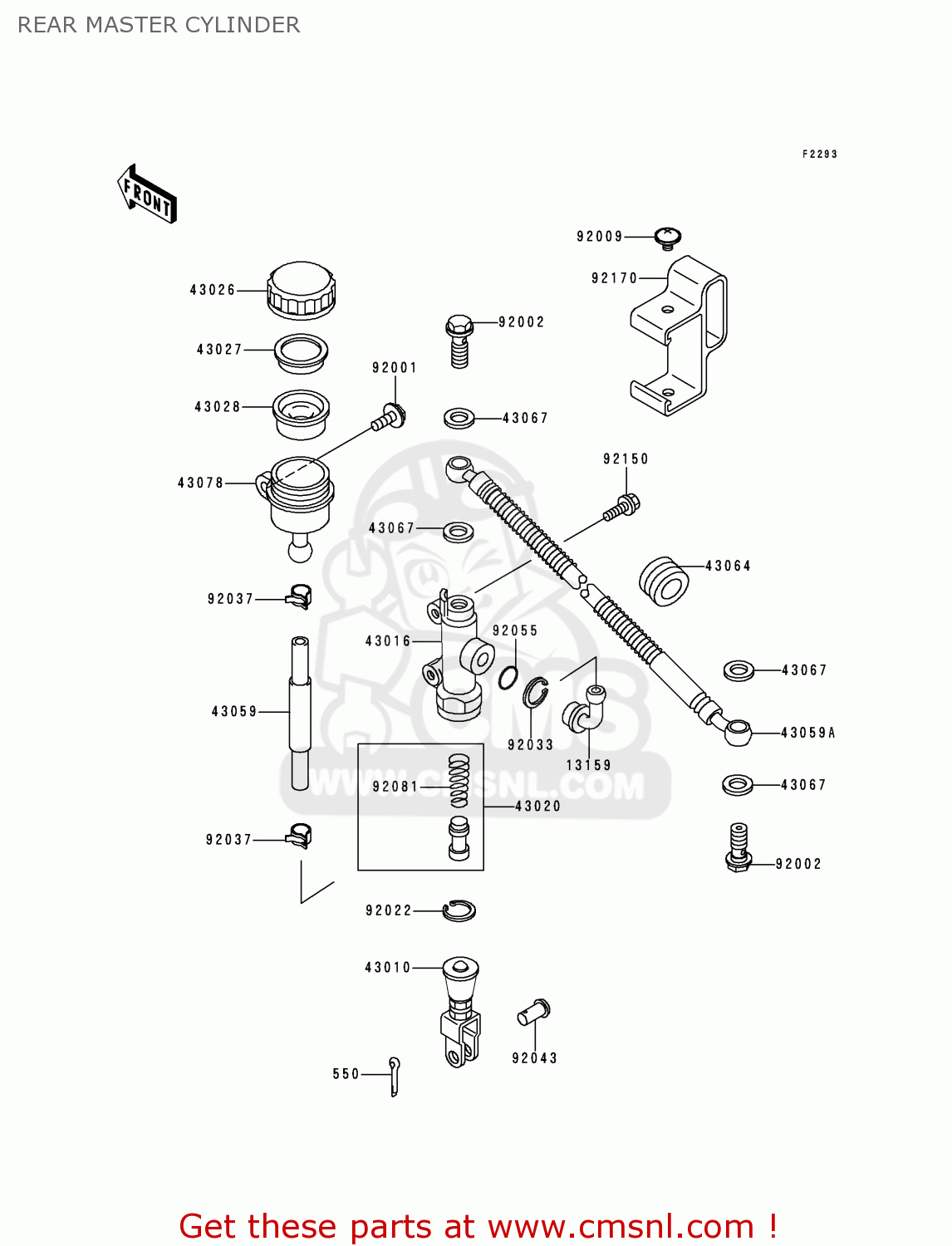

REAR MASTER CYLINDER

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

43010

430101062
ref: 43010

ROD-ASSY-BRAKE

€ 38.50

43016

430161208
ref: 43016

CYLINDER-MASTER,RR

€ 182.50

43020

430201057
ref: 43020

PISTON-COMP-BRAKE

€ 47.50

43026

430261077
ref: 43026

CAP-BRAKE

€ 23.00

43027

430271053
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281065
ref: 43028

DIAPHRAGM

€ 13.00

43059

430591662
ref: 43059

HOSE-BRAKE,RR M/CYLIN

€ 18.00

43059A

430591905
ref: 43059A

HOSE-BRAKE,RR

€ 58.00

43064

43064007
ref: 43064

43064007

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781080
ref: 43078

RESERVOIR

€ 19.00

92001

920011860
ref: 92001

BOLT,W/P,6X16

€ 2.50

92002

920021888
ref: 92002

BOLT,OIL,L=23

€ 3.50

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92022

920221601
ref: 92022

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371710
ref: 92037

CLAMP

€ 6.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92081

920811737
ref: 92081

SPRING

€ 8.50

92150

921501843
ref: 92150

BOLT

€ 2.50

92170

921701532
ref: 92170

CLAMP,HOSE

€ 14.50
