FRONT FORK
KL650C4 KLR650 1998 UNITED KINGDOM FG

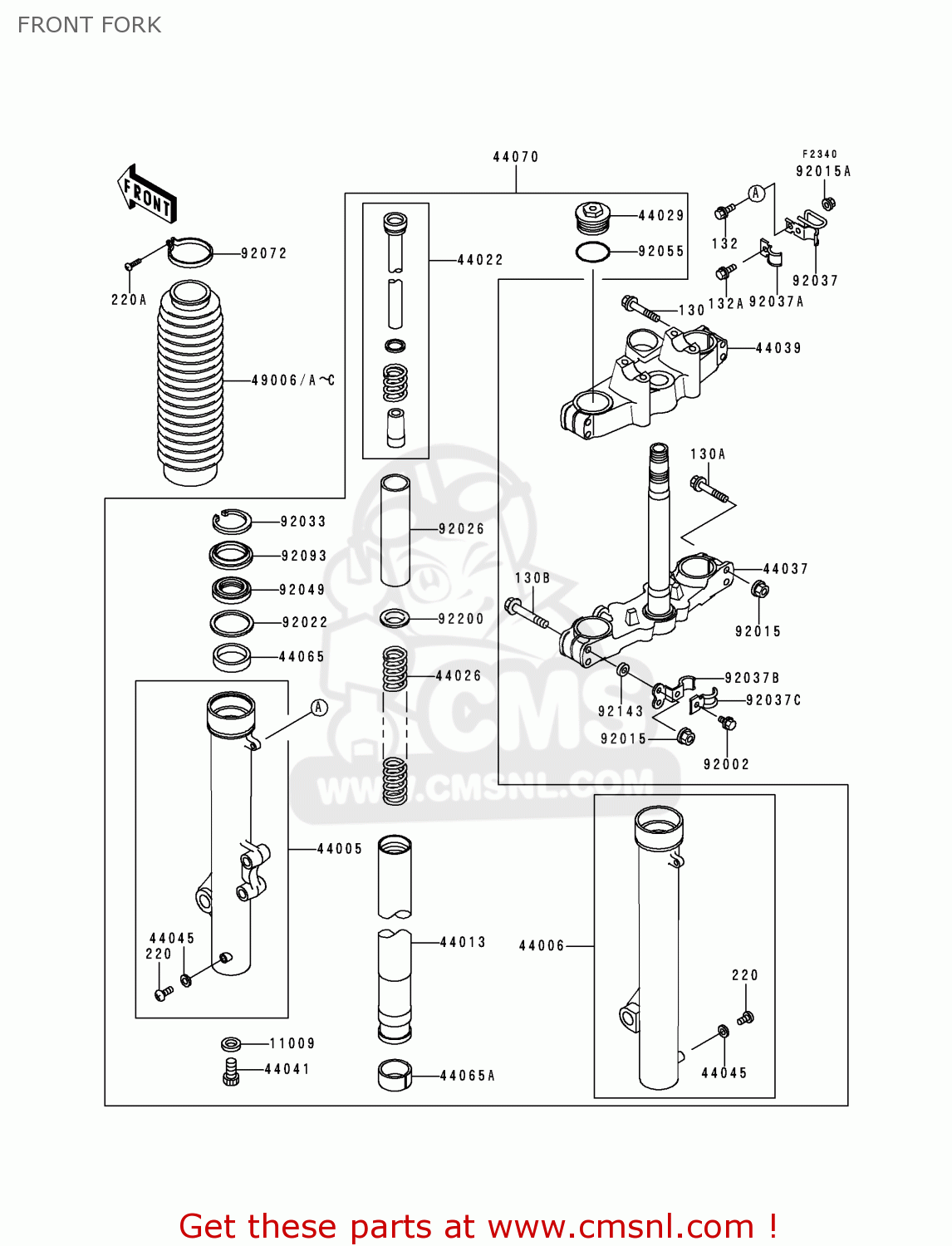

Front fork diagram KL650C4 KLR650 1998 UNITED KINGDOM FG
FRONT FORK KL650C4 KLR650 1998 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
130
130V0840
ref: 130
BOLT-FLANGED
€ 1.00
130A
130V0850
ref: 130A
BOLT-FLANGED
€ 1.00
11009
110091325
ref: 11009
GASKET,FORK, CYL BOLT (NAS)
€ 3.00
44005
440051349
ref: 44005
PIPE-LEFT FORK OUTER
€ 439.00
44006
440061347
ref: 44006
PIPE-RIGHT FORK OUTER
€ 461.00
44013
440131407
ref: 44013
PIPE-FORK INNER
€ 190.50
44022
440221303
ref: 44022
CYLINDER-FORK
€ 165.00
44026
440261577
ref: 44026
SPRING-FRONT FORK
€ 48.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
€ 31.50
44037
440371333
ref: 44037
HOLDER-FORK UNDER
€ 298.00
44039
440391259
ref: 44039
HOLDER-FORK UPPER
€ 263.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
44070
440701382
ref: 44070
DAMPER-ASSY,FORK
€ 1,639.50
49006A
490061266BD
ref: 49006A
BOOT,FORK,BLACK
€ 49.50
49006C
490061266VW
ref: 49006C
BOOT,J.S.VIOLET
€ 53.50
92002
920021982
ref: 92002
BOLT
€ 3.00
92015
920151406
ref: 92015
NUT,8MM
€ 3.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92026
920261455
ref: 92026
SPACER,FORK,L=200
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491389
ref: 92049
SEAL-OIL,FORK OUTER T
€ 16.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92072
920721077
ref: 92072
BAND,BOOT
€ 7.00
92093
920931206
ref: 92093
SEAL,FORK
€ 14.00
92143
921431770
ref: 92143
COLLAR
€ 8.00
92200
922001191
ref: 92200
WASHER
€ 6.50
130B
130V0855
ref: 130B
BOLT-FLANGED
€ 1.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220C0416
ref: 220A
SCREW-PAN-CROS
€ 1.00
