CYLINDER HEAD
KL650C4 KLR650 1998 UNITED KINGDOM FG

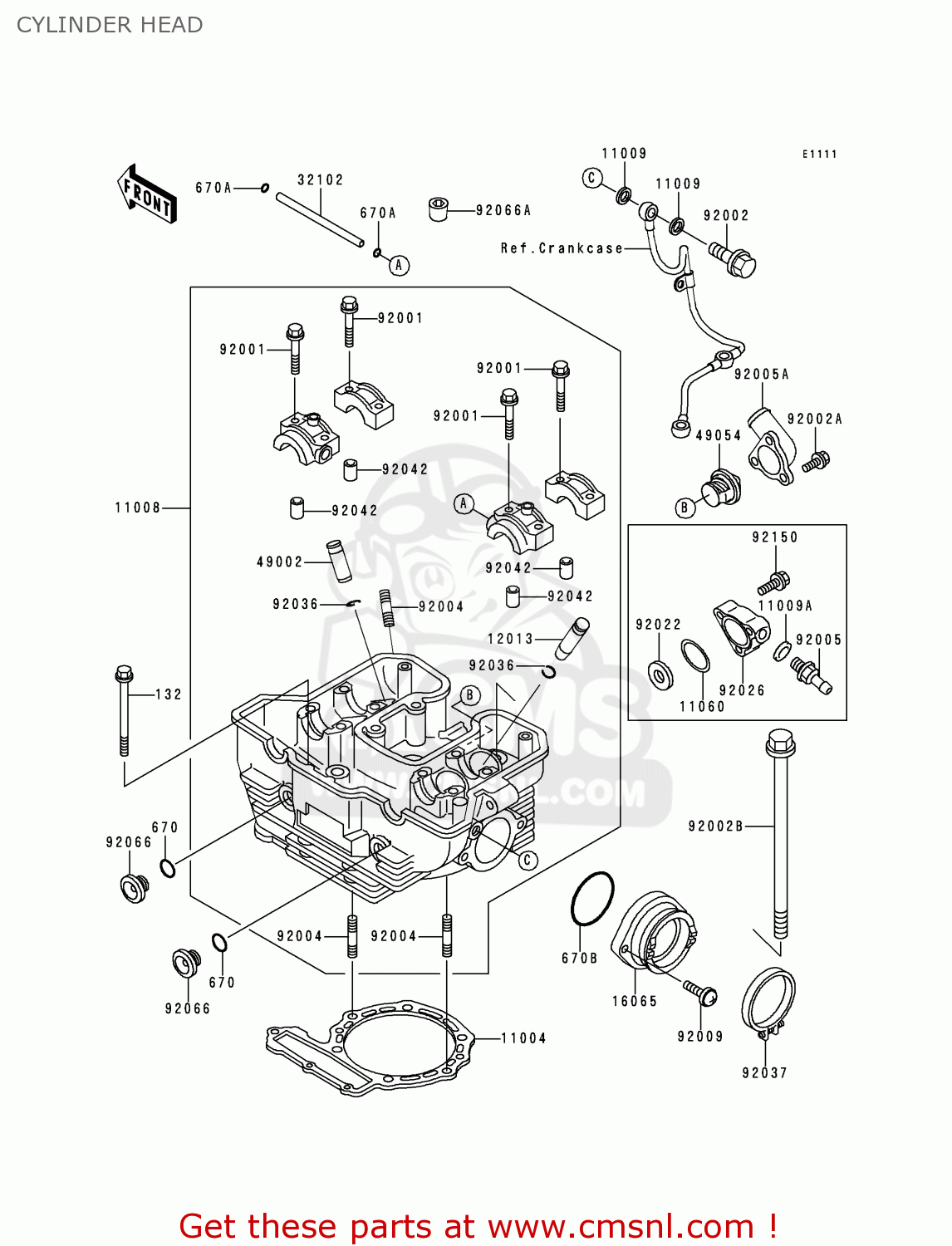

Cylinder head diagram KL650C4 KLR650 1998 UNITED KINGDOM FG
CYLINDER HEAD KL650C4 KLR650 1998 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11004
110041158
ref: 11004
GASKET-HEAD (NAS)
€ 36.00
11008
110081297
ref: 11008
HEAD-COMP-CYLINDER
€ 1,198.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11060
110601300
ref: 11060
GASKET,THERMOSTAT (NAS)
€ 4.00
12013
12013009
ref: 12013
GUIDE-VALVE,INTAKE
€ 18.00
16065
160651151
ref: 16065
HOLDER-CARBURETOR
€ 24.50
32102
321021352
ref: 32102
PIPE,OIL LINE
€ 4.00
49002
490021002
ref: 49002
GUIDE,EXHAUST VALVE
€ 16.00
49054
490541053
ref: 49054
THERMOSTAT
€ 39.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92002B
920021874
ref: 92002B
BOLT,10X191
€ 15.00
92004
920041217
ref: 92004
STUD
€ 4.00
92005
920051209
ref: 92005
FITTING
€ 32.00
92005A
920051278
ref: 92005A
FITTING
€ 17.00
92009
920091325
ref: 92009
SCREW,6X20
€ 2.50
92022
92022161
ref: 92022
WASHER-THRUST,25MM
€ 7.00
92026
920261466
ref: 92026
SPACER
€ 24.50
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371486
ref: 92037
CLAMP,55MM
€ 5.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92066
920661158
ref: 92066
PLUG,CYLINDER HEAD
€ 4.00
92066A
920661227
ref: 92066A
PLUG,OIL LINE,1/8X7
€ 4.00
132
132H0685
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
670
670B2015
ref: 670
O RING,15MM
€ 1.00
670A
670D1506
ref: 670A
O RING,6MM
€ 1.00
670B
670D3048
ref: 670B
O RING,48MM
€ 4.50
92150
921501021
ref: 92150
BOLT,6X30
€ 2.50
