OIL PUMP

KL650C4 KLR650 1998 UNITED KINGDOM FG

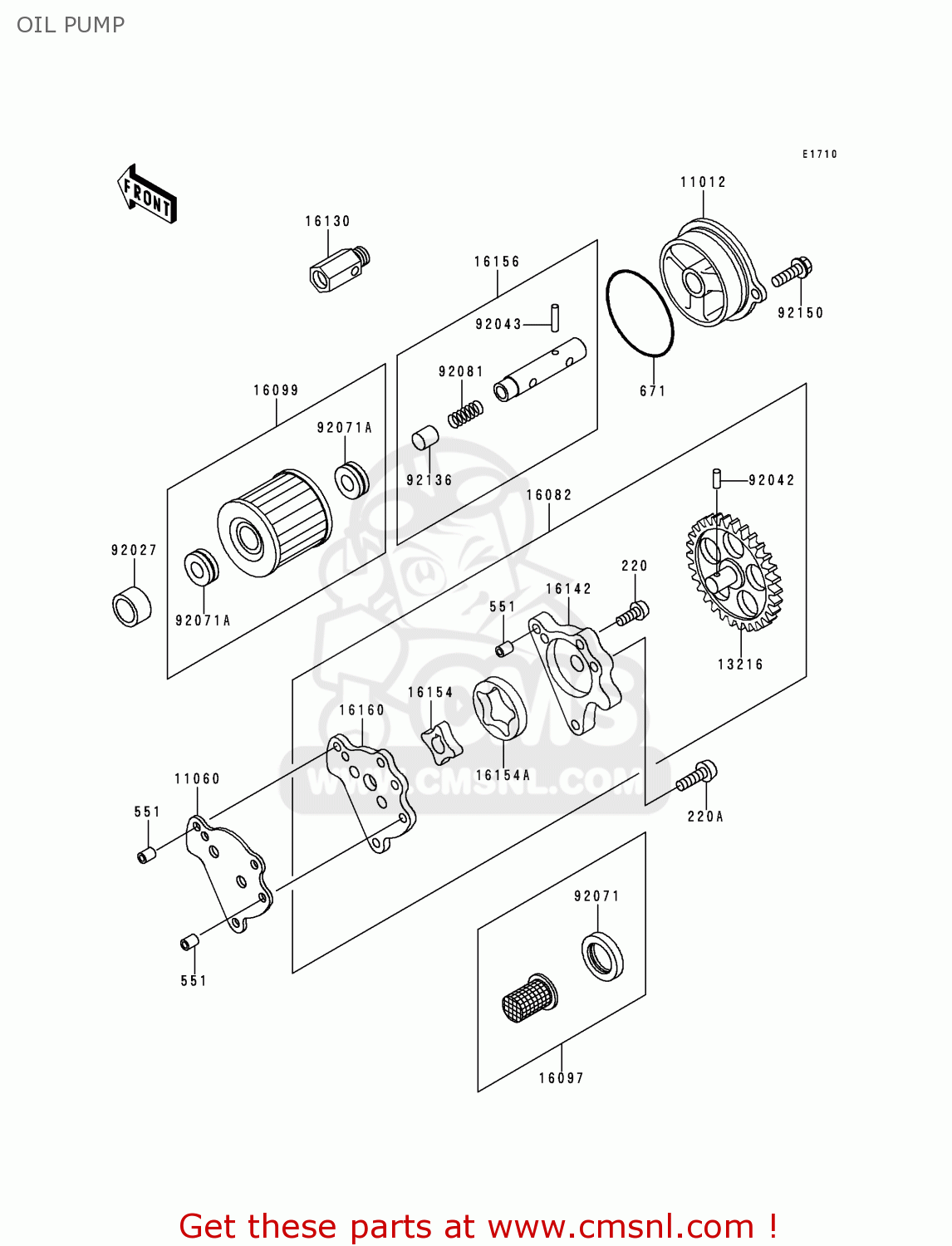

Oil pump diagram KL650C4 KLR650 1998 UNITED KINGDOM FG

OIL PUMP KL650C4 KLR650 1998 UNITED KINGDOM FG
OIL PUMP KL650C4 KLR650 1998 UNITED KINGDOM FG
OIL PUMP KL650C4 KLR650 1998 UNITED KINGDOM FG
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
551
551A0608
ref: 551
PIN,DOWEL,6X8
551A0608
€ 2.50
671
671B2555
ref: 671
O RING,55MM
671B2555
€ 4.00
11012
110121695
ref: 11012
CAP,OIL FILTER
110121695
€ 49.50
11060
110601115
ref: 11060
GASKET,OIL PUMP (NAS)
110601115
€ 3.00
13216
132161110
ref: 13216
GEAR-COMP,OIL PUMP
132161110
€ 117.50
16082
160821088
ref: 16082
PUMP-ASSY-OIL
160821088
€ 152.00
16097
160971001
ref: 16097
STRAINER ASSY,OIL
160971001
€ 5.00
16099
16099004
ref: 16099
FILTER, OIL
16099004
€ 5.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421078
ref: 16142
COVER-PUMP
161421078
€ 26.50
16154
161541069
ref: 16154
ROTOR-PUMP,INNER
161541069
€ 11.50
16154A
161541070
ref: 16154A
ROTOR-PUMP,OUTER
161541070
€ 15.00
16156
16156002
ref: 16156
PISTON-ASSY,VALVE,BY-
16156002
€ 15.50
16160
161601137
ref: 16160
BODY
161601137
€ 25.00
92027
920271695
ref: 92027
COLLAR,13X20X9
920271695
€ 6.50
92042
92042041
ref: 92042
PIN,DOWEL
92042041
€ 4.50
92043
92043123
ref: 92043
SPRING PIN
92043123
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92071A
92071101
ref: 92071A
GROMMET, OIL FILTER
92071101
€ 3.50
92081
92081043
ref: 92081
SPRING, PISTON
92081043
€ 3.50
92136
92136002
ref: 92136
PISTON
92136002
€ 3.00
92150
921501010
ref: 92150
BOLT,6X20
921501010
€ 2.00
