CARBURETOR
KL650C4 KLR650 1998 UNITED KINGDOM FG

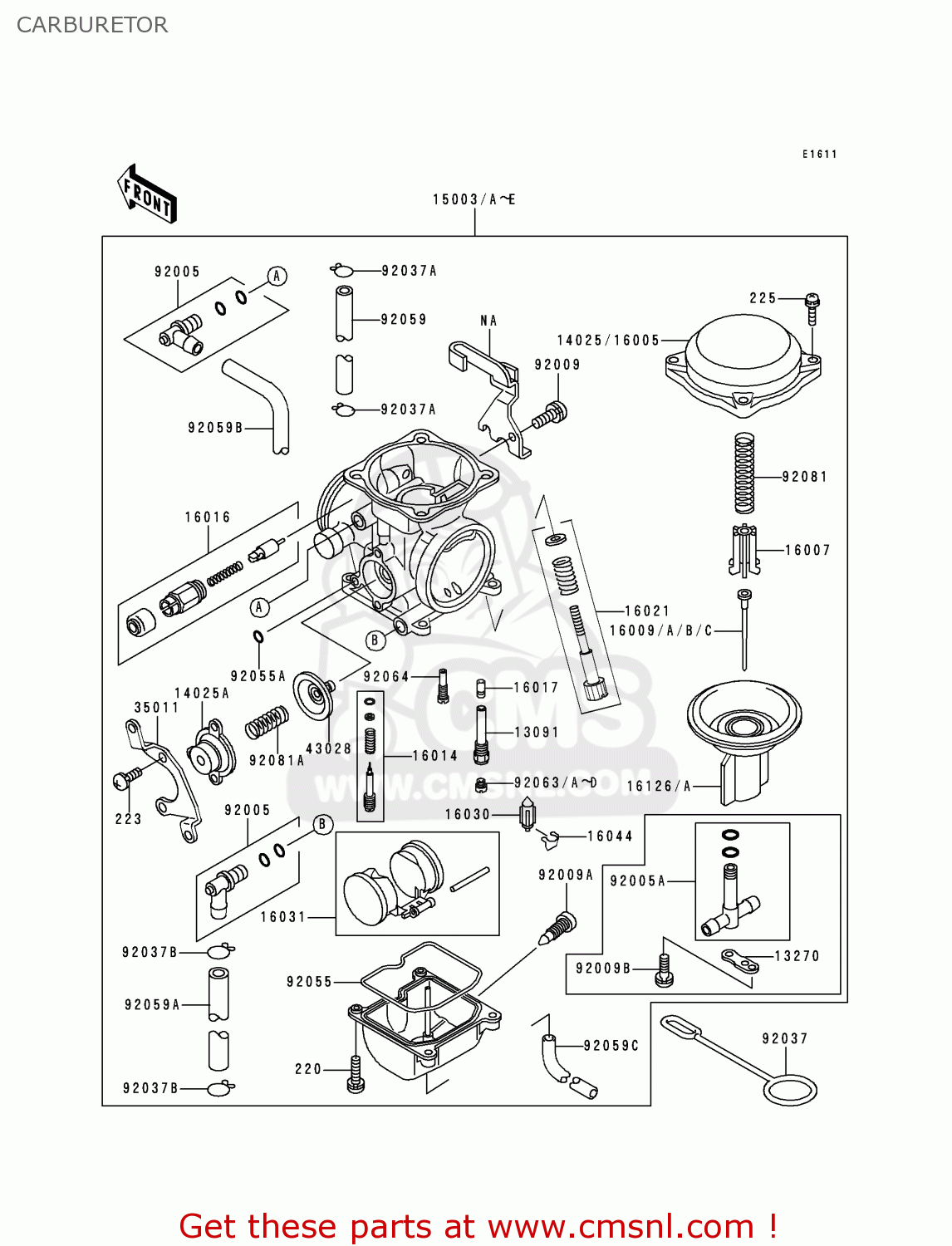

Carburetor diagram KL650C4 KLR650 1998 UNITED KINGDOM FG
CARBURETOR KL650C4 KLR650 1998 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
€ 19.50
13270
132701063
ref: 13270
PLATE,JOINT STAY
€ 21.00
14025
140251890
ref: 14025
COVER,MIXING CHAMBER
€ 58.50
14025A
140251903
ref: 14025A
COVER,AIR CUT VALVE
€ 43.00
15003A
150031120
ref: 15003A
UK
CARBURETOR-ASSY
€ 503.50
15003D
150031295
ref: 15003D
FG
CARBURETOR-ASSY
€ 576.50
16005
160051079
ref: 16005
FG
TOP-CHAMBER,25KW
€ 50.50
16007
160071113
ref: 16007
SEAT-SPRING,DIAPHRAGM
€ 13.50
16009
160091537
ref: 16009
UK
NEEDLE-JET,N74C
€ 24.00
16009A
160091846
ref: 16009A
FG
NEEDLE-JET,N2PB
€ 21.50
16009C
160091865
ref: 16009C
FG
NEEDLE-JET,N76U
€ 20.00
16014
160141082
ref: 16014
SCREW-PILOT AIR
€ 25.50
16016
160161087
ref: 16016
PLUNGER
€ 67.50
16017
160171254
ref: 16017
JET-NEEDLE,#6
€ 37.50
16021
160211201
ref: 16021
SCREW-THROTTLE STOP
€ 36.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261294
ref: 16126
VALVE,VACUUM
€ 161.50
35011
350111232
ref: 35011
STAY,AIR CUT VALVE
€ 25.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92005
920051283
ref: 92005
FITTING,L-TYPE
€ 10.00
92005A
920051290
ref: 92005A
FITTING
€ 28.00
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92009B
920091704
ref: 92009B
SCREW
€ 2.50
92037
92037134
ref: 92037
CLAMP,OVER FLOW PIPE
€ 7.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
€ 3.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92055A
920551245
ref: 92055A
RING-O
€ 3.50
92059
920591377
ref: 92059
TUBE,5X9X180
€ 16.50
92059A
920591463
ref: 92059A
TUBE,6.5X11.5X150
€ 20.00
92059B
920591727
ref: 92059B
TUBE,6.5X9.5X430
€ 18.00
92059C
920591838
ref: 92059C
TUBE,3.5X6.5X390
€ 14.50
92063
920631013
ref: 92063
MAIN JET,#140
€ 9.00
92063A
920631016
ref: 92063A
MAIN JET,#142
€ 9.00
92063B
920631017
ref: 92063B
MAIN JET,#145
€ 9.00
92063C
920631324
ref: 92063C
JET-MAIN,#148
€ 9.00
92063D
920631330
ref: 92063D
JET-MAIN,#150
€ 9.00
92064
920641108
ref: 92064
JET-PILOT,#40
€ 11.00
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
223
223C0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92081
920811718
ref: 92081
SPRING,DIAPHRAGM VALV
€ 18.50
92081A
920811719
ref: 92081A
SPRING,AIR CUT VALVE
€ 8.50
