TAIL LAMP
KL250C1 1983 EUROPE UK IT NR

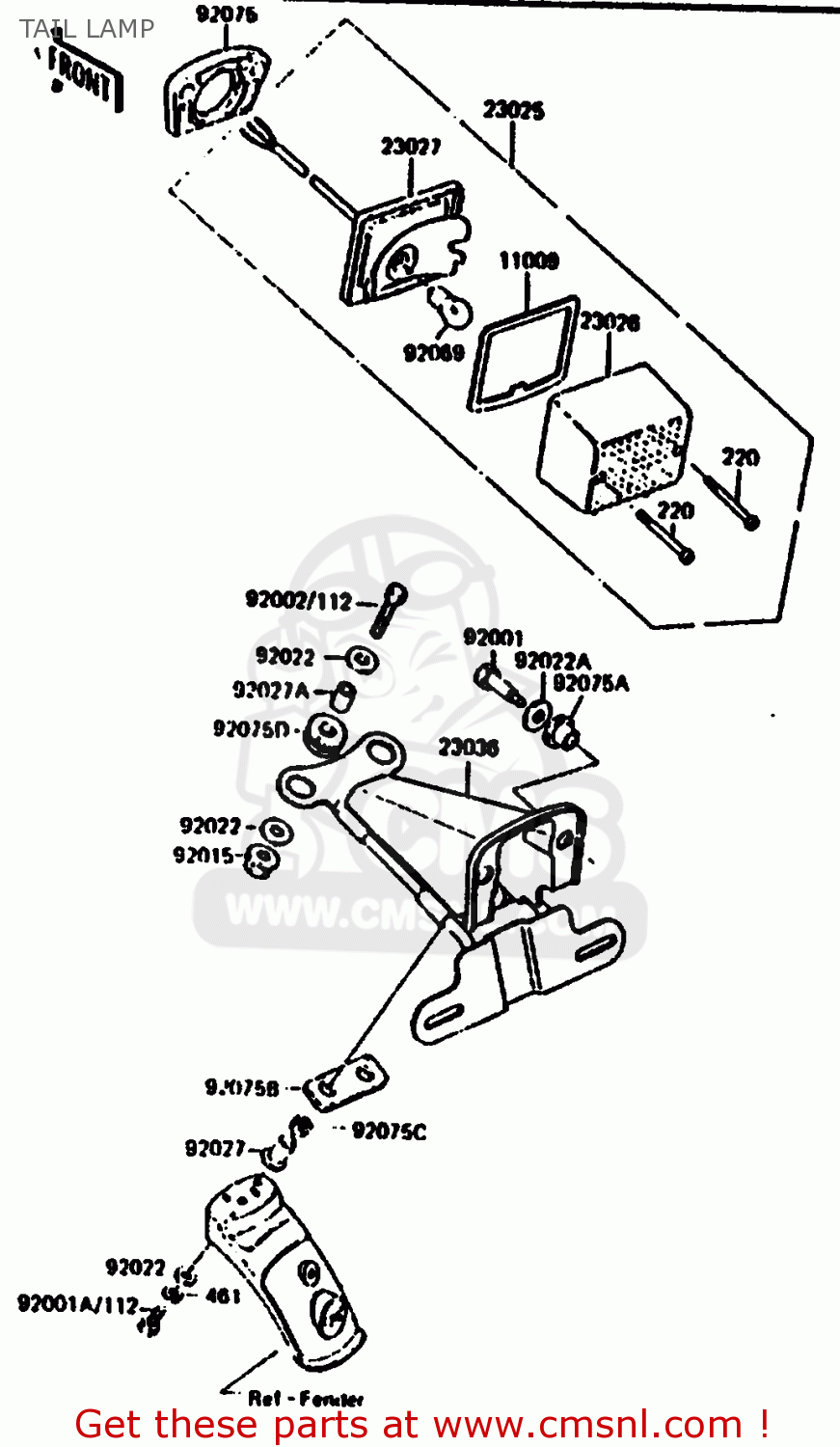

Tail lamp diagram KL250C1 1983 EUROPE UK IT NR
TAIL LAMP KL250C1 1983 EUROPE UK IT NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
23025
230251012
ref: 23025
LAMP UNIT,TAIL
€ 90.00
23026
230261009
ref: 23026
LENS,TAIL LAMP
€ 45.00
23027
230271006
ref: 23027
BODY-COMP-TAIL LAMP
€ 64.50
23036
230361041
ref: 23036
BRACKET-TAIL LAMP
€ 88.50
92001
920011197
ref: 92001
BOLT
€ 2.00
92001A
920011770
ref: 92001A
BOLT
€ 2.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
92022195
ref: 92022A
WASHER-PLAIN
€ 2.50
92027
920271277
ref: 92027
COLLAR
€ 8.50
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
92069062
ref: 92069
BULB,6V 21/5W
€ 12.50
92075
920751094
ref: 92075
DAMPER,TAIL LAMP
€ 10.00
92075A
920751162
ref: 92075A
DAMPER
€ 2.50
92075B
920751163
ref: 92075B
DAMPER RUBBER
€ 2.50
92075C
92075205
ref: 92075C
DAMPER RUBBER
€ 0.50
92075D
92075209
ref: 92075D
DAMPER RUBBER
€ 3.00
112
112B0640
ref: 112
BOLT HEX HEAD
€ 2.50
220
220R0440
ref: 220
SCREW-PAN-CROS,4X40
€ 3.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
