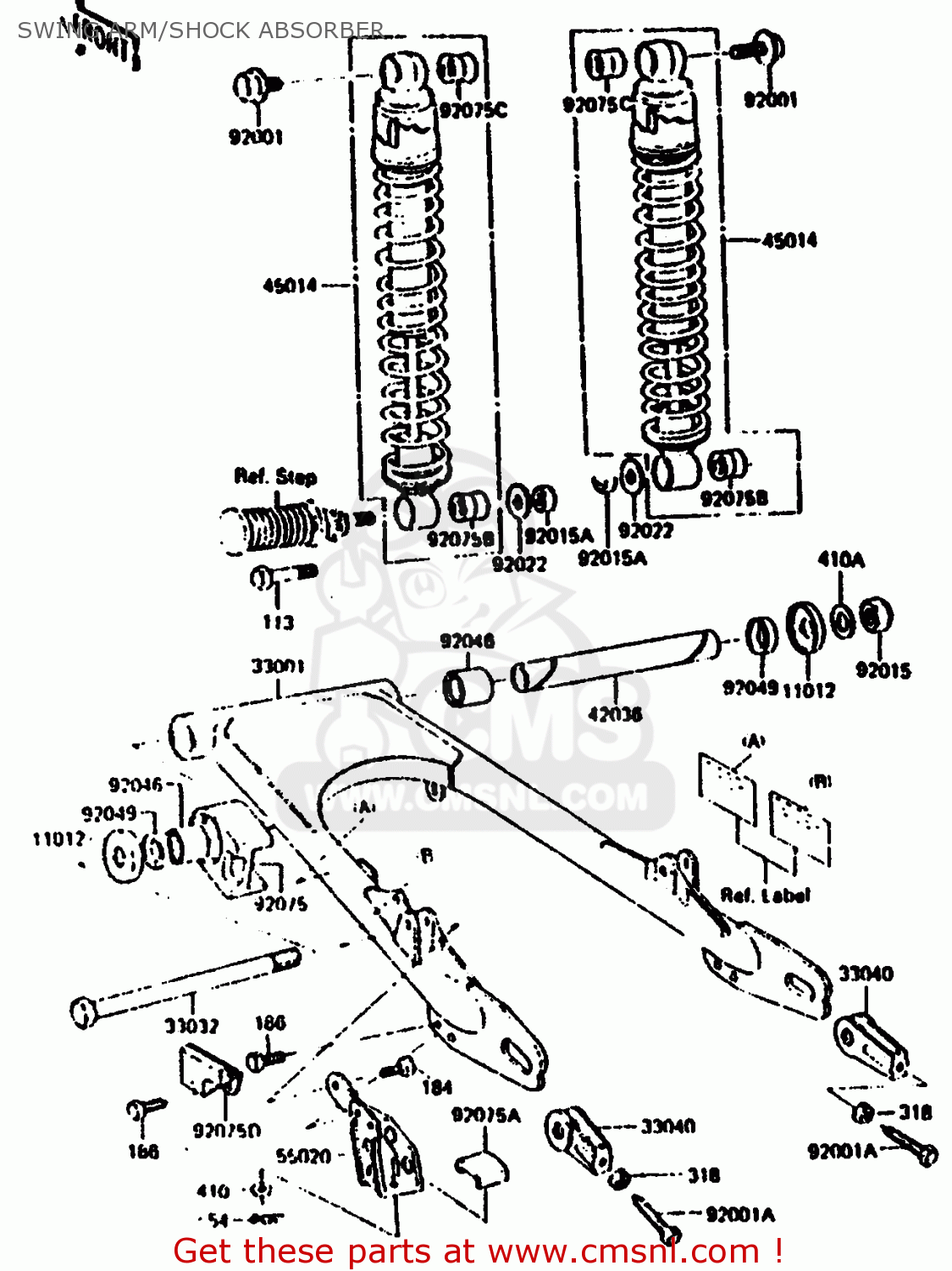

SWING ARM/SHOCK ABSORBER

ref

part #

description

quantity

11012

110121029
ref: 11012

CAP,SWING ARM

€ 13.50

33001

330011151
ref: 33001

ARM-COMP-SWING

€ 271.00

33032

33032037
ref: 33032

SHAFT-SWING ARM,L=237

€ 33.50

33040

330401010
ref: 33040

ADJUSTER-CHAIN

€ 14.00

42036

420361004
ref: 42036

SLEEVE,SWING ARM

€ 36.00

45014

450141091
ref: 45014

SHOCKABSORBER,RR

€ 321.00

55020

550201019
ref: 55020

GUARD,CHAIN

€ 14.50

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92001A

920011399
ref: 92001A

BOLT,8X50

€ 6.00

92015

920151009
ref: 92015

NUT,14MM

€ 6.00

92015A

92019004
ref: 92015A

NUT-LOCK,10MM

€ 2.00

92022

92022044
ref: 92022
EU, IT, UK

WASHER,10.5X26X2.3

€ 2.50

92046

92046061
ref: 92046

NEEDLE BEARING

€ 24.00

92049

920491059
ref: 92049

OIL SEAL,MHA22284

€ 7.00

92075

920751144
ref: 92075

DAMPER,CHAIN PROTECTO

€ 10.50

92075A

920751145
ref: 92075A

DAMPER

€ 12.50

92075B

920751216
ref: 92075B

BUSHING,SHOCK ABSORBR

€ 12.00

92075C

920751217
ref: 92075C

DAMPER,SHOCKABSORBER,

€ 10.00

92075D

920751309
ref: 92075D

DAMPER,SIDE STAND

€ 15.50

113

113G1040
ref: 113
NR

BOLT,HEX HEAD,10X40

€ 5.50

184

184B0812
ref: 184

BOLT-UPSET-WP-SMALL

€ 0.50

186

186B0620
ref: 186

BOLT-UPSET-WP

€ 1.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

410A

410B1400
ref: 410A

410B1400

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00
