ENGINE COVER
KL250C1 1983 EUROPE UK IT NR

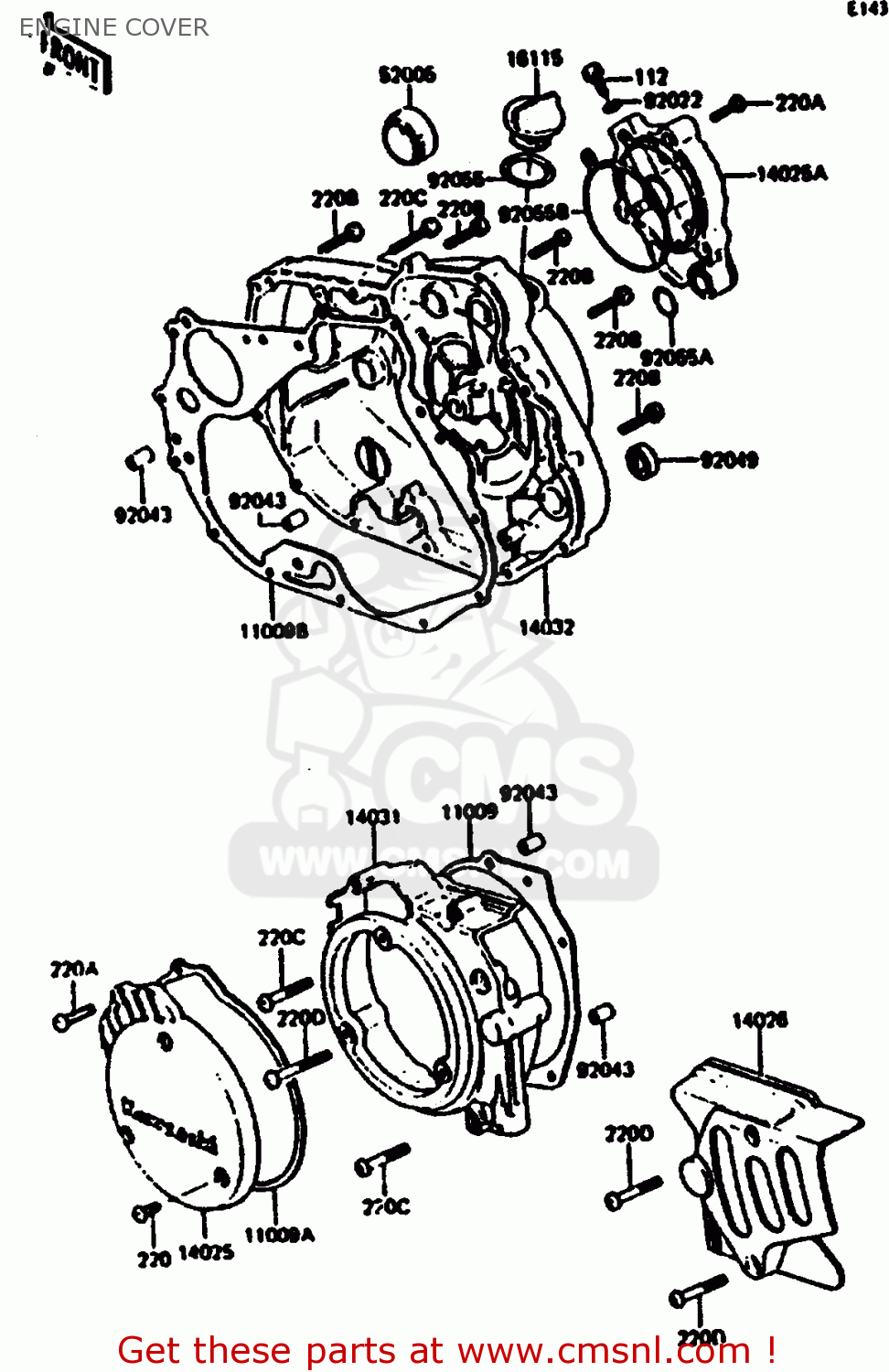

Engine cover diagram KL250C1 1983 EUROPE UK IT NR
ENGINE COVER KL250C1 1983 EUROPE UK IT NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091009
ref: 11009
GASKET,L.H,ENGINE COV (MCA)
€ 16.00
11009A
110091121
ref: 11009A
GASKET,GENARATOR COVE (MCA)
€ 12.00
11009B
110091306
ref: 11009B
GASKET CLUTCH COVER (MCA)
€ 39.00
14025
140251104
ref: 14025
COVER,DYNAMO,F.BLACK
€ 55.50
14025A
140251559
ref: 14025A
COVER,OIL FILTER
€ 37.50
14026
140261022
ref: 14026
COVER-CHAIN,BLACK
€ 12.50
14031
140311080
ref: 14031
COVER-GENERATOR
€ 158.50
14032
140321089
ref: 14032
COVER-CLUTCH
€ 128.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92050078
ref: 92049
OIL SEAL
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
92055098
ref: 92055A
RING-O
€ 5.50
92055B
920551048
ref: 92055B
RING-O,FILTER COVER
€ 9.50
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
220B
220B0630
ref: 220B
SCREW-PAN HEAD,6X30
€ 2.50
220C
220B0640
ref: 220C
SCREW-PAN HEAD,6X40
€ 2.00
220B
220B0650
ref: 220B
SCREW-PAN HEAD,6X50
€ 2.00
