FENDER
KL250C1 1983 EUROPE UK IT NR

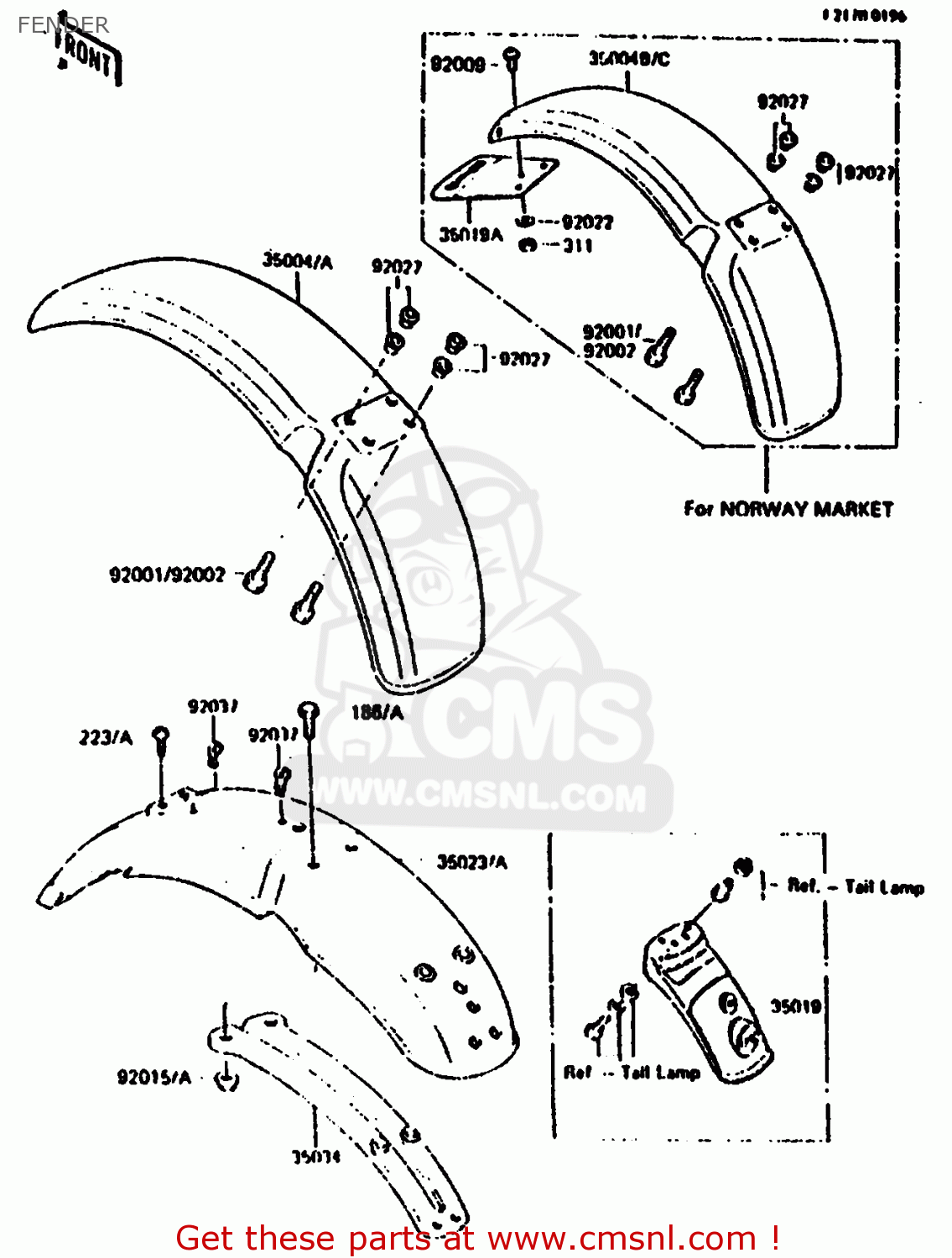

Fender diagram KL250C1 1983 EUROPE UK IT NR
FENDER KL250C1 1983 EUROPE UK IT NR
×
prices are in EUR
ref
part #
description
quantity
35004
3500410286B
ref: 35004
EU, IT, UK
FENDER-FRONT,S.RED
€ 39.50
35004A
3500410286W
ref: 35004A
EU, IT, UK
FENDER-FRONT,L.GREEN
€ 75.50
35004B
3500410996B
ref: 35004B
NR
FENDER-FRONT,S.RED
€ 39.00
35004C
3500410996W
ref: 35004C
NR
FENDER-FRONT,L.GREEN
€ 39.50
35019
350191028
ref: 35019
FLAP,FENDER,RR
€ 20.50
35019A
350191067
ref: 35019A
NR
FLAP,FENDER,FR
€ 16.50
35023
3502310136B
ref: 35023
FENDER-REAR,S.RED
€ 109.00
35023A
3502310136W
ref: 35023A
FENDER-REAR,L.GREEN
€ 94.00
35034
350341032
ref: 35034
REINFORCE,RR FENDER
€ 74.50
92001
920011765
ref: 92001
BOLT,6X20
€ 3.00
92009
920091286
ref: 92009
NR
SCREW,6X10
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
NR
WASHER,6.5X20X1.6
€ 1.00
92027
920271166
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
186
186B0618
ref: 186
BOLT-UPSET-WP
€ 2.50
223
223B0612
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
311
311B0600
ref: 311
NR
NUT,6MM
€ 0.50
