IGNITION SWITCH/LOCK
KL250C1 1983 EUROPE UK IT NR

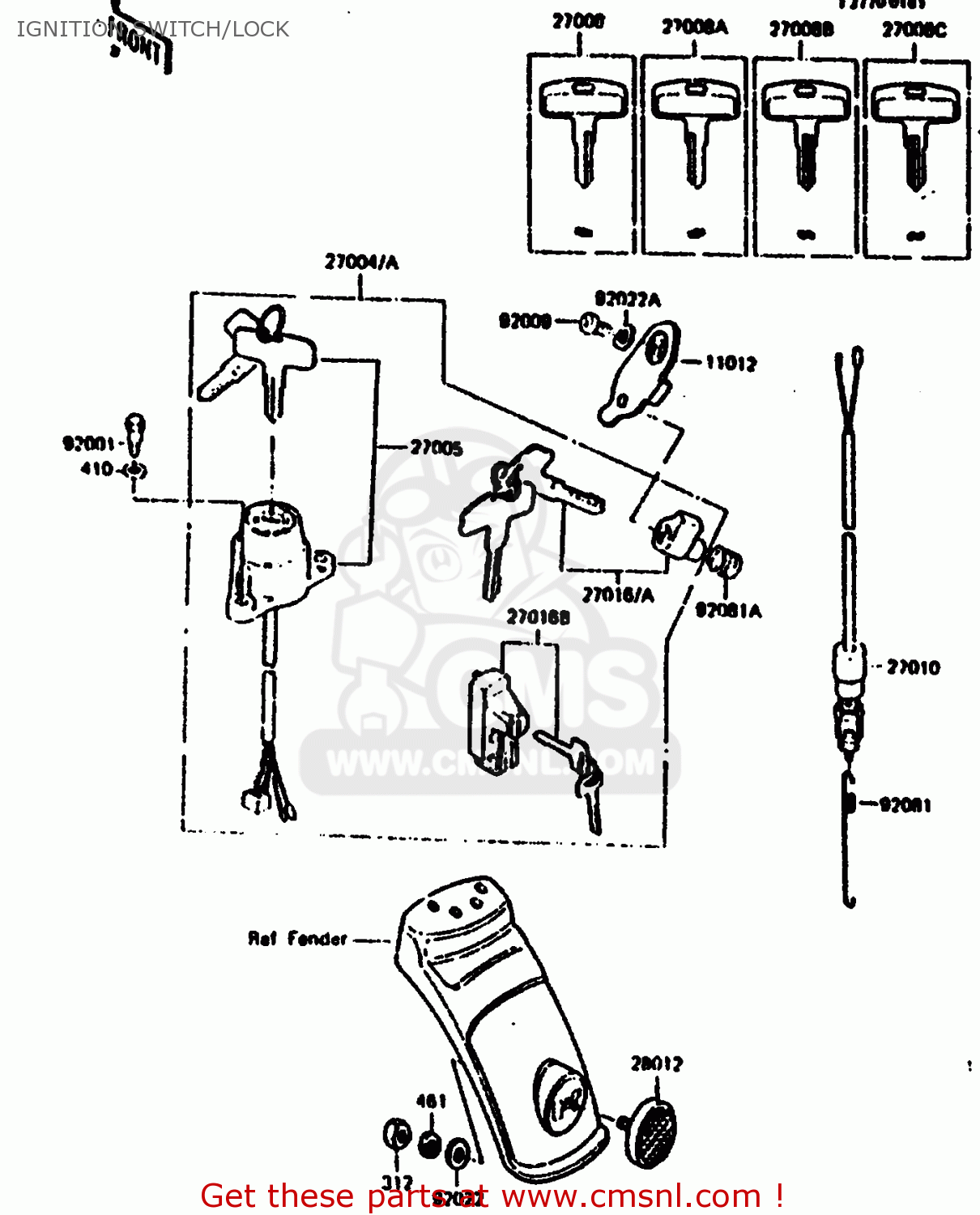

Ignition switch/lock diagram KL250C1 1983 EUROPE UK IT NR
IGNITION SWITCH/LOCK KL250C1 1983 EUROPE UK IT NR
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
CAP,STEERING LOCK
€ 4.50
27004
270045059
ref: 27004
EU, IT, UK
SWITCH-ASSY,ALL
€ 95.50
27004A
270045178
ref: 27004A
NR
SWITCH-ASSY (NR)
€ 79.00
27005
270051037
ref: 27005
SWITCH ASSY,IGNITION
€ 73.50
27008
270081024
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 14.00
27008A
270081025
ref: 27008A
(OPTION)
KEY-LOCK,BLANK
€ 14.00
27008B
270081026
ref: 27008B
(OPTION)
KEY-LOCK,BLANK
€ 10.50
27008C
270081027
ref: 27008C
(OPTION)
KEY-LOCK,BLANK
€ 10.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27016
27016035
ref: 27016
EU, IT, UK
LOCK ASSY,STEERING
€ 36.00
27016A
ref: 27016A
NR (LOCAL PROCUREMEN
27016B
270165032
ref: 27016B
LOCK ASSY,HELMET
€ 38.00
28012
280121001
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.50
92001
92007026
ref: 92001
BOLT-HEX HEAD,6MM
€ 6.00
92009
92008007
ref: 92009
SCREW-TAPPING
€ 2.50
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
€ 2.50
92022A
92097003
ref: 92022A
WASHER
€ 2.50
92081
27011017
ref: 92081
SPRING,BRK LIGHT SW
€ 6.50
92081A
27032001
ref: 92081A
SPRING-STEERING LOCK
€ 3.50
312
312B0500
ref: 312
NUT-HEX,5MM
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
