FRAME FITTING

KL250C1 1983 EUROPE UK IT NR

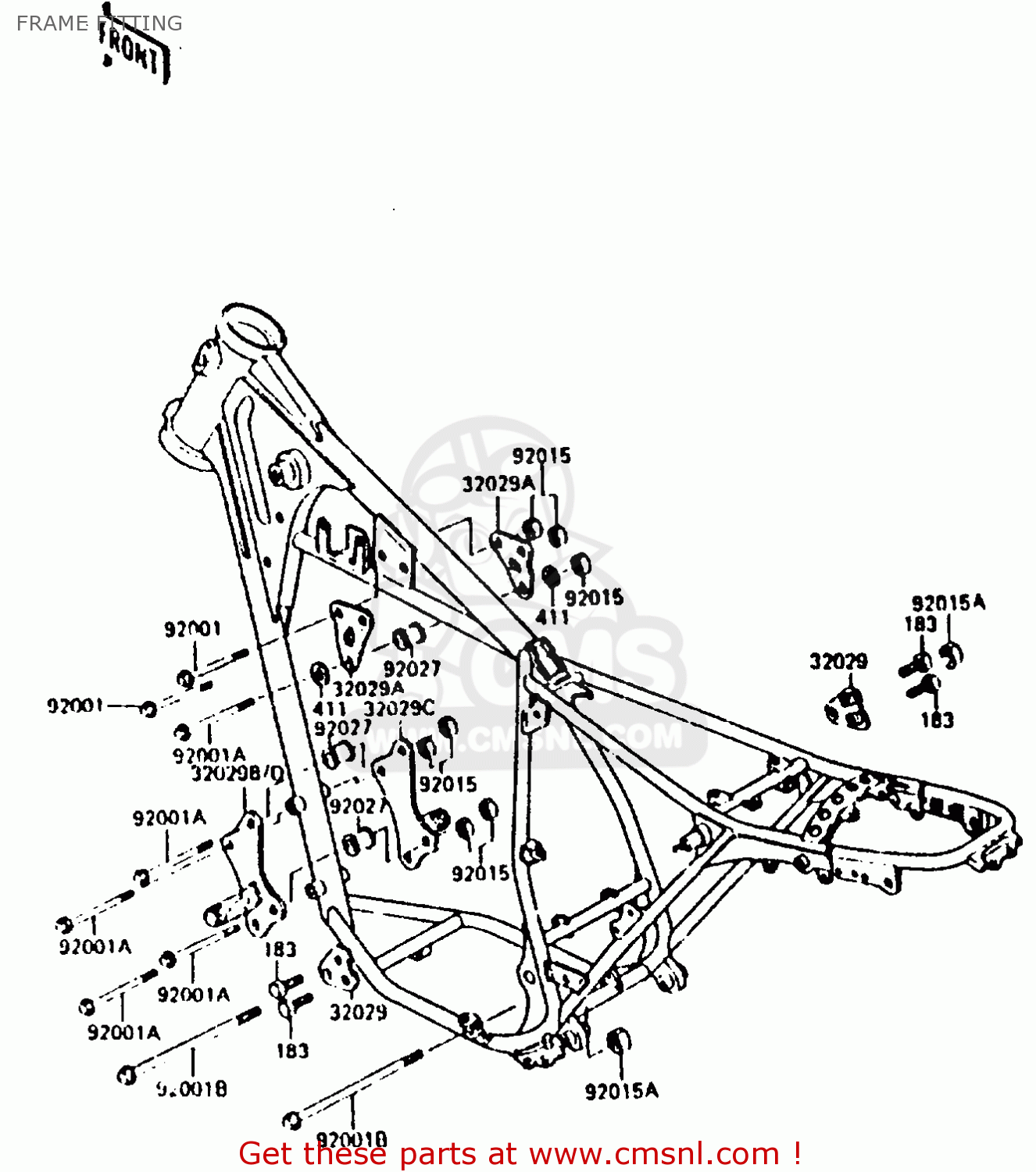

Frame fitting diagram KL250C1 1983 EUROPE UK IT NR

prices are in EUR

ref

part #

description

quantity

32029

320291008
ref: 32029

BRACKET-ENGINE

€ 7.00

32029A

320291083
ref: 32029A

BRACKET,ENGINE,HEAD

€ 6.50

32029B

320291127
ref: 32029B

BRACKET,ENGINE,L.H

€ 10.50

32029C

320291128
ref: 32029C

BRACKET,ENGINE,R.H

€ 8.50

92001

920011579
ref: 92001

BOLT,FLANGED,8X45

€ 3.00

92001A

920011596
ref: 92001A

BOLT,FLANGED,8X85

€ 3.50

92001B

920011602
ref: 92001B

BOLT,FLANGED,10X110

€ 7.50

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

92019004
ref: 92015A

NUT-LOCK,10MM

€ 2.00

92027

920271180
ref: 92027

COLLAR,L=20

€ 4.50

183

183G0816
ref: 183

BOLT-UPSET-WS-SMALL

€ 2.50

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50
