CARBURETOR
KL250C1 1983 EUROPE UK IT NR

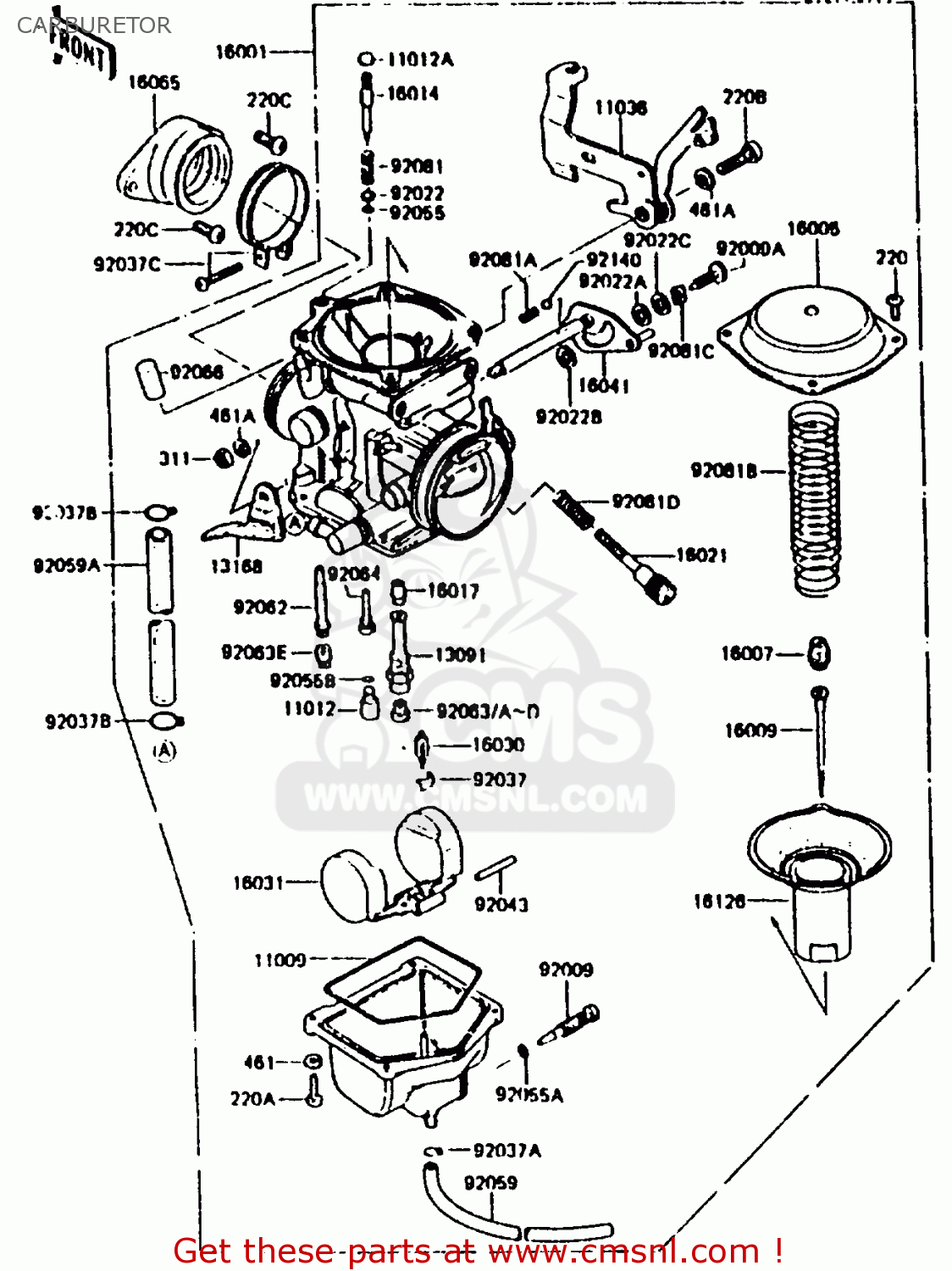

Carburetor diagram KL250C1 1983 EUROPE UK IT NR
CARBURETOR KL250C1 1983 EUROPE UK IT NR
×
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
O RING,FLOAT CHAMBER
€ 15.00
11012
110121128
ref: 11012
CAP,POLYACETAL
€ 13.50
11012A
110121289
ref: 11012A
CAP,PILOT AIR SCREW
€ 2.50
11036
110361933
ref: 11036
BRACKET-A,THROTTLE CA
€ 37.00
13091
130911050
ref: 13091
HOLDER,NEEDLE JET,N41
€ 16.00
13168
131681065
ref: 13168
LEVER,CHOKE
€ 8.50
16001
160011779
ref: 16001
CARBURETOR
€ 458.00
16005
160051012
ref: 16005
TOP-CHAMBER,MIXING
€ 24.00
16007
160071022
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091138
ref: 16009
NEEDLE-JET,N01B
€ 22.50
16014
160141011
ref: 16014
SCREW-PILOT AIR
€ 9.00
16017
160171061
ref: 16017
NEEDLE,JET.
€ 33.00
16021
160211031
ref: 16021
SCREW-THROTTLE STOP
€ 9.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311001
ref: 16031
FLOAT
€ 38.50
16041
160411030
ref: 16041
SHAFT-CARBURETOR,CHOK
€ 35.50
16065
160651063
ref: 16065
HOLDER-CARBURETOR
€ 15.50
16126
161261057
ref: 16126
VALVE,VACUUM
€ 126.00
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091183
ref: 92009A
SCREW,LINK SHAFT
€ 7.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221199
ref: 92022A
WASHER,6.1X11X0.8,POL
€ 3.00
92022B
920221200
ref: 92022B
WASHER,6.4X9.4X0.8,PO
€ 2.00
92022C
920221207
ref: 92022C
WASHER,6.5X11X1.2,STE
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371185
ref: 92037B
CLAMP,FUEL TAP HOSE
€ 3.50
92037C
92037201
ref: 92037C
CLAMP,53MM
€ 5.50
92043
920431002
ref: 92043
PIN,FLOAT
€ 3.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551088
ref: 92055B
RING-O
€ 12.50
92059
920591046
ref: 92059
TUBE,3.5X6.5X270
€ 9.50
92059A
920591267
ref: 92059A
TUBE,5.3X10.5X140
€ 13.00
92062
920621001
ref: 92062
NOZZLE,MAIN
€ 15.50
92063
920631071
ref: 92063
(RACING USE ONLY)
JET-MAIN,#118
€ 9.50
92063A
920631114
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#110
€ 9.50
92063B
920631116
ref: 92063B
(RACING USE ONLY)
JET-MAIN,#108
€ 9.50
92063C
920631117
ref: 92063C
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#115
€ 9.50
92063E
920631193
ref: 92063E
JET-MAIN,PRI,#72
€ 8.00
92064
920641001
ref: 92064
JET-PILOT,#35
€ 14.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811249
ref: 92081A
SPRING
€ 4.00
92081B
920811257
ref: 92081B
SPRING
€ 21.00
92081C
920811262
ref: 92081C
SPRING,WAVED WASHER
€ 3.00
92081D
920811545
ref: 92081D
SPRING,STOP SCREW
€ 4.00
92140
921401004
ref: 92140
BALL,STEEL,3/16"
€ 1.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0412
ref: 220A
SCREW-PAN CROS 4X12
€ 0.50
220B
220B0520
ref: 220B
SCREW-PAN-CROS
€ 0.50
220C
220B0614
ref: 220C
SCREW-PAN HEAD,6X14
€ 2.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
