GENERATOR/REGULATOR
KL250A1 KLR250 1978 CANADA

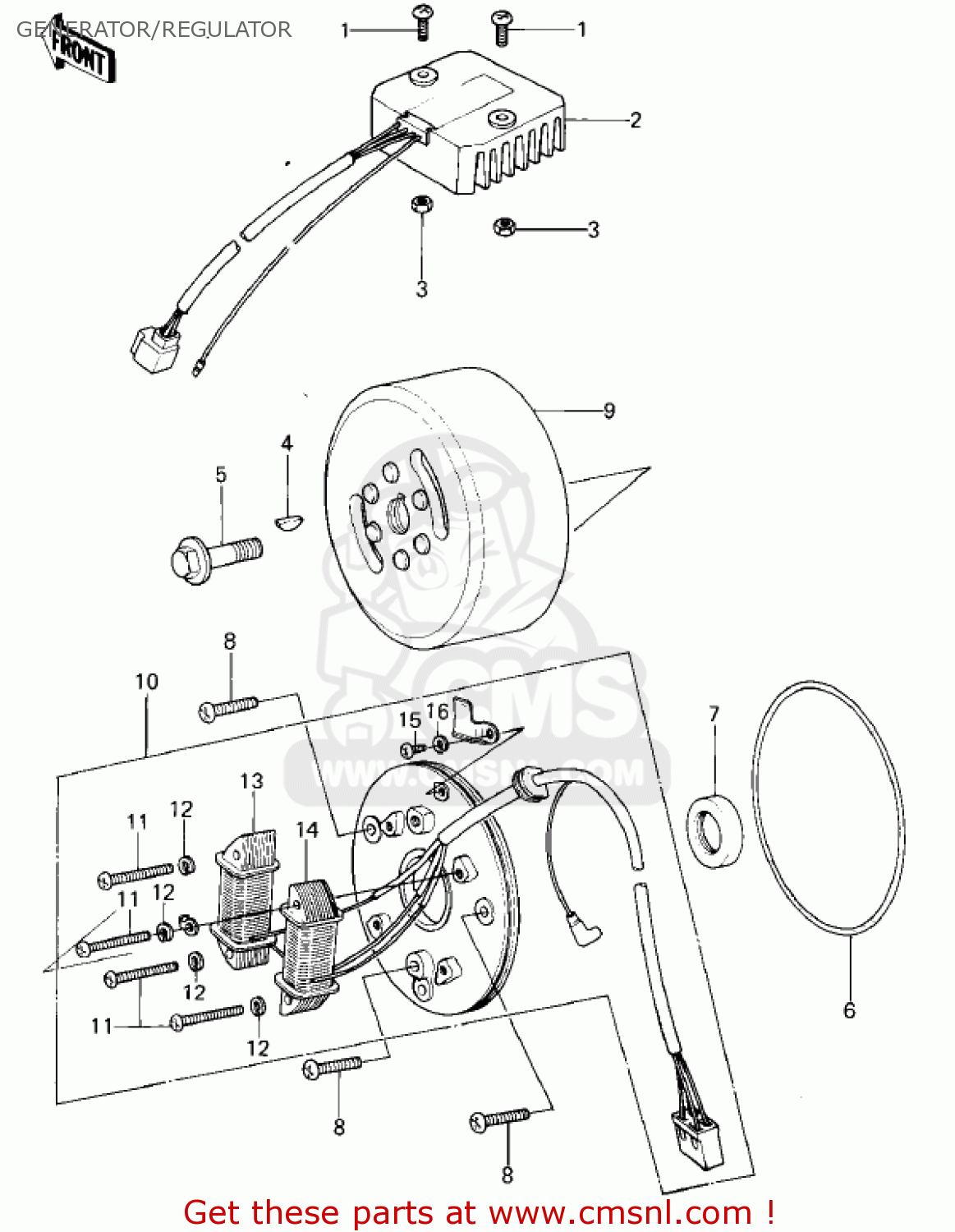

Generator/regulator diagram KL250A1 KLR250 1978 CANADA
GENERATOR/REGULATOR KL250A1 KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0614
ref: 1
SCREW-PAN HEAD,6X14
€ 2.00
2
210661002
ref: 2
REGULATOR,VOLTAGE
€ 136.50
3
311G0600
ref: 3
NUT,6M/M
€ 0.50
4
92038001
ref: 4
WOODRUFF KEY
€ 3.00
5
920011201
ref: 5
BOLT,ROTOR,10X40
€ 7.00
6
920551006
ref: 6
RING-O,MAGNETO BASE
€ 5.50
7
920491004
ref: 7
OIL SEAL,S-27408-LHS
€ 7.00
8
220B0625
ref: 8
SCREW-PAN HEAD,6X25
€ 1.50
9
210071002
ref: 9
FLYWHEEL,MAGNETO
€ 219.00
10
210031003
ref: 10
STATOR ASSY
€ 281.50
11
220B0535
ref: 11
SCREW-PAN-CROS
€ 2.00
12
461F0500
ref: 12
WASHER-SPRING,5MM
€ 0.50
13
210491003
ref: 13
COIL,EXCITING
€ 65.50
14
210471006
ref: 14
COIL,LIGHTING
€ 97.50
15
220B0406
ref: 15
SCREW-PAN-CROS,4X6
€ 2.50
16
461F0400
ref: 16
WASHER-SPRING,4MM
€ 0.50
