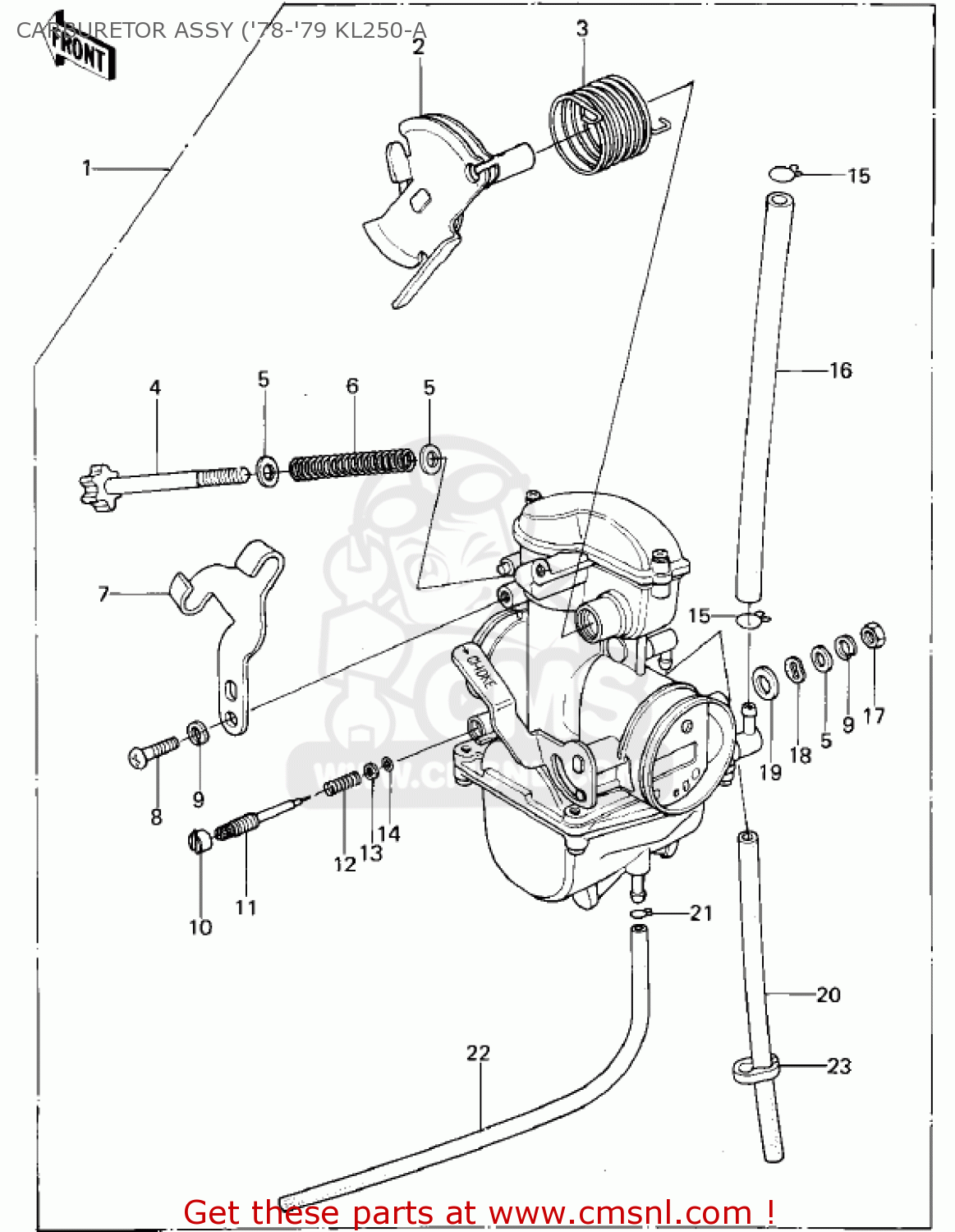

CARBURETOR ASSY ('78-'79 KL250-A
KL250A1 KLR250 1978 CANADA
Carburetor assy ('78-'79 kl250-a diagram KL250A1 KLR250 1978 CANADA
CARBURETOR ASSY ('78-'79 KL250-A KL250A1 KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160011148
ref: 1
KL250-A1
CARBURETOR ASSY
€ 443.00
1
160011148
ref: 1
KL250-A2~
CARBURETOR ASSY
€ 443.00
1
160011405
ref: 1
KL250-A1A~
CARBURETOR,OUTSIDE,RH
€ 228.50
2
160411001
ref: 2
USE FOR 16001-1009
SHAFT,THROTTLE
€ 32.50
2
160411002
ref: 2
USE FOR 16001-1045
THROTTLE SHAFT
€ 36.00
3
920811056
ref: 3
SPRING
€ 13.50
4
160211001
ref: 4
SCREW, THROTTLE STOP
€ 14.50
5
410B0500
ref: 5
WASHER-PLAIN-SMALL,5M
€ 0.50
6
920811005
ref: 6
SPRING,THR.STOP SCREW
€ 8.50
7
131691095
ref: 7
PLATE,STAY
€ 14.50
8
220B0514
ref: 8
ACREW-PAN HEAD,5X14
€ 2.50
9
461F0500
ref: 9
WASHER-SPRING,5MM
€ 0.50
10
110123727
ref: 10
NOT REQUIRED FOR 160
CAP,JET NEEDLE
€ 2.00
11
160141011
ref: 11
SCREW-PILOT AIR
€ 9.00
12
920811002
ref: 12
SPRING,PIROT ADJ SCRW
€ 3.50
13
920221003
ref: 13
WASHER,PLAIN
€ 2.50
14
920551002
ref: 14
O RING,PILOT ADJUST
€ 2.50
15
920371040
ref: 15
CLAMP,FUEL HOSE
€ 2.00
16
920591001
ref: 16
HOSE, FUEL INLET
€ 13.50
17
311B0500
ref: 17
NUT-HEX
€ 0.50
18
920221055
ref: 18
WASHER,SPRING
€ 3.00
19
410B0600
ref: 19
WASHER-PLAIN-SMALL,6M
€ 0.50
20
92059110
ref: 20
HOSE
€ 11.50
21
920371142
ref: 21
CLAMP,TUBE
€ 2.50
22
920591046
ref: 22
TUBE,3.5X6.5X270
€ 9.50
23
920371067
ref: 23
CLAMP,OVRFLW-ARVNT
€ 3.00
