FRONT HUB/BRAKE ('78-'79 KL250-A
KL250A1 KLR250 1978 CANADA

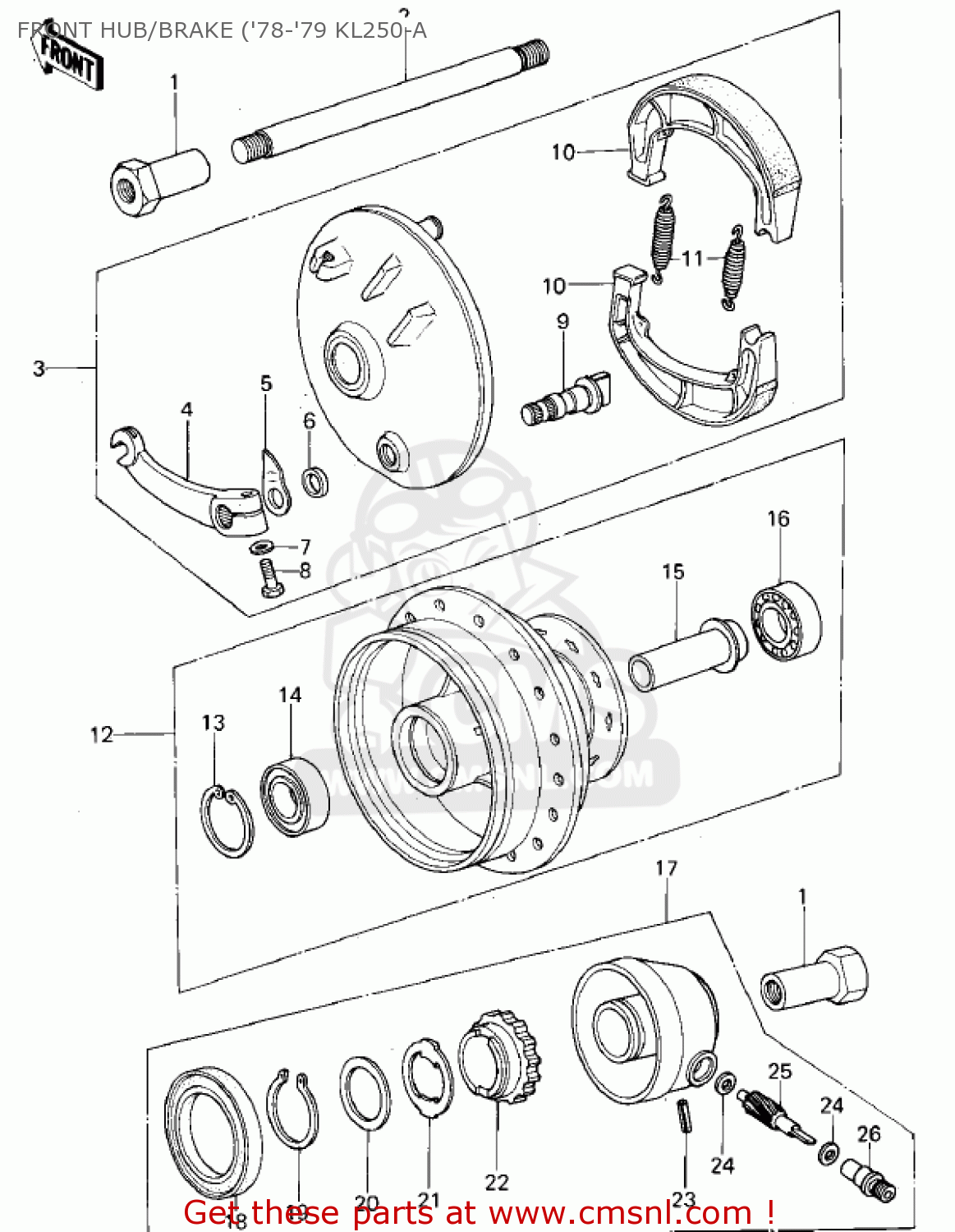

Front hub/brake ('78-'79 kl250-a diagram KL250A1 KLR250 1978 CANADA
FRONT HUB/BRAKE ('78-'79 KL250-A KL250A1 KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41069031
ref: 1
COLLAR,FRONT AXLE
€ 20.50
2
41068048
ref: 2
L=216 M/M
AXLE,FRONT
€ 26.50
3
41035082
ref: 3
BUFF/FINISH
PANEL ASSY,FRONT BRAK
€ 140.50
4
41053028
ref: 4
LEVER,BRAKE CAM
€ 21.00
5
41085017
ref: 5
INDICATOR,BRAKE SHOE
€ 7.50
6
41051001
ref: 6
DUST SHIELD-BRAKE CAM
€ 2.50
7
410B0600
ref: 7
WASHER-PLAIN-SMALL,6M
€ 0.50
8
112G0625
ref: 8
BOLT-UPSET,6X25
€ 4.00
9
42026027
ref: 9
CAM SHAFT,BRAKE
€ 9.00
10
410481068
ref: 10
SHOE-BRAKE (NAS)
€ 16.00
11
42020004
ref: 11
SPRING-BRAKE SHOE
€ 5.50
12
41034052
ref: 12
BUFF FINISH
DRUM ASSY,FRONT BRAKE
€ 165.50
13
920331041
ref: 13
CIRCLIP,42MM
€ 4.00
14
92045033
ref: 14
BEARING,BALL,#6302NS
€ 20.00
15
41039037
ref: 15
15.2 X 22 X 51
COLLAR,FRONT HUB BRG
€ 7.50
16
601B6302
ref: 16
BEARING-BALL,#6302C3
€ 16.00
17
41078011
ref: 17
GEAR BOX ASSY
€ 103.50
18
654A506509
ref: 18
OIL SEAL,#50659
€ 10.50
19
480J2400
ref: 19
CIRCLIP-TYPE-C,24MM
€ 3.50
20
41065005
ref: 20
WASHER,24.5X32X0.8
€ 2.00
21
41064015
ref: 21
RECEIVER-SPEEDOMETER
€ 5.50
22
41059027
ref: 22
25T
GEAR SPEEDOMETER
€ 21.00
23
41082001
ref: 23
PIN-SPRING
€ 2.50
24
41063001
ref: 24
WASHER-THRST SPD PINI
€ 3.00
25
41060015
ref: 25
8T
PINION,SPEEDOMETER
€ 17.00
26
41062005
ref: 26
BUSHING,SPEEDOMETER C
€ 12.00
