AIR CLEANER ('78-'79 KL250-A1/A1

KL250A1 KLR250 1978 CANADA

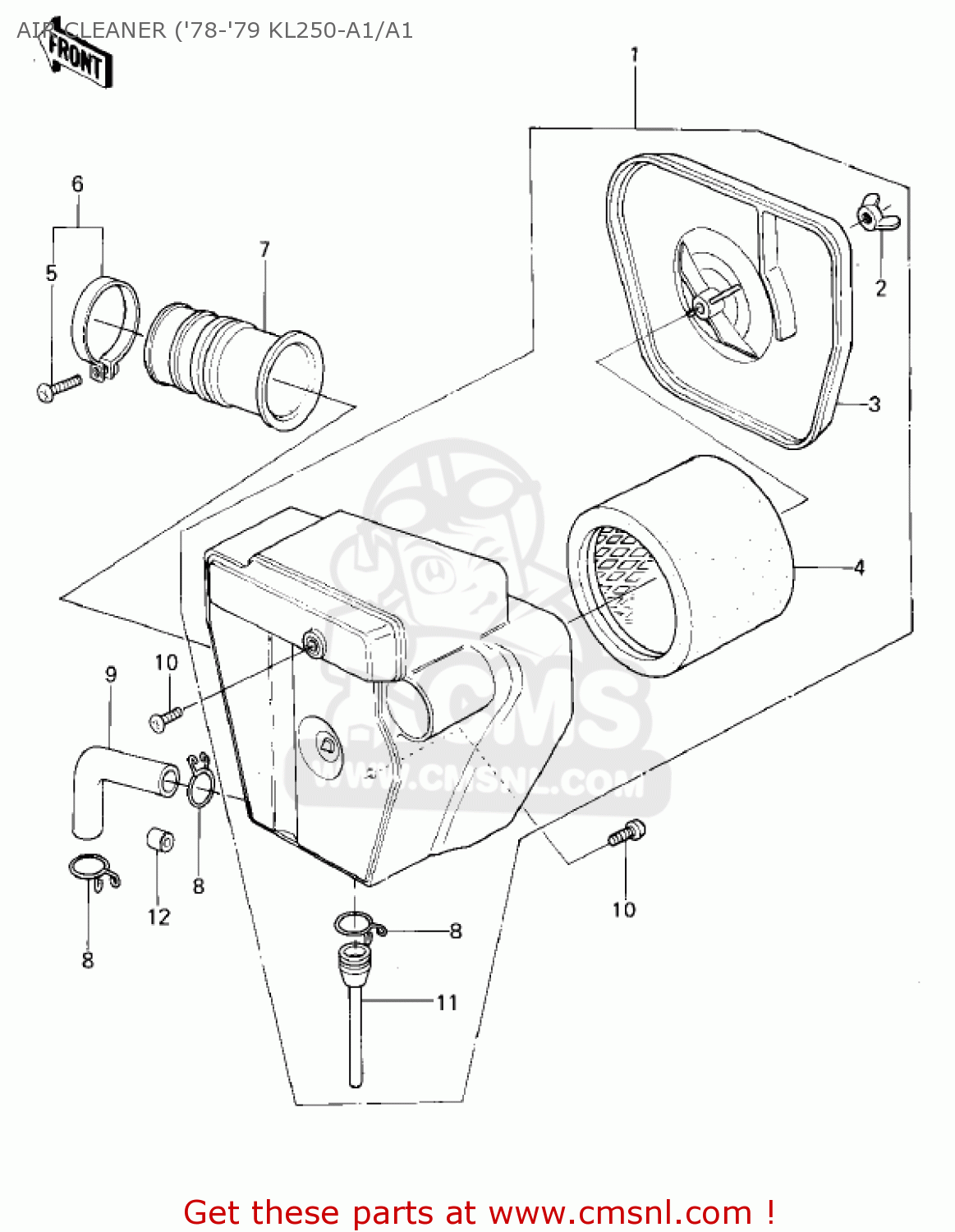

Air cleaner ('78-'79 kl250-a1/a1 diagram KL250A1 KLR250 1978 CANADA

prices are in EUR

ref

part #

description

quantity

110101037
ref: 1
KL250-A1

AIR CLEANER ASSY

€ 110.00

110101037
ref: 1
KL250-A1A~

AIR CLEANER ASSY

€ 110.00

92016062
ref: 2

NUT,6MM

€ 3.00

110121088
ref: 3

CAP,AIR CLEANER

€ 5.50

110131003
ref: 4

ELEMENT-AIR FILTER

€ 18.00

220B0525
ref: 5

SCREW-PAN-CROS,5X25

€ 2.50

920371021
ref: 6

CLAMP,CARBURETOR

€ 2.00

140731003
ref: 7

DUCT,CLEANER-CARB

€ 15.00

92037213
ref: 8

CLAMP, BREATHER TUBE

€ 2.50

920591004
ref: 9

TUBE,BREATHER

€ 6.00

220B0610
ref: 10

SCREW-PAN HEAD,6X10

€ 2.00

920591020
ref: 11

TUBE,AIR CLNR DRAIN

€ 6.00

920621002
ref: 12

NOZZLE

€ 2.00
