CARBURETOR PARTS ('78-'79 KL250-
KL250A1 KLR250 1978 CANADA

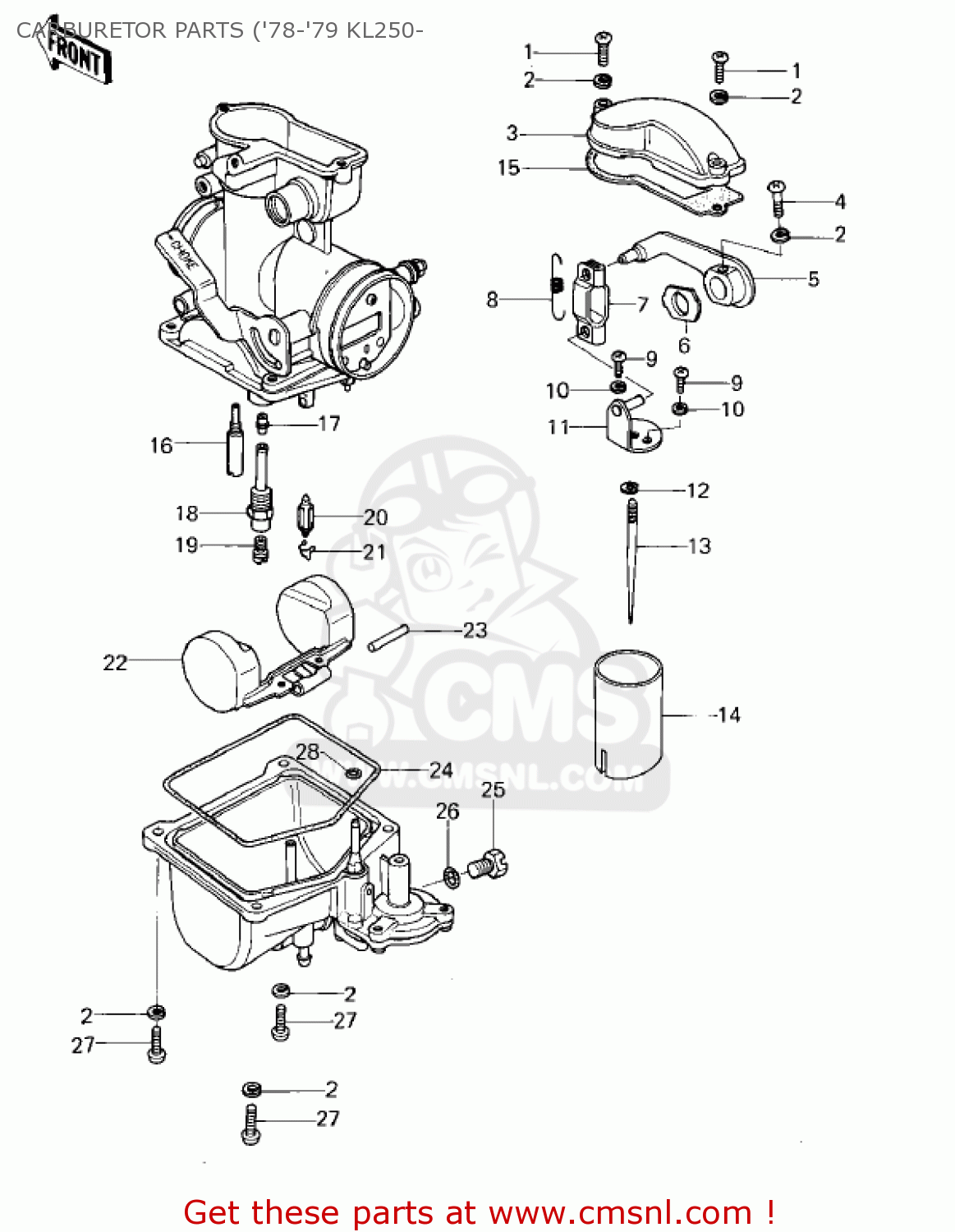

Carburetor parts ('78-'79 kl250- diagram KL250A1 KLR250 1978 CANADA
CARBURETOR PARTS ('78-'79 KL250- KL250A1 KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0412
ref: 1
SCREW-PAN CROS 4X12
€ 0.50
2
461F0400
ref: 2
USE FOR 16001-1009
WASHER-SPRING,4MM
€ 0.50
2
461F0400
ref: 2
USE FOR 16001-1045
WASHER-SPRING,4MM
€ 0.50
3
160051004
ref: 3
TOP MIXING CHAMBER
€ 23.00
4
920091030
ref: 4
SCREW,4M/M
€ 2.00
5
131681016
ref: 5
LEVER,LINK
€ 12.00
6
920271080
ref: 6
COLLAR
€ 1.50
7
210831002
ref: 7
ARM,LINK
€ 5.50
8
920811057
ref: 8
SPRING,TENSION
€ 9.00
9
220B0308
ref: 9
SCREW-PAN-CROS
€ 0.50
10
461F0300
ref: 10
WASHER-SPRING,3MM
€ 0.50
11
131691094
ref: 11
PLATE,VALVE
€ 5.50
12
920371039
ref: 12
CLAMP,JET NEEDLE
€ 2.00
13
160091008
ref: 13
USE FOR 16001-1009
JET NEEDLE,#272011
€ 3.50
13
160091020
ref: 13
USE FOR 16001-1045
JET,NEEDLE,F2352G
€ 4.00
14
160251007
ref: 14
USE FOR 16001-1009
VALVE,THROTTLE,C.A2.5
€ 45.00
14
160251023
ref: 14
USE FOR 16001-1045
THROTTLE VALVE,CA3.0
€ 41.00
15
110091047
ref: 15
GASKET,TOP CHAMBER (NAS)
€ 5.50
16
920641004
ref: 16
USE FOR 16001-1009
PILOT JET,#38
€ 10.00
16
920641016
ref: 16
USE FOR 16001-1045
JET,PILOT,#40
€ 7.00
17
160171010
ref: 17
JET-NEEDLE
€ 31.50
18
130911014
ref: 18
USE FOR 16001-1009
HOLDER,NEEDLE JET
€ 13.00
18
130911031
ref: 18
USE FOR 16001-1045
NEEDLE JET HOLDER
€ 7.50
19
920631013
ref: 19
USE FOR 16001-1009
MAIN JET,#140
€ 9.00
19
920631014
ref: 19
USE FOR 16001-1045
MAIN JET,#135
€ 9.50
19
920631015
ref: 19
OFF-ROAD USE ONLY
MAIN JET,#138
€ 9.50
19
920631016
ref: 19
OFF-ROAD USE ONLY
MAIN JET,#142
€ 9.00
19
920631017
ref: 19
OFF-ROAD USE ONLY
MAIN JET,#145
€ 9.00
20
160301007
ref: 20
FLOAT VALVE ASSY
€ 37.00
21
16044007
ref: 21
CLIP, FLOAT VALVE
€ 4.00
22
160311001
ref: 22
FLOAT
€ 38.50
23
920431002
ref: 23
PIN,FLOAT
€ 3.50
24
16019024
ref: 24
O RING,FLOAT CHAMBER
€ 15.00
25
920091003
ref: 25
SCREW, DRAIN
€ 7.00
26
920551003
ref: 26
RING-O,DRAIN SCREW
€ 2.50
27
220B0414
ref: 27
USE FOR 16001-1009
SCREW-PAN-CROS
€ 2.00
27
220B0414
ref: 27
USE FOR 16001-1045
SCREW-PAN-CROS
€ 2.00
28
920551026
ref: 28
NOT REQUIRED FOR 160
O-RING
€ 3.00
