GEAR CHANGE MECHANISM ('78-'79 K

KL250A1 KLR250 1978 CANADA

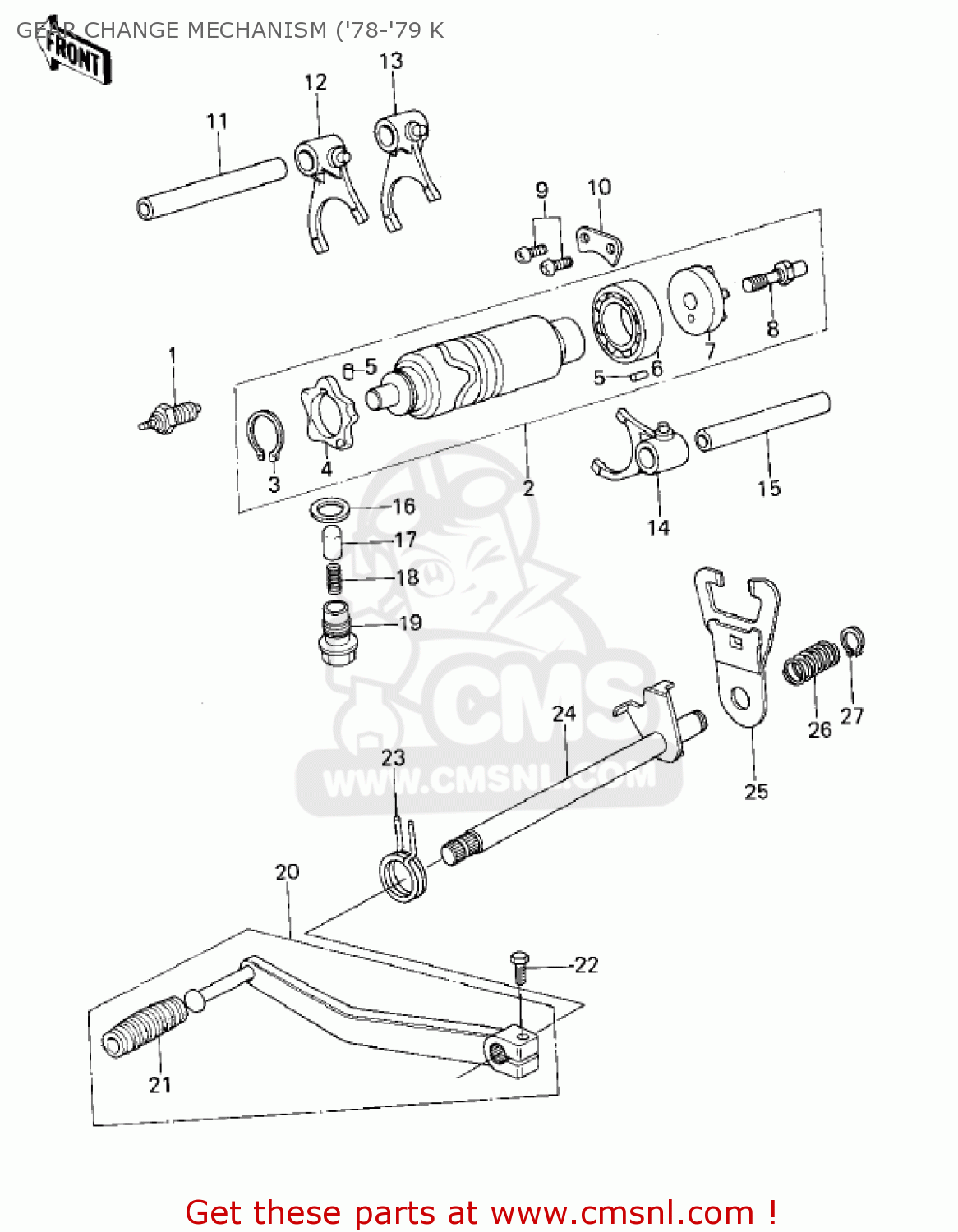

Gear change mechanism ('78-'79 k diagram KL250A1 KLR250 1978 CANADA

GEAR CHANGE MECHANISM ('78-'79 K KL250A1 KLR250 1978 CANADA

GEAR CHANGE MECHANISM ('78-'79 K KL250A1 KLR250 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

131515002
ref: 1

SWITCH,NEUTRAL

€ 22.50

2

132391036
ref: 2

DRUM ASSY,GEAR SHIFT

€ 153.00

3

480J2400
ref: 3

CIRCLIP-TYPE-C,24MM

€ 3.50

4

13145007
ref: 4

DISC, CHANGE DRUM

€ 7.50

5

610A0406
ref: 5

ROLLER,4X6

€ 2.50

6

92045036
ref: 6

BEARING-BALL,#6905

€ 29.00

7

13142019
ref: 7

PLATE, GEAR CHANGE

€ 13.50

8

92001166
ref: 8

BOLT

€ 2.00

9

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

10

13169014
ref: 10

PLATE,GEAR CHANGE DRU

€ 3.00

11

490471003
ref: 11
12X93.7

ROD,SHIFT 93.7MM

€ 18.00

12

13140074
ref: 12

SHIFT FORK 2ND & 3RD

€ 49.50

13

13140073
ref: 13

SHIFT FORK, LOW

€ 65.00

14

13140075
ref: 14

SHIFT FORK, 4TH & TOP

€ 41.50

15

490471002
ref: 15
12X71.7

ROD,SHIFT 71.7MM

€ 32.00

16

92022324
ref: 16

WASHER,16.5X23X2

€ 3.00

17

92043131
ref: 17

PIN,NEUTRAL POSITIONG

€ 5.00

18

92081112
ref: 18

SPRING

€ 4.00

19

92001182
ref: 19

BOLT,NEUTRAL POSITION

€ 12.00

20

132421003
ref: 20

PEDAL,CHANGE

€ 40.00

21

921601036
ref: 21

DAMPER,CHANGE PEDAL

€ 3.50

22

112G0620
ref: 22

BOLT 6X20

€ 1.00

23

92083028
ref: 23

SPRING,CHG PEDL RTRN

€ 9.50

24

131611013
ref: 24

LEVER-COMP-CHANGE SHA

€ 58.00

25

13161044
ref: 25

LEVER-COMP-CHANGE SHA

€ 40.50

26

92081149
ref: 26

SPRING, COIL

€ 3.00

27

480J1300
ref: 27

CIRCLIP-TYPE-C,13MM

€ 2.50
