REAR HUB/BRAKE/CHAIN ('74-'75 S3
KH400A5 1978 USA CANADA

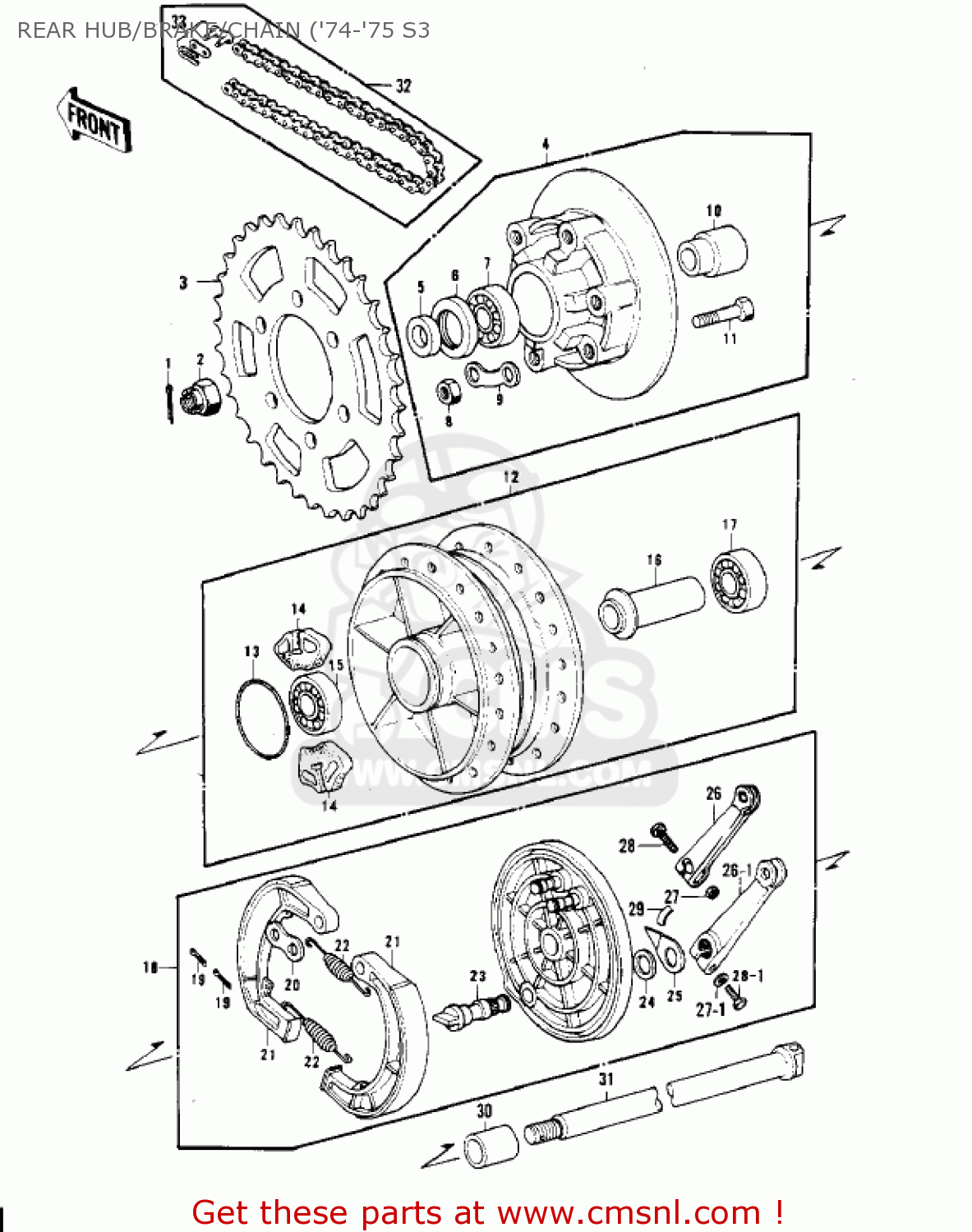

Rear hub/brake/chain ('74-'75 s3 diagram KH400A5 1978 USA CANADA
REAR HUB/BRAKE/CHAIN ('74-'75 S3 KH400A5 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
€ 1.00
2
92015055
ref: 2
NUT,16MM
€ 8.00
3
42041138
ref: 3
STD
REAR SPROCKET,41T
€ 54.00
3
42041063
ref: 3
REAR SPROCKET 38T
€ 37.00
3
42041102
ref: 3
OPTION
REAR SPROCKET 43T
€ 44.50
4
42008020
ref: 4
COUPLING ASSY,RR BRK
€ 213.00
5
42037024
ref: 5
COLLAR,COUPLING
€ 15.50
6
92052006
ref: 6
OIL SEAL WTC35527
€ 6.50
7
601B6205
ref: 7
BEARING-BALL,#6205C3
€ 14.00
8
314B1000
ref: 8
NUT,10MM
€ 0.50
9
92088005
ref: 9
WASHER,SPROCKET LOCK
€ 4.00
10
42036019
ref: 10
SLEEVE,COUPLING
€ 32.50
11
92003087
ref: 11
BOLT-RR SPRCKT 10X49
€ 4.00
12
42005009
ref: 12
DRUM ASSY-REAR BRAKE
€ 331.00
12-1
410345001
ref: 12-1
DRUM ASSY,RR W/PANEL
€ 331.00
13
671B2560
ref: 13
O RING,60MM
€ 1.50
14
42014008
ref: 14
DAMPER,RR HUB SHOCK
€ 24.50
15
601B6205
ref: 15
BEARING-BALL,#6205C3
€ 14.00
16
42010007
ref: 16
SPACER,RR HUB BEARING
€ 4.50
16
42010008
ref: 16
SPACER-RR HUB BEARING
€ 4.50
17
601B6205Z
ref: 17
BALL BEARING,#6205ZC3
€ 24.00
18
4200606080
ref: 18
S3
PANEL ASSY,REAR BRAKE
€ 163.50
18
4200606080
ref: 18
S3-A
PANEL ASSY,REAR BRAKE
€ 163.50
19
550D2025
ref: 19
PIN-COTTER,2.0X25
€ 2.00
20
41045007
ref: 20
WASHER,BRAKE SHOE
€ 4.00
21
42019003
ref: 21
SHOE-REAR BRAKE (MCA)
€ 24.50
22
41049003
ref: 22
SPRING-BRAKE SHOE
€ 2.50
23
42026015
ref: 23
CAM SHAFT,REAR BRAKE
€ 30.00
24
41051001
ref: 24
DUST SHIELD-BRAKE CAM
€ 2.50
25
41085009
ref: 25
INDICATOR,FRONT BRAKE
€ 7.50
26
42029037
ref: 26
S3
LEVER,REAR BRAKE CAM
€ 27.50
26-1
42029037
ref: 26-1
S3-A
LEVER,REAR BRAKE CAM
€ 27.50
27
41072007
ref: 27
S3
NUT,6MM
€ 2.50
27-1
410B0600
ref: 27-1
S3-A
WASHER-PLAIN-SMALL,6M
€ 0.50
28
112G0640
ref: 28
S3
BOLT-UPSET,6X40
€ 2.50
28-1
112G0625
ref: 28-1
S3-A
BOLT-UPSET,6X25
€ 4.00
29
41084001
ref: 29
LABEL,BRAKE SHOE
€ 1.00
30
42032049
ref: 30
COLLAR,REAR AXLE
€ 6.50
31
42031047
ref: 31
AXLE,REAR
€ 39.00
32
92057085
ref: 32
#530 X 104L
CHAIN ASSY,DRIVE,104L
€ 61.50
33
92058008
ref: 33
#530
JOINT-CHAIN
€ 4.00
