CHASSIS ELECTRICAL EQUIPMENT
KH400A5 1978 USA CANADA

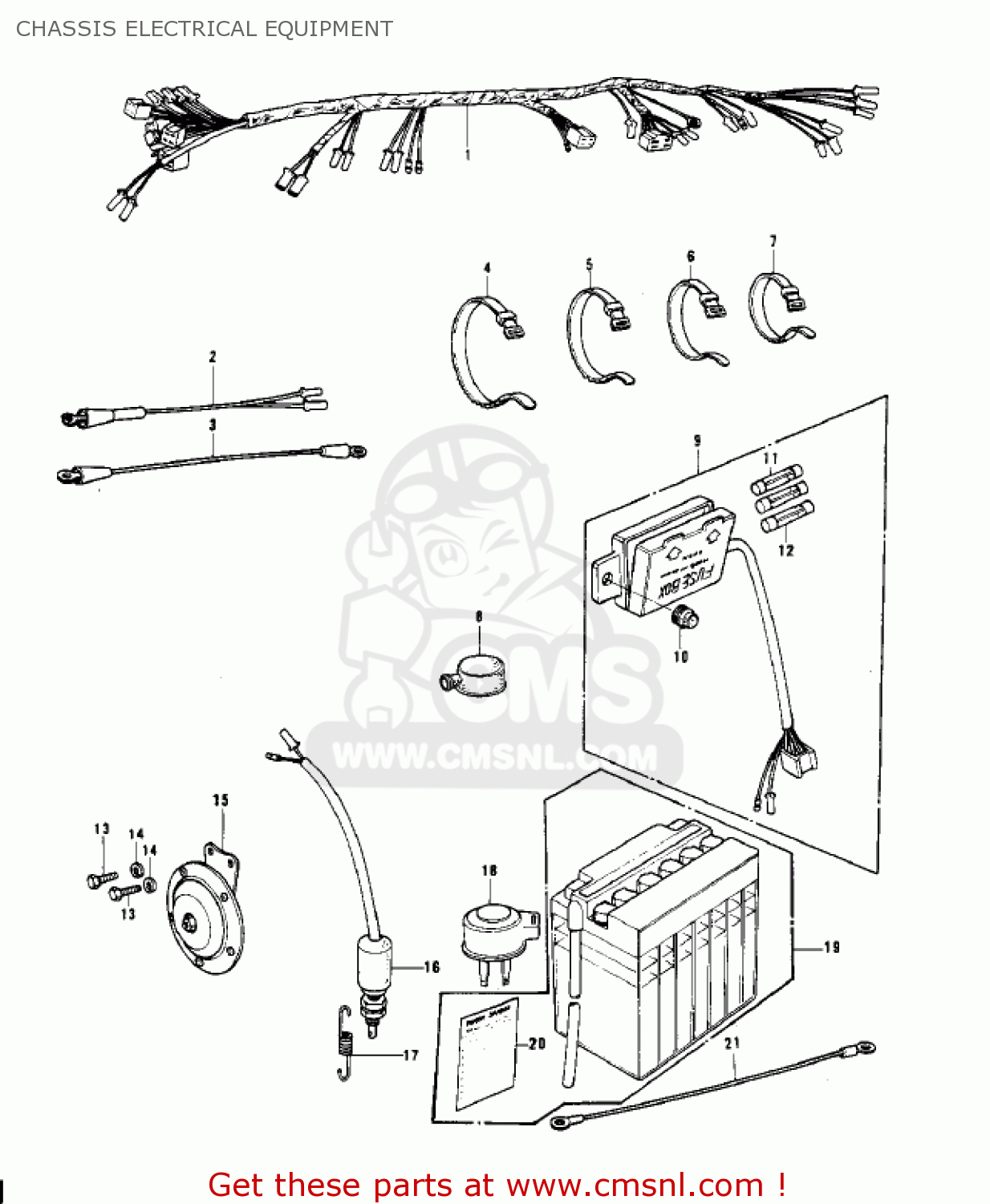

Chassis electrical equipment diagram KH400A5 1978 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KH400A5 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001132
ref: 1
WIRING HARNESS,MAIN
€ 101.50
2
26010033
ref: 2
WIRE,LEAD
€ 10.00
3
26010017
ref: 3
WIRE-BATTERY GROUND
€ 2.50
4
92072032
ref: 4
BAND,LONG
€ 3.00
5
92072056
ref: 5
BAND,RUBBER
€ 3.00
6
92072031
ref: 6
BAND,MIDDLE
€ 3.00
7
92072030
ref: 7
BAND,SHORT
€ 3.00
8
92073001
ref: 8
CAP-BAT TERMINAL RUBB
€ 8.50
9
26004035
ref: 9
FUSE-ASSY
€ 53.50
10
92075279
ref: 10
DAMPER,FUSE
€ 3.50
11
26006005
ref: 11
FUSE 20A
€ 3.50
12
26006003
ref: 12
FUSE 10A
€ 3.00
13
115G0816
ref: 13
BOLT-HEX,HEAD 8X16
€ 0.50
13
115G0816
ref: 13
BOLT-HEX,HEAD 8X16
€ 0.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
27003066
ref: 15
HORN
€ 110.50
16
27010015
ref: 16
SWITCH,BRAKE LAMP
€ 23.00
17
27011013
ref: 17
SPRING-BRAKE LAMP SW
€ 9.50
18
27002011
ref: 18
RELAY-ASSY,TURN SIGNA
€ 69.50
19
26012022
ref: 19
12N5.5-4A
BATTERY 12V 6AH
€ 58.00
20
560401036
ref: 20
WARNING, BATTERY
€ 2.00
21
26011084
ref: 21
WIRE,GROUND LEAD
€ 10.50
