IGNITION/GENERATOR/REGULATOR
KH400A5 1978 USA CANADA

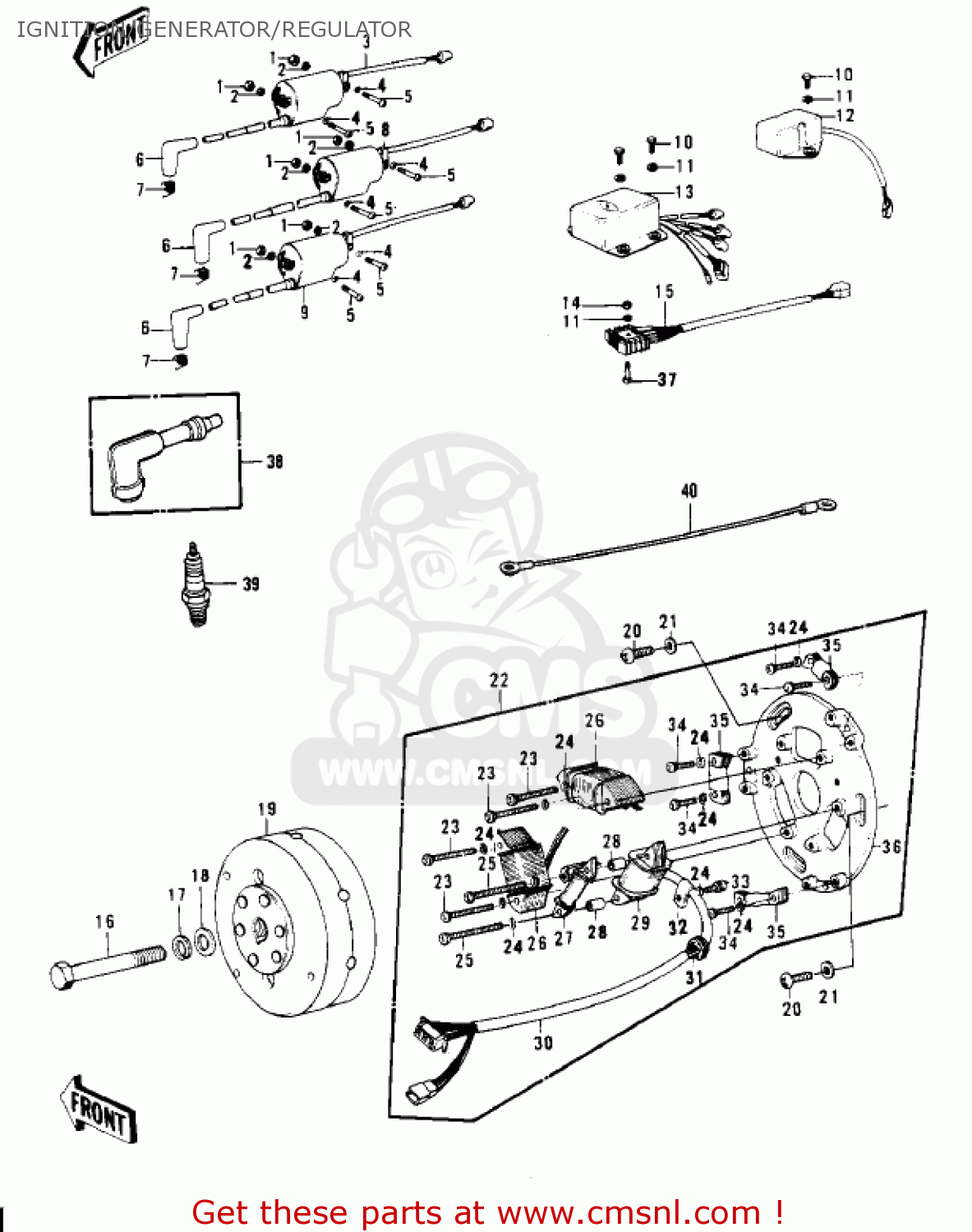

Ignition/generator/regulator diagram KH400A5 1978 USA CANADA
IGNITION/GENERATOR/REGULATOR KH400A5 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0500
ref: 1
NUT-HEX
€ 0.50
2
461F0500
ref: 2
WASHER-SPRING,5MM
€ 0.50
3
21121080
ref: 3
GREEN LEAD
IGNITION COIL,R.H
€ 150.50
4
411B0500
ref: 4
WASHER-PLAIN,5MM
€ 0.50
5
220B0520
ref: 5
SCREW-PAN-CROS
€ 0.50
6
21130009
ref: 6
CAP-SPARK PLUG
€ 15.00
7
92101001
ref: 7
SPRING-SPARK PLUG CAP
€ 1.50
8
21121079
ref: 8
BLUE LEAD
IGNITION COIL,CENTER
€ 120.50
9
21121078
ref: 9
ORANGE LEAD
IGNITION COIL,L.H
€ 123.50
10
112G0616
ref: 10
BOLT UPSET,6X16
€ 1.00
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
21072009
ref: 12
REGULATOR
€ 229.50
13
21119024
ref: 13
IGNITION UNIT
€ 859.00
14
311B0600
ref: 14
NUT,6MM
€ 0.50
15
21061022
ref: 15
RECTIFIER
€ 151.00
16
920011182
ref: 16
BOLT,10X45
€ 6.00
16
920011182
ref: 16
BOLT,10X45
€ 6.00
17
461F0800
ref: 17
WASHER-SPRING,8MM
€ 0.50
18
92022218
ref: 18
WASHER,PLAIN,8MM
€ 3.00
19
21050022
ref: 19
FLYWHEEL
€ 526.00
20
214B0516A
ref: 20
UNAVAILABLE IN PRICE BOOK
€ 0.50
21
410B0500
ref: 21
WASHER-PLAIN-SMALL,5M
€ 0.50
22
21003032
ref: 22
STATOR
€ 574.50
23
220E0435A
ref: 23
SCREW-PAN HEAD,4X35
€ 4.50
24
461F0400
ref: 24
WASHER-SPRING,4MM
€ 0.50
25
21022021
ref: 25
SCREW,PAN HEAD,4X38
€ 1.00
26
21047032
ref: 26
COIL,LIGHTING
€ 60.50
27
21047029
ref: 27
COIL,EXCITE
€ 78.00
28
21033003
ref: 28
COLLAR
€ 1.50
29
21047028
ref: 29
COIL,CHARGE
€ 78.00
30
21029035
ref: 30
WIRING HARNESS,MAGNET
€ 33.50
31
21017002
ref: 31
GROMMET
€ 3.00
32
21037006
ref: 32
CLAMP,WIRING HARNESS
€ 1.00
33
220B0408
ref: 33
SCREW-PAN-CROS
€ 0.50
34
21022022
ref: 34
SCREW,PAN HEAD,4X18
€ 1.00
35
21047030
ref: 35
COIL,PULER
€ 60.50
36
21048016
ref: 36
BASE,MAGNETO
€ 78.00
37
112G0640
ref: 37
BOLT-UPSET,6X40
€ 2.50
38
21160005
ref: 38
USE FOR CANADIAN MAR
CAP-ASSY-PLUG
€ 29.00
39
B8HSA
ref: 39
SPARK PLUG,B8HS
€ 2.50
39
B8HSA
ref: 39
SPARK PLUG,B8HS
€ 2.50
40
26011084
ref: 40
WIRE,GROUND LEAD
€ 10.50
