CYLINDER HEADS/CYLINDERS ('74-'7
KH400A5 1978 USA CANADA

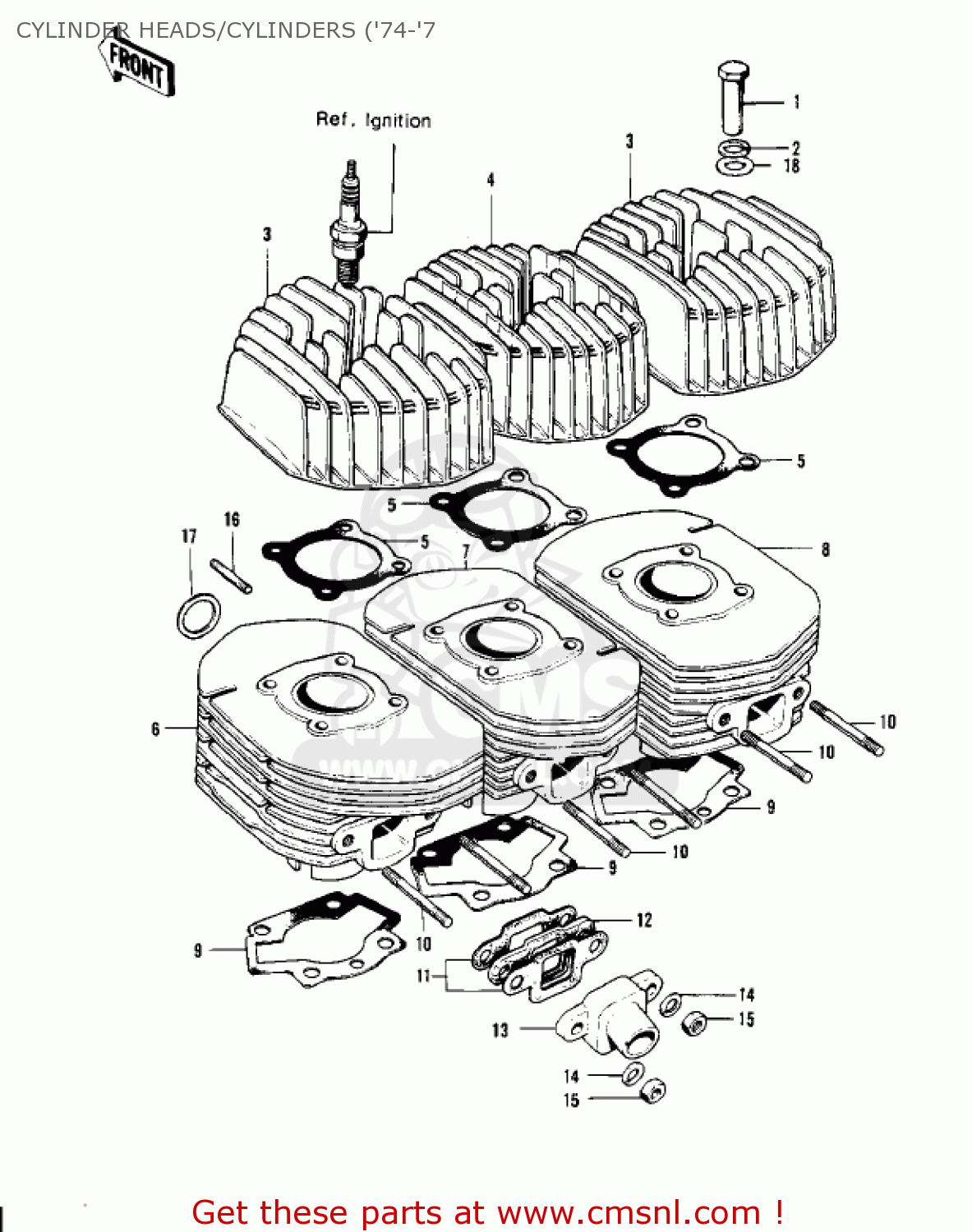

Cylinder heads/cylinders ('74-'7 diagram KH400A5 1978 USA CANADA
CYLINDER HEADS/CYLINDERS ('74-'7 KH400A5 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92015020
ref: 1
NUT,CAP,8MM
€ 6.00
2
461F1200
ref: 2
WASHER-SPRING,12MM
€ 0.50
3
110010862H
ref: 3
CYLINDER HEAD,L.H&RH
€ 96.00
4
110010872H
ref: 4
CYLINDER HEAD,CENTER
€ 96.00
5
11004061
ref: 5
GASKET-HEAD,CYLINDER (NAS)
€ 10.00
6
110051252H
ref: 6
CYLINDER,L.H,BARREL
€ 450.00
7
110051262H
ref: 7
CYLINDER,CENTER,BUFF
€ 258.50
8
110051272H
ref: 8
CYLINDER,R.H,BARREL
€ 450.00
9
11009036
ref: 9
GASKET,CYLINDER BASE (MCA)
€ 7.00
10
172G0820
ref: 10
STUD,8X20
€ 1.50
11
16062014
ref: 11
GASKET-AIR INLET (MCA)
€ 5.00
12
16061012
ref: 12
INSULATOR
€ 14.00
13
16060012
ref: 13
INLET-AIR
€ 25.00
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
311B0800
ref: 15
NUT,8MM
€ 0.50
16
920041009
ref: 16
STUD, 8X35
€ 4.00
17
18067008
ref: 17
GASKET-EXHAUST PIPE (NAS)
€ 10.50
18
92022072
ref: 18
WASHER,12.5X22X1.2
€ 2.50
