FRONT HUB ('74-'75 S3/S3-A)
KH400A5 1978 USA CANADA

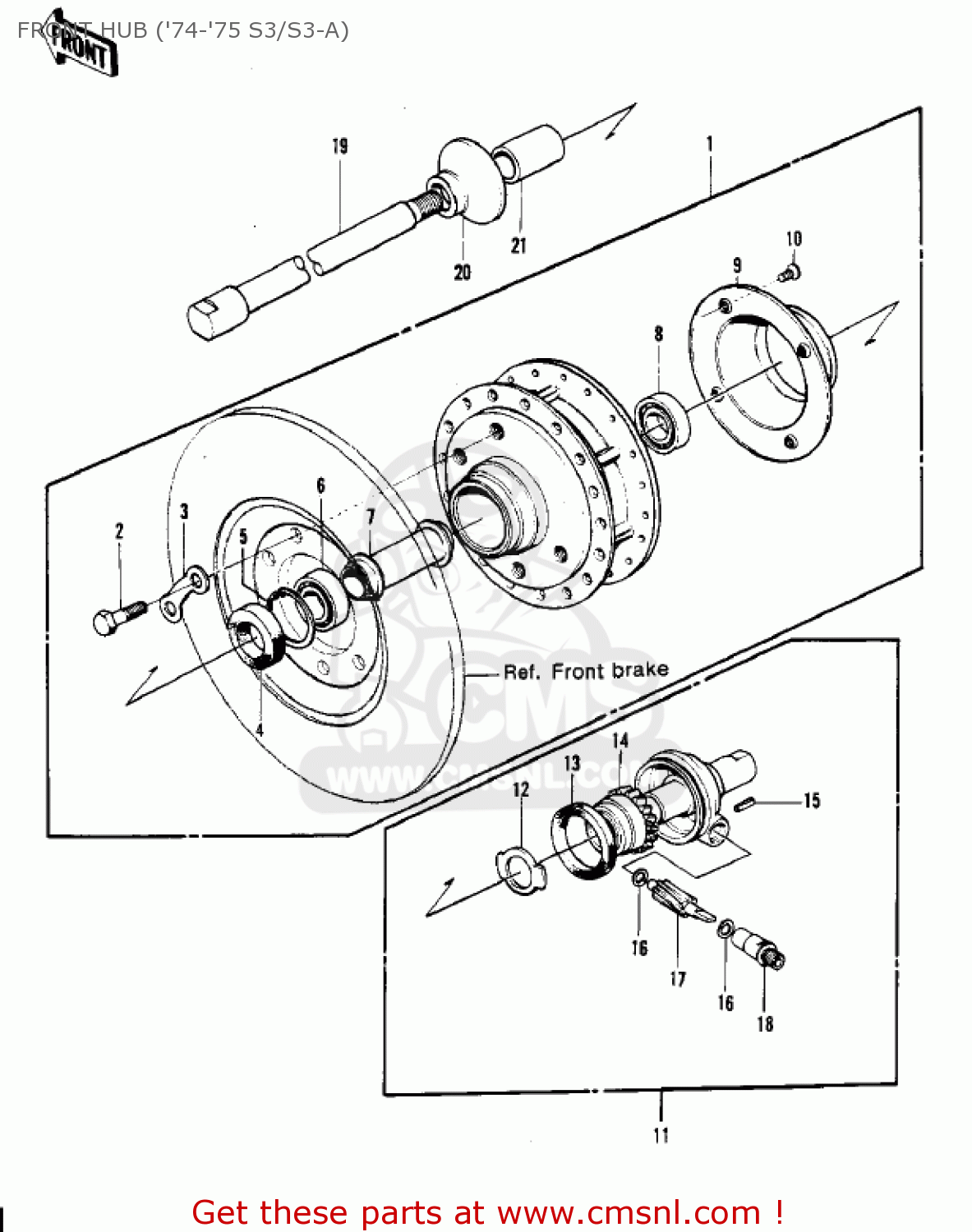

Front hub ('74-'75 s3/s3-a) diagram KH400A5 1978 USA CANADA
FRONT HUB ('74-'75 S3/S3-A) KH400A5 1978 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41034024
ref: 1
DRUM ASSY-FRONT BRAKE
€ 97.50
2
92001104
ref: 2
BOLT-HEX HEAD,8X28
€ 7.00
3
92088016
ref: 3
WASHER-LOCK
€ 4.00
4
92052005
ref: 4
OIL SEAL WTC25428
€ 13.50
5
920331041
ref: 5
CIRCLIP,42MM
€ 4.00
6
601B6302
ref: 6
BEARING-BALL,#6302C3
€ 16.00
7
41039021
ref: 7
SPACER-FR BERG SPACER
€ 5.50
8
601B6302Z
ref: 8
BEARING-BALL,#6302ZC3
€ 22.50
9
41042011
ref: 9
DUST COVER
€ 9.00
10
222E0408A
ref: 10
SCREW-OVL CNTSNK,4X8
€ 2.00
11
41078004
ref: 11
GEAR BOX ASSY
€ 54.00
12
410641005
ref: 12
RECEIVER,SPEEDOMETER
€ 9.50
13
92050049
ref: 13
OIL SEAL-GEAR BOX
€ 11.00
14
41059020
ref: 14
GEAR,SPEEDOMETER
€ 15.00
15
41082001
ref: 15
PIN-SPRING
€ 2.50
16
41063001
ref: 16
WASHER-THRST SPD PINI
€ 3.00
17
41060013
ref: 17
PINION-SPEEDOMETER
€ 13.50
18
41062005
ref: 18
BUSHING,SPEEDOMETER C
€ 12.00
19
41068038
ref: 19
AXLE-FRONT
€ 26.00
20
41042012
ref: 20
DUST COVER-FRONT AXLE
€ 10.00
21
41069020
ref: 21
COLLAR-FRONT AXLE
€ 6.00
