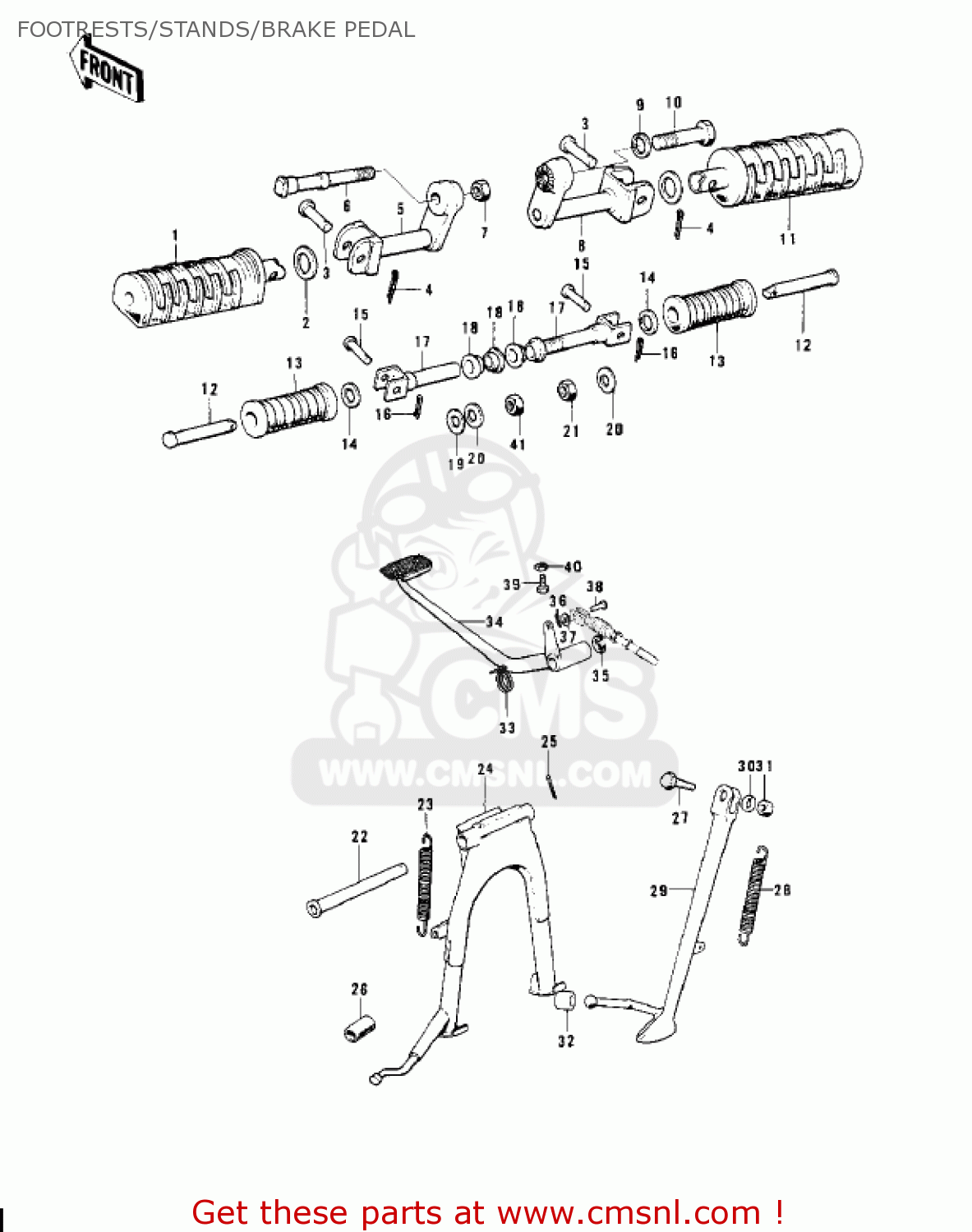

FOOTRESTS/STANDS/BRAKE PEDAL

ref

part #

description

quantity

1

34028011
ref: 1

BAR-FOOTREST,L.H

€ 24.50

2

92022204
ref: 2

WASHER-PLAIN

€ 0.50

3

92043080
ref: 3

PIN-FOOTREST BAR FIT

€ 3.50

4

550D2515
ref: 4

PIN COTTER,295X15

€ 0.50

5

34003040
ref: 5

BAR,L.H FOOTREST

€ 38.00

6

92003076
ref: 6

BOLT-L.H FOOTREST FIT

€ 31.50

7

315B1200
ref: 7

NUT,12MM

€ 0.50

8

34003041
ref: 8

BAR,R.H FOOTREST

€ 29.00

9

461F1200
ref: 9

WASHER-SPRING,12MM

€ 0.50

10

920011068
ref: 10

BOLT,R.H,FOOTREST FIT

€ 4.50

11

34028012
ref: 11

BAR-FOOTREST,R.H

€ 24.50

12

34028009
ref: 12

BAR-REAR FOOTREST

€ 24.00

13

92076024
ref: 13

DAMPER,STEP

€ 14.50

14

92022199
ref: 14

WASHER,20X30X2.3

€ 5.00

15

920431464
ref: 15

PIN

€ 5.50

16

550D2012
ref: 16

PIN,COTTER,2.0X12

€ 0.50

17

34029011
ref: 17

HOLDER-STEP,RR

€ 19.00

18

92092010
ref: 18

BUSHING-MUFFLER FITT

€ 11.00

19

92022196
ref: 19

WASHER,10.5X30X2

€ 2.00

20

411B1000
ref: 20

WASHER-PLAIN,10MM

€ 0.50

21

92019021
ref: 21

NUT,LOCK,10M/M

€ 2.00

22

34019011
ref: 22

SHAFT-STAND,CNT

€ 9.00

23

34023010
ref: 23

SPRING-MAIN STAND

€ 8.50

24

34011035
ref: 24

STAND,MAIN

€ 62.00

25

550D3025
ref: 25

PIN-COTTER,3.0X25

€ 0.50

26

92075115
ref: 26

DAMPER,STAND,CNT

€ 4.00

27

92003079
ref: 27

BOLT-SIDE STAND

€ 7.50

28

34023005
ref: 28

SPRING-MAIN STAND

€ 6.50

29

34024051
ref: 29

STAND,SIDE

€ 34.00

30

461F1000
ref: 30

WASHER-SPRING,10MM

€ 0.50

31

314B1000
ref: 31

NUT,10MM

€ 0.50

32

92075031
ref: 32

DAMPER RUBB-SIDE STND

€ 3.00

33

43005033
ref: 33

SPRING,BRAKE PEDAL

€ 4.50

34

43001060
ref: 34

PEDAL,BRAKE

€ 43.50

35

482K0200
ref: 35

CIRCLIP-TYPE-E,12MM

€ 0.50

36

550D2015
ref: 36

PIN-COTTER,2.0X15

€ 1.00

37

410B0600
ref: 37

WASHER-PLAIN-SMALL,6M

€ 0.50

38

92043034
ref: 38

PIN-R BRK CABLE JOINT

€ 7.00

39

112B0622
ref: 39

BOLT, 6X22

€ 2.50

40

311B0600
ref: 40

NUT,6MM

€ 0.50

41

920151429
ref: 41

NUT,10MM

€ 4.50
