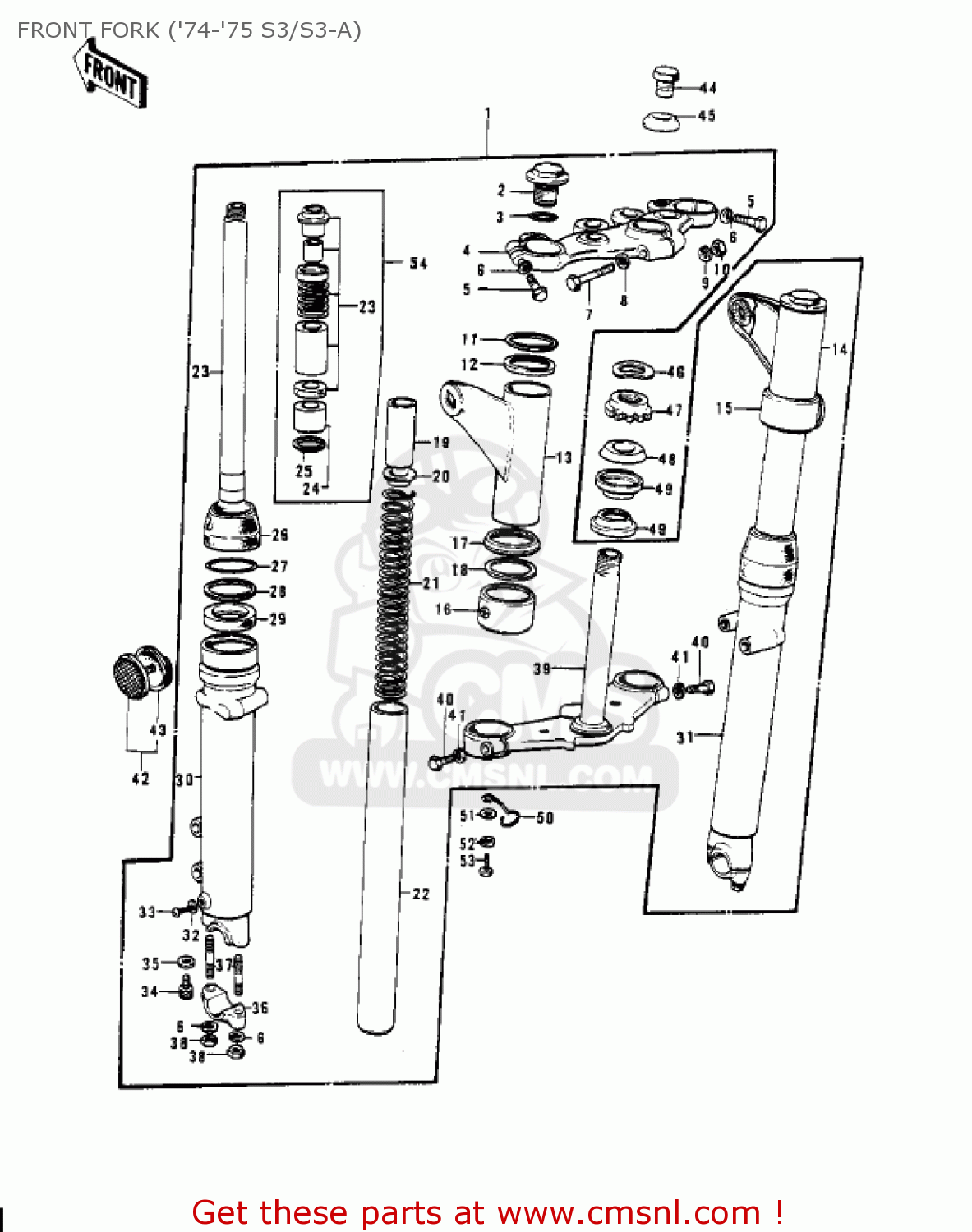

FRONT FORK ('74-'75 S3/S3-A)

ref

part #

description

quantity

1

44001144
ref: 1
S3

FRONT FORK

€ 2,100.00

1

44001144
ref: 1
S3 & S3-A

FRONT FORK

€ 2,100.00

2

44041037
ref: 2

BOLT-FORK FITTING

€ 30.50

3

920551012
ref: 3

RING-O,FORK TOP

€ 5.00

4

44039051
ref: 4

HEAD-STEERING STEM

€ 90.00

5

44041044
ref: 5

BOLT-STEERING STEM HD

€ 6.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

44041042
ref: 7

BOLT-STEERING STEM HD

€ 3.00

8

463H0800
ref: 8

WASHER-TOOTHED,8MM

€ 2.00

9

410B0800
ref: 9

WASHER-PLAIN-SMALL,8M

€ 0.50

10

920151124
ref: 10

NUT,LOCK,8MM

€ 3.50

11

44045039
ref: 11

GASKET,FORK COVER (NAS)

€ 3.50

12

44043047
ref: 12

WASHER,FORK COVER

€ 8.00

13

4403305321
ref: 13

COVER-L.H FORK,BLACK

€ 47.50

13

44033067
ref: 13

COVER,L.H FORK

€ 50.00

14

4403405321
ref: 14

COVER-R.H FORK,BLACK

€ 55.00

14

44034067
ref: 14

COVER,R.H FORK

€ 61.00

15

44064009
ref: 15

GUIDE-FORK COVER,R.H

€ 14.50

16

44064010
ref: 16

GUIDE-FORK COVER,L.H

€ 30.00

17

44032005
ref: 17

CAP-FORK COVER

€ 7.00

18

44045029
ref: 18

GASKET-FORK COVER (NAS)

€ 3.50

19

44028026
ref: 19

SPACER-FORK SPR GUIDE

€ 9.00

20

44029019
ref: 20

GUIDE-FORK SPRING

€ 6.00

21

44026043
ref: 21

SPRING-FORK

€ 47.50

22

44013038
ref: 22

PIPE-FORK INNER

€ 216.50

23

44023005
ref: 23
NO LONGER AVAILABLE

CYLINDER SET,FORK

€ 48.50

23

44022026
ref: 23

CYLINDER,FORK

€ 48.50

23

44023005
ref: 23

CYLINDER SET,FORK

€ 48.50

24

44018001
ref: 24

PISTON-FORK

€ 7.00

24

44018009
ref: 24
USE FOR 44023-005

PISTON,FORK

€ 17.00

25

44044008
ref: 25

CIRCLIP-FORK PISTON

€ 7.00

25

44044019
ref: 25
USE FOR 44023-005

CIRCLIP,FORK PISTON

€ 4.50

26

44010019
ref: 26

DUST SHIELD-FORK

€ 8.50

27

44044005
ref: 27

CIRCLIP-OIL SEAL FIT

€ 6.50

28

44043023
ref: 28

WASHER-OIL SEAL FIT

€ 2.00

29

44009020
ref: 29

OIL SEAL,FORK

€ 38.00

30

44005046
ref: 30

TUBE-L.H OUTER

€ 214.00

31

44006044
ref: 31

TUBE-R.H OUTER

€ 110.00

32

44045002
ref: 32

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

33

220B0408
ref: 33

SCREW-PAN-CROS

€ 0.50

34

44041040
ref: 34

BOLT-FORK CYLINDER

€ 4.50

35

44045057
ref: 35

GASKET (NAS)

€ 3.00

36

44063006
ref: 36

HOLDER-FRONT AXLE

€ 18.00

37

172G0830
ref: 37

STUD,8X30

€ 1.50

38

311B0800
ref: 38

NUT,8MM

€ 0.50

39

44037058
ref: 39

STEM-STEERING

€ 149.00

40

113B1032
ref: 40

BOLT-HEX HEAD,10X32

€ 3.50

41

461F1000
ref: 41

WASHER-SPRING,10MM

€ 0.50

42

28001029
ref: 42
S3

REFLECTOR,REFLEX,FRNT

€ 20.00

42

28001029
ref: 42
S3-A

REFLECTOR,REFLEX,FRNT

€ 20.00

43

28016002
ref: 43

DAMPER RUBBER-REFLEX

€ 5.50

44

92007031
ref: 44

BOLT-STEERG STEM HEAD

€ 17.50

45

92022230
ref: 45

WASHER-STEERG STM HD

€ 7.50

46

46100003
ref: 46

WASHER,WAVE

€ 6.50

47

92090007
ref: 47

NUT-STEERING STEM LCK

€ 8.00

48

46098016
ref: 48

CAP,STEERING STEM

€ 4.00

49

92047006
ref: 49

CONE-STRNG STEM

€ 11.00

50

92037099
ref: 50

CLAMP-CABLE

€ 3.50

51

410B0600
ref: 51

WASHER-PLAIN-SMALL,6M

€ 0.50

52

461F0600
ref: 52

WASHER-SPRING,6MM

€ 0.50

53

112G0610
ref: 53

BOLT,6X10

€ 0.50

54

44023005
ref: 54

CYLINDER SET,FORK

€ 48.50
