KICKSTARTER MECHANISM ('82-'83 A

KE125-A9 KE125 1982 USA CANADA

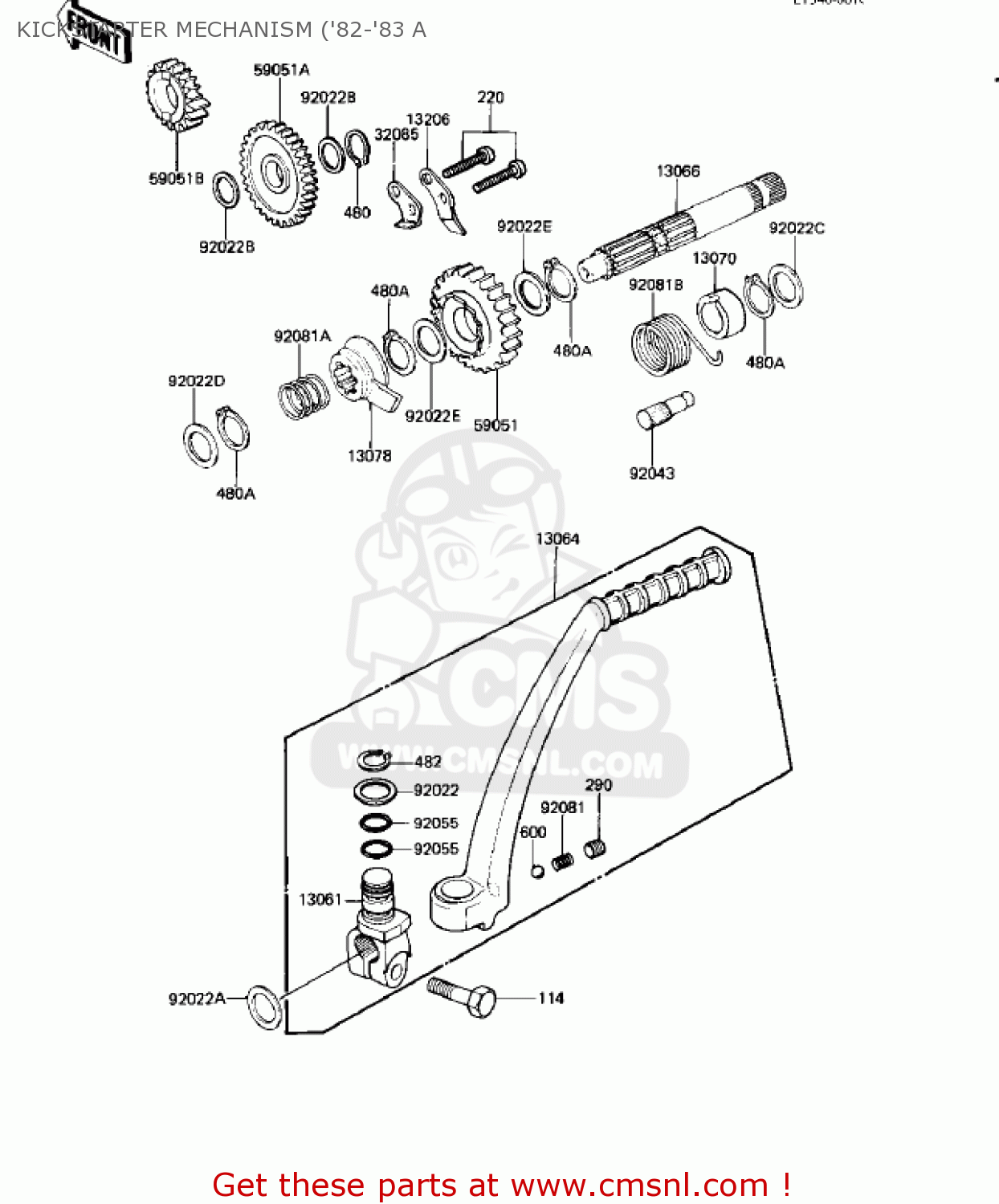

Kickstarter mechanism ('82-'83 a diagram KE125-A9 KE125 1982 USA CANADA

KICKSTARTER MECHANISM ('82-'83 A KE125-A9 KE125 1982 USA CANADA

KICKSTARTER MECHANISM ('82-'83 A KE125-A9 KE125 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

13061

130611045
ref: 13061

BOSS,KICK PEDAL

€ 43.00

13064

130641027
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 134.00

13066

130661012
ref: 13066

SHAFT-KICK

€ 53.50

13070

13070008
ref: 13070

GUIDE,KICK SPRING

€ 6.00

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

13206010
ref: 13206

GUIDE,KICKSTATER

€ 6.50

32085

320851061
ref: 32085

STOPPER,KICKSTARTER

€ 4.00

59051

13068032
ref: 59051

GEAR-SPUR,KICKSTARTER

€ 44.00

59051A

13073011
ref: 59051A

GEAR-SPUR,IDLE,27T

€ 46.50

59051B

13075010
ref: 59051B

GEAR-SPUR,KICKSTARTER

€ 33.50

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

920221205
ref: 92022A

WASHER,16.3X24X1

€ 2.50

92022B

92022267
ref: 92022B

WASHER,14X24X0.5

€ 3.00

92022C

92022268
ref: 92022C

WASHER,16.3X24X1

€ 5.50

92022D

92022269
ref: 92022D

WASHER,PLAIN

€ 1.00

92022E

92022315
ref: 92022E

WASHER, 16.8X22X0.5

€ 4.00

92043

92043102
ref: 92043

PIN

€ 2.50

92055

92055061
ref: 92055

RING-O,10X1.5

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

92082005
ref: 92081B

SPRING,KICKSTARTER

€ 13.50

114

115G0825
ref: 114

BOLT-HEX,HEAD,8X25

€ 3.00

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

480A

480J1600
ref: 480A

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
