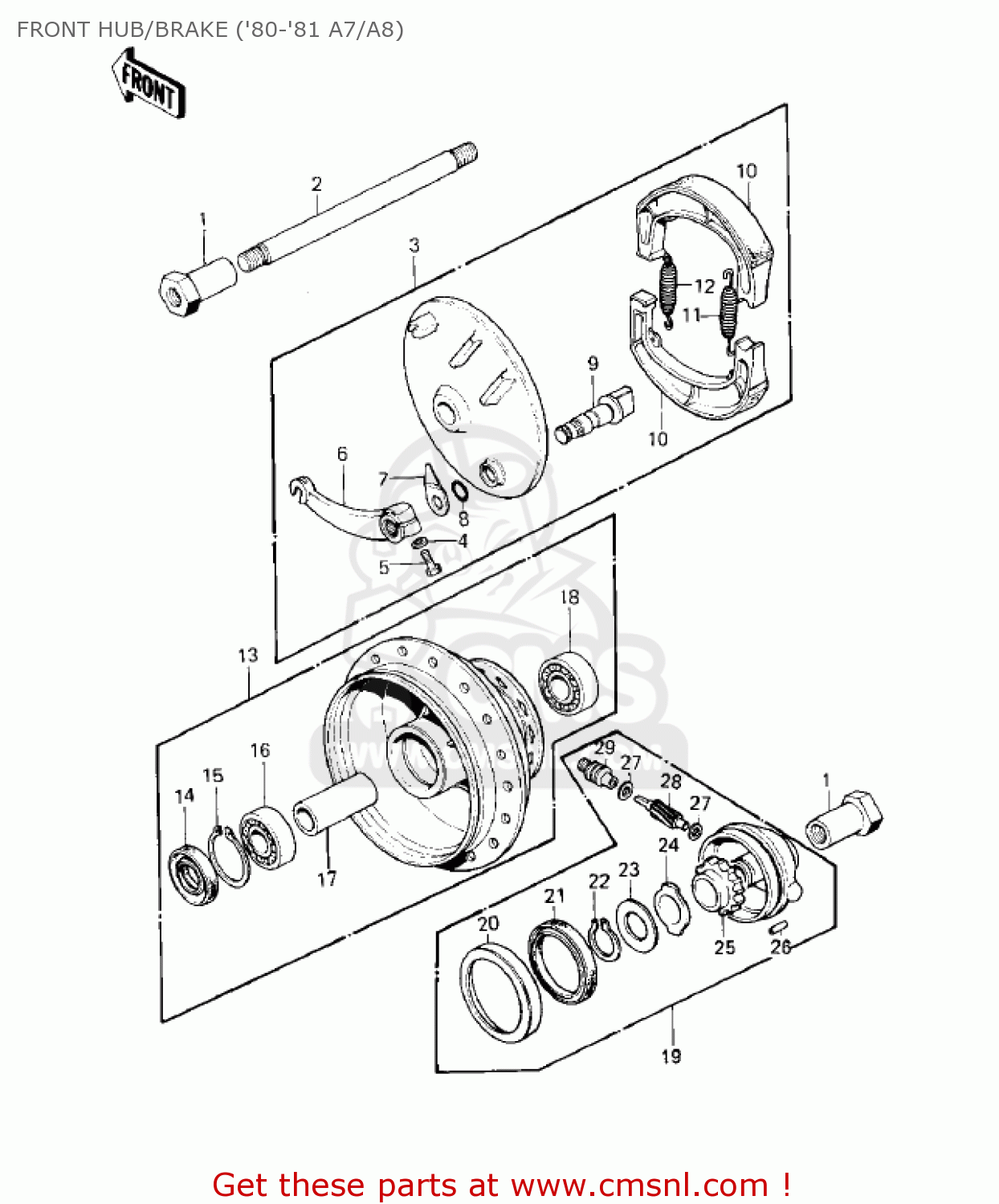

FRONT HUB/BRAKE ('80-'81 A7/A8)

KE125-A9 KE125 1982 USA CANADA

Front hub/brake ('80-'81 a7/a8) diagram KE125-A9 KE125 1982 USA CANADA

FRONT HUB/BRAKE ('80-'81 A7/A8) KE125-A9 KE125 1982 USA CANADA

FRONT HUB/BRAKE ('80-'81 A7/A8) KE125-A9 KE125 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

41069024
ref: 1

COLLAR,FRONT AXLE

€ 9.00

2

41068043
ref: 2

AXLE,FR

€ 46.00

3

410351035
ref: 3

PANEL ASSY,F.BRAKE

€ 227.50

4

410B0600
ref: 4

WASHER-PLAIN-SMALL,6M

€ 0.50

5

112B0622
ref: 5

BOLT, 6X22

€ 2.50

6

41053020
ref: 6

LEVER-BRAKE CAM

€ 38.00

7

41085002
ref: 7

INDICATOR,BRAKE SHOE

€ 2.50

8

92055004
ref: 8

RING-O,BRAKE CAM

€ 3.00

9

41050012
ref: 9

CAM-BRAKE

€ 18.00

10

41048015
ref: 10

SHOE,BRAKE (MCA)

€ 14.50

11

920811766
ref: 11

SPRING,BRAKE SHOE

€ 5.50

12

920811550
ref: 12

SPRING,BRAKE SHOE

€ 6.00

13

410341024
ref: 13

DRUM ASSY,FRONT BRAKE

€ 152.50

14

92050059
ref: 14

OIL SEAL,FR BK DRUM

€ 13.00

15

481J3700
ref: 15

CIRCLIP-TYPE-C,37MM

€ 1.50

16

601B6301
ref: 16

BEARING-BALL,#6301C3

€ 13.00

17

41039025
ref: 17

COLLAR,L=44

€ 10.00

18

601B6201
ref: 18

BEARING-BALL,#6201C3

€ 7.00

19

41078009
ref: 19

GEAR BOX ASSY

€ 106.00

20

41042013
ref: 20

DUST COVER

€ 12.00

21

654A405208
ref: 21

OIL SEAL

€ 9.00

22

480J1900
ref: 22

CIRCLIP-TYPE-C,19MM

€ 1.00

23

41065004
ref: 23

WASHER,19.5X26X0.8

€ 2.00

24

41064011
ref: 24

RECEIVER,SPEED GEAR

€ 4.00

25

41059024
ref: 25

GEAR,SPEEDOMETER,24T

€ 22.50

26

41082001
ref: 26

PIN-SPRING

€ 2.50

27

41063001
ref: 27

WASHER-THRST SPD PINI

€ 3.00

28

41060015
ref: 28

PINION,SPEEDOMETER

€ 17.00

29

41062005
ref: 29

BUSHING,SPEEDOMETER C

€ 12.00
