KICKSTARTER MECHANISM ('80-'81 A

KE125-A9 KE125 1982 USA CANADA

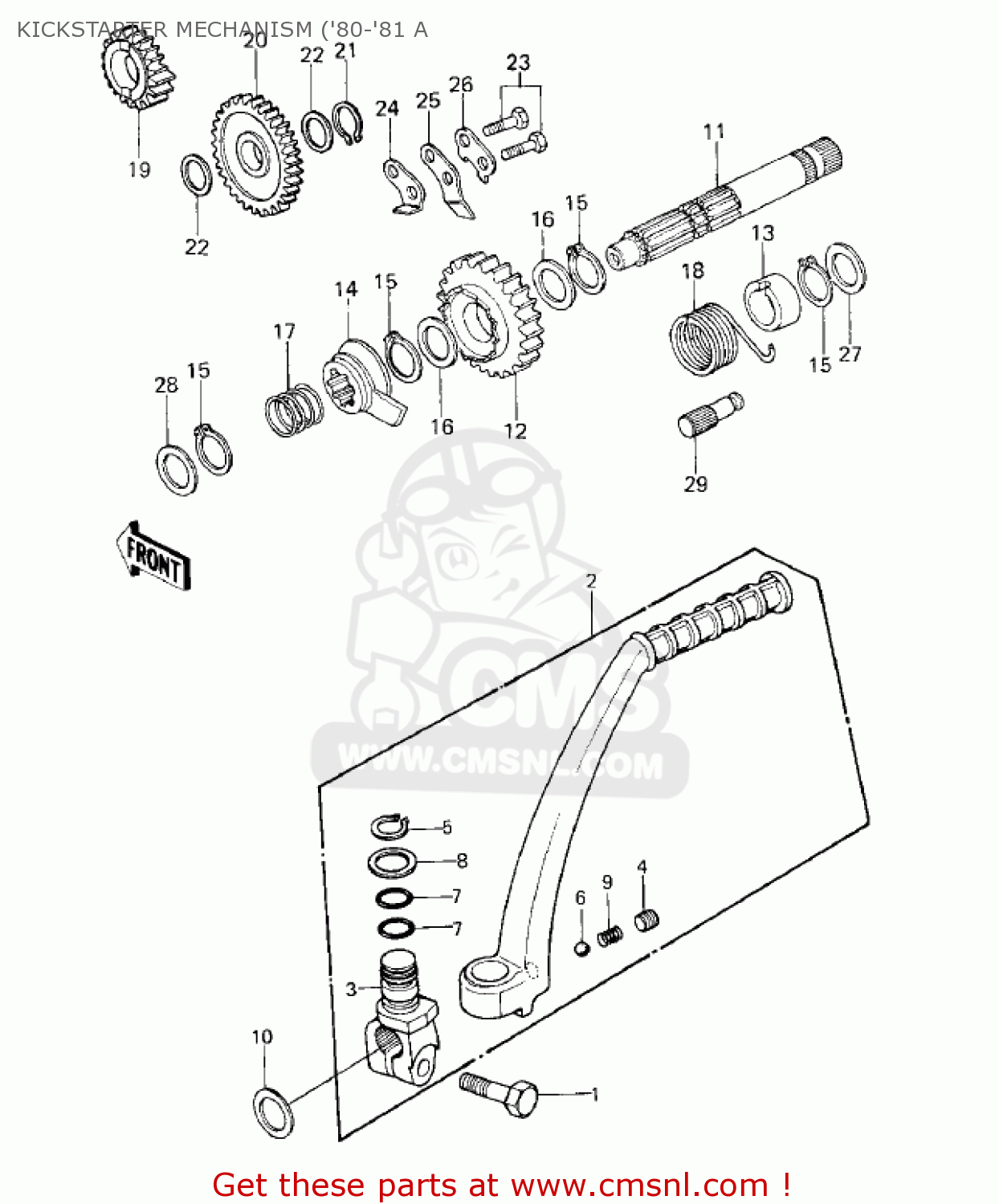

Kickstarter mechanism ('80-'81 a diagram KE125-A9 KE125 1982 USA CANADA

KICKSTARTER MECHANISM ('80-'81 A KE125-A9 KE125 1982 USA CANADA

KICKSTARTER MECHANISM ('80-'81 A KE125-A9 KE125 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

115G0825
ref: 1

BOLT-HEX,HEAD,8X25

€ 3.00

2

130641027
ref: 2

LEVER-ASSY-KICK,PEDAL

€ 134.00

3

130615001
ref: 3

BOSS,KICK PEDAL

€ 41.00

4

290Q0808
ref: 4

SCREW,8X8

€ 2.50

5

482K0100
ref: 5

CIRCLIP-TYPE-E,10MM

€ 0.50

6

600A0800
ref: 6

BALL-STEEL,1/4

€ 0.50

7

670B2012
ref: 7

O RING,12MM

€ 1.00

8

920221019
ref: 8

WASHER,15.2X20X1

€ 3.50

9

92081020
ref: 9

SPRING-KICK PEDAL

€ 2.50

10

920221205
ref: 10

WASHER,16.3X24X1

€ 2.50

11

130661012
ref: 11

SHAFT-KICK

€ 53.50

12

13068032
ref: 12

GEAR-SPUR,KICKSTARTER

€ 44.00

13

13070008
ref: 13

GUIDE,KICK SPRING

€ 6.00

14

130781052
ref: 14

RATCHET,KL250-D2

€ 50.50

15

480J1600
ref: 15

CIRCLIP-TYPE-C,16MM

€ 2.50

16

92022315
ref: 16

WASHER, 16.8X22X0.5

€ 4.00

17

92081122
ref: 17

SPRING,RATCHET

€ 6.00

18

92082005
ref: 18

SPRING,KICKSTARTER

€ 13.50

19

13075010
ref: 19

GEAR-SPUR,KICKSTARTER

€ 33.50

20

13073011
ref: 20

GEAR-SPUR,IDLE,27T

€ 46.50

21

480J1300
ref: 21

CIRCLIP-TYPE-C,13MM

€ 2.50

22

92022267
ref: 22

WASHER,14X24X0.5

€ 3.00

23

110N0618
ref: 23

BOLT-HEX HEAD,6X18

€ 2.00

24

320851061
ref: 24

STOPPER,KICKSTARTER

€ 4.00

25

13206010
ref: 25

GUIDE,KICKSTATER

€ 6.50

26

92024054
ref: 26

WASHER,LOCK

€ 1.50

27

92022268
ref: 27

WASHER,16.3X24X1

€ 5.50

28

92022269
ref: 28

WASHER,PLAIN

€ 1.00

29

92043102
ref: 29

PIN

€ 2.50
