FOOTRESTS/STAND ('80-'81 A7/A8)

KE125-A9 KE125 1982 USA CANADA

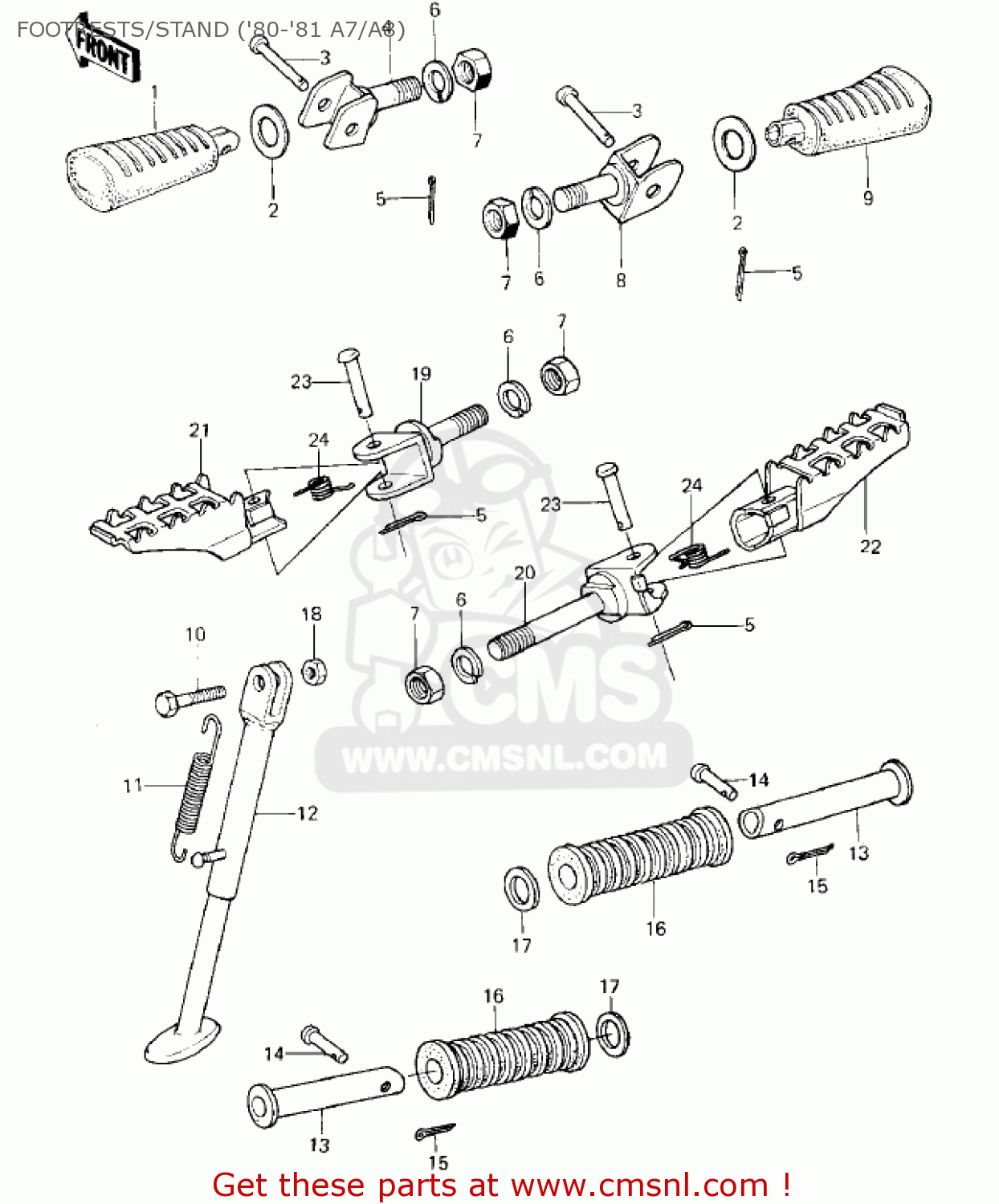

Footrests/stand ('80-'81 a7/a8) diagram KE125-A9 KE125 1982 USA CANADA

FOOTRESTS/STAND ('80-'81 A7/A8) KE125-A9 KE125 1982 USA CANADA

FOOTRESTS/STAND ('80-'81 A7/A8) KE125-A9 KE125 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

340271114
ref: 1
KE125-A7

STEP-ASSY,FR,LH

€ 24.00

2

92022250
ref: 2
KE125-A7

WASHER,PLAIN

€ 3.00

3

92043080
ref: 3
KE125-A7

PIN-FOOTREST BAR FIT

€ 3.50

4

34003051
ref: 4
KE125-A7

BRACKET,FOTRST BAR,LH

€ 29.00

5

550D2515
ref: 5

PIN COTTER,295X15

€ 0.50

6

461F1400
ref: 6

WASHER-SPRING,14MM

€ 0.50

7

314B1400
ref: 7

NUT,14MM

€ 1.00

8

34003052
ref: 8
KE125-A7

BRACKET,FOTRST BAR,R

€ 24.00

9

340271115
ref: 9
KE125-A7

STEP-ASSY,FR,RH

€ 24.00

10

920011252
ref: 10

BOLT,HEX HEAD,10X35

€ 3.50

11

34025008
ref: 11

SPRING,SIDE STAND

€ 4.50

12

340241043
ref: 12

STAND,SIDE

€ 34.00

13

34028009
ref: 13

BAR-REAR FOOTREST

€ 24.00

14

920431464
ref: 14

PIN

€ 5.50

15

550D2015
ref: 15

PIN-COTTER,2.0X15

€ 1.00

16

92076024
ref: 16

DAMPER,STEP

€ 14.50

17

92022199
ref: 17

WASHER,20X30X2.3

€ 5.00

18

314B1000
ref: 18

NUT,10MM

€ 0.50

19

340031112
ref: 19
KE125-A8

HOLDER-STEP,FR,LH

€ 29.50

20

340031111
ref: 20
KE125-A8

HOLDER-STEP,RH

€ 28.50

21

340281013
ref: 21
KE125-A8

STEP,FR,LH

€ 38.00

22

340281014
ref: 22
KE125-A8

STEP,FR,RH

€ 36.00

23

92043080
ref: 23
KE125-A8

PIN-FOOTREST BAR FIT

€ 3.50

24

920811133
ref: 24
KE125-A8

SPRING,FOOTREST STEP

€ 4.00
