Genuine KE Kawasaki Parts delivered quickly!


GEAR CHANGE DRUM & FORKS ('82-'8

KE125-A9 KE125 1982 USA CANADA

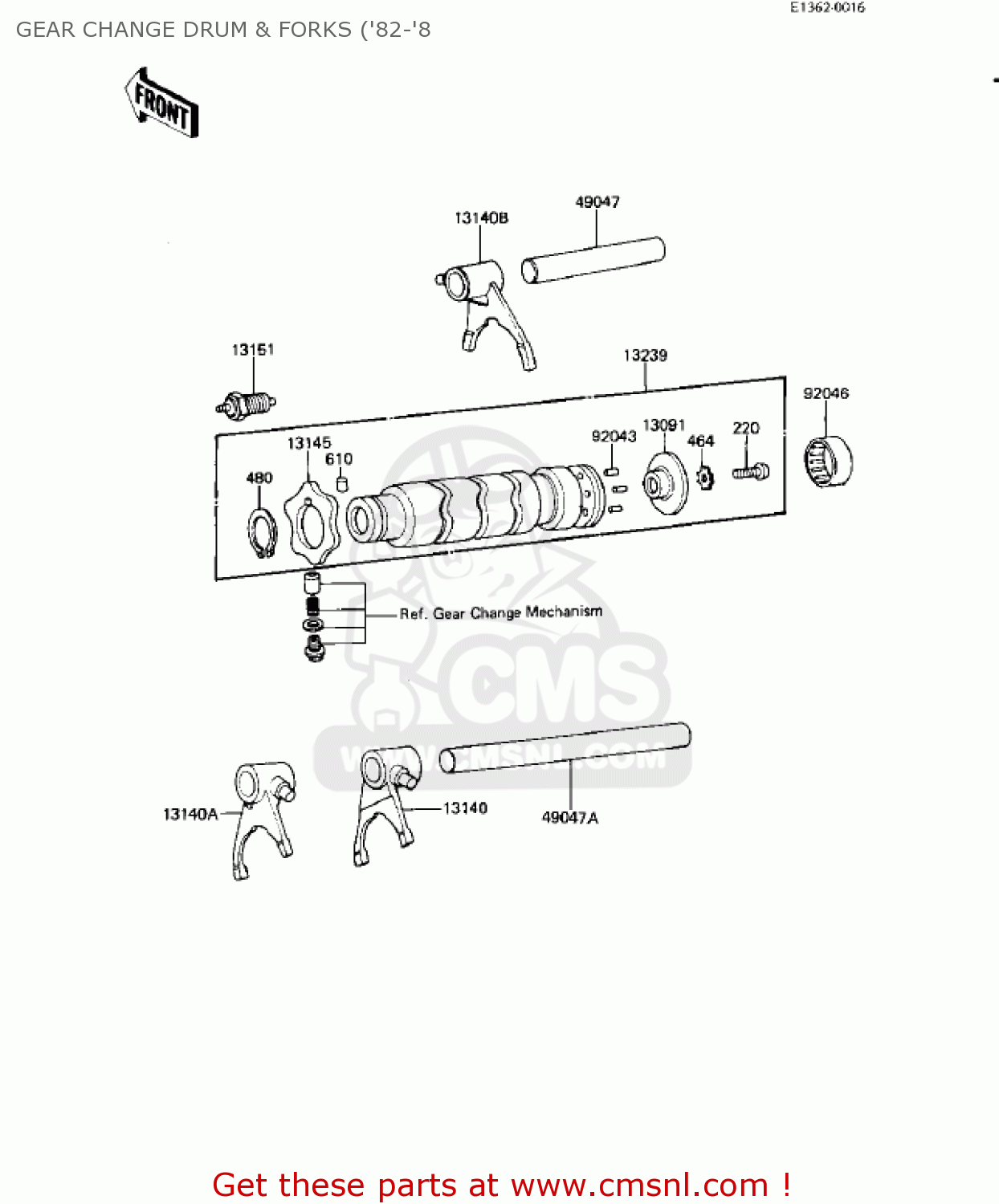

Gear change drum & forks ('82-'8 diagram KE125-A9 KE125 1982 USA CANADA

GEAR CHANGE DRUM & FORKS ('82-'8 KE125-A9 KE125 1982 USA CANADA
GEAR CHANGE DRUM & FORKS ('82-'8 KE125-A9 KE125 1982 USA CANADA
GEAR CHANGE DRUM & FORKS ('82-'8 KE125-A9 KE125 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
13091
13142017
ref: 13091
HOLDER,CHANGE DRUM PI
13142017
€ 8.00
13140
13140058
ref: 13140
FORK,SELECTR,LOW-4TH
13140058
€ 52.50
13140A
13140059
ref: 13140A
FORK-SHIFT,2ND&3RD
13140059
€ 61.50
13140B
13140060
ref: 13140B
FORK-SHIFT,5TH&TOP
13140060
€ 49.00
13145
131451058
ref: 13145
CAM-CHANGE DRUM
131451058
€ 15.00
13151
13151019
ref: 13151
SWITCH-COMP,NEUTRAL
13151019
€ 15.00
13239
13239018
ref: 13239
DRUM ASSY,GEAR SHIFT
€ 100.50
49047
13209014
ref: 49047
ROD-SHIFT,10X80
13209014
€ 8.50
49047A
13209014
ref: 49047A
ROD-SHIFT,10X80
13209014
€ 8.50
92043
92042030
ref: 92043
PIN,GEAR CHNGE DRUM
92042030
€ 2.50
92046
92046043
ref: 92046
BEARING-NEEDLE,36BDM4
92046043
€ 17.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
464
464H0600
ref: 464
WASHER-LOCK,6MM
464H0600
€ 0.50
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
