BRAKE PEDAL/TORQUE LINK ('82-'83

KE125-A9 KE125 1982 USA CANADA

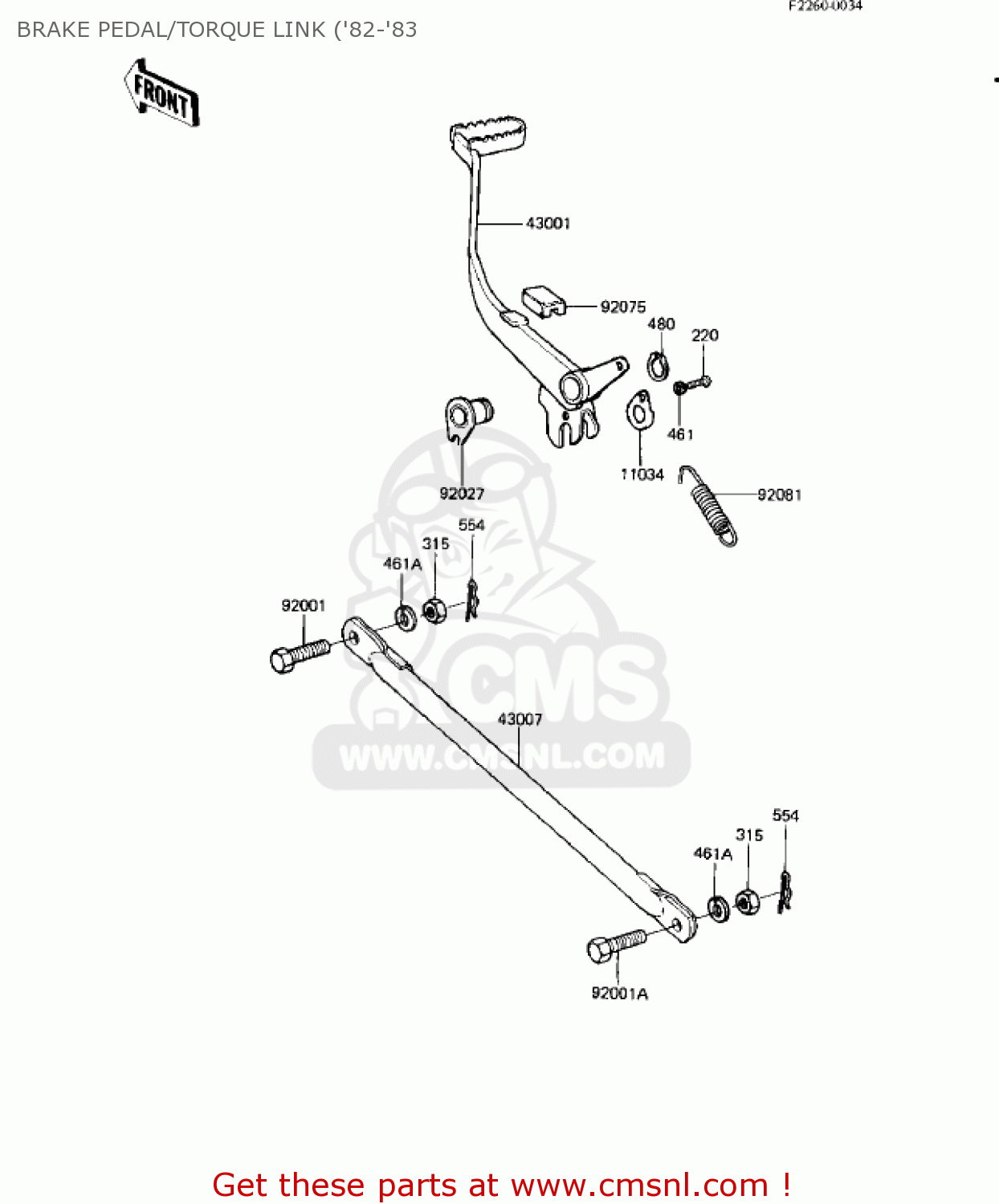

Brake pedal/torque link ('82-'83 diagram KE125-A9 KE125 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

11034

43081002
ref: 11034

BRACKET,BRAKE PEDAL

€ 2.50

43001

43001058
ref: 43001

LEVER-BRAKE,PEDAL

€ 30.50

43007

43007048
ref: 43007

ROD-TORQUE,RR

€ 15.50

92001

92003003
ref: 92001

BOLT-HEX HEAD,10X32

€ 4.00

92001A

92003017
ref: 92001A

BOLT-TRQ LINK 10X25

€ 3.50

92027

92027210
ref: 92027

COLLAR,BRAKE PEDAL

€ 21.00

92075

92075220
ref: 92075

DAMPER,BRAKE PEDAL

€ 2.50

92081

43005032
ref: 92081

SPRING,BRAKE PEDAL

€ 4.00

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

315

315B1000
ref: 315

NUT,10MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

480

480J2200
ref: 480

CIRCLIP-TYPE-C,22MM

€ 3.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00
